Fundamentnals of Arrays

Introduction

An array is a technique to represent items, also referred to as elements.

Practical Learning: Introducing Arrays

1. Start Microsoft Visual Studio
2. On the main menu, click File -> New -> Project...
3. In the New Project dialog box, click ASP.NET Web Application (.NET Framework). Change project Name to ToysStore1
4. Click OK
5. In the New ASP.NET Web Application dialog box, click the MVC icon and click OK
6. In the Solution Explorer, right-click Scripts -> Add -> TypeScript File
7. Type ToyExamination as the name of the file
8. Click OK

Creating an Array

The TypeScript language simply follows the rules of arrays of JavaScript. TypeScript doesn't add much to arrays but takes more advantage of them than JavaScript does. In JavaScript, there are various ways to create and manage an array but the primary formula to follow is:

var | let variable-name = [];

Start with the var or the let keyword followed by a name. The name follows the rules of names of variables. Assign the square brackets to the name and end the statement with a semicolon. Here is an example:

let numbers = [];

The Type of an Array

In JavaScript, an array can contain anything. In TypeScript, it is usually a good idea to control the types of items that an array must contain. To control that aspect of an array, you should specify its type. To do this, after the name of the variable, type a colon, the desired data type, and square brackets. Here is an example:

let itemsNumbers: number[] = [];

An Array with an Element

An array is some type of a list. At a minimum, you can create it with one item. To do this, put the item in the (right) square brackets. If the item is a number, type it. Here is an example:

let itemNumber : number[] = [975974];

If the array will contain a Boolean value, set the value as true or false. Here is an example:

let drivingPeopleCrazy: boolean[] = [true];

If the element is a symbol, a letter of a string, include it in single or double-quotes. Here are examples:

let itemName: string[] = ['Khaki Pants'];
let currency: string[] = ["$"];

An Array With Many Elements

Indeed, an array is a list of items. When creating an array, to specify its list of items, put them in the square brackets. Separate them with commas. The formula to follow is:

var | let variable-name : data-type = [eleament_1, eleament_2], ..., eleament_n];

Practical Learning: Creating Arrays

• In the empty document, type the following code:

  let numbers: number[] = [950835, 480583, 705804];
  let names: string[] = ["Fire Truck with Remote Control", '612 Pieces Building Kit', '3-Pack Dinosaur Set'];
  let prices: number[] = [25.50, 55.55, 44.75];
  let batteries: boolean[] = [true, false, false];

Accessing an Array

Introduction

Although an array is a list of items, you can access it as a whole. To do that, use the name of the array the same way you access a variable.

View: ItemInventory.cshtml

@{
    ViewBag.Title = "Thai Restaurant";
}

<h2>Thai Restaurant</h2>

<p id="food"></p>

<script src="~/Scripts/MenuPresentation.js"></script>

TypeScript File: MenuPresentation.ts

let thaiFood: string[] = ['Yum Neau', 'Curry Puffs', 'Tom Kha Soup', 'Shrimp Bikini'];

document.querySelector("#food").innerHTML = thaiFood.toString();

When you access an array by its name, the result is the list of elements separated by commas. The above code would produce:

Accessing an Element

The elements of an array are arranged in the order they are added to the list. Each item has an index which is its position. The indexes are zero-based. This means that the first item uses position 0. The second element is at position 1, and so on.

To access an element from an array, type the name of the array followed square brackets. In the square brackets, enter the zero-based index of the desired item. Here is an array:

View: FoodMenu.cshtml

@{
    ViewBag.Title = "Thai Restaurant";
}

<h2>Thai Restaurant</h2>

<ul style="list-style-type: none;">
    <li id="first"></li>
    <li id="second"></li>
    <li id="third"></li>
    <li id="fourth"></li>
</ul>

<script src="~/Scripts/MenuPresentation.js"></script>

TypeScript File: MenuPresentation.ts

let thaiFood: string[] = ['Yum Neau', 'Curry Puffs', 'Tom Kha Soup', 'Shrimp Bikini'];

document.querySelector("#first").innerHTML = thaiFood[0];
document.querySelector("#second").innerHTML = thaiFood[1];
document.querySelector("#third").innerHTML = thaiFood[2];
document.querySelector("#fourth").innerHTML = thaiFood[3];

This would produce:

Practical Learning: Accessing an Array

1. Change the ToyExamination.ts document as follows:

   let numbers: number[] = [950835, 480583, 705804];
   let names: string[] = ["Fire Truck with Remote Control", '612 Pieces Building Kit', '3-Pack Dinosaur Set'];
   let prices: number[] = [25.5, 55.55, 44.7];
   let batteries: boolean[] = [true, false, false];

   document.querySelector("#toy1Name").innerHTML = names[0];
   document.querySelector("#toy1Price").innerHTML = prices[0].toFixed(2);
   document.querySelector("#toy1Number").innerHTML = numbers[0].toString();
   document.querySelector("#toy1Batteries").innerHTML = batteries[0].toString();

   document.querySelector("#toy2Name").innerHTML = names[1];
   document.querySelector("#toy2Price").innerHTML = prices[1].toFixed(2);
   document.querySelector("#toy2Number").innerHTML = numbers[1].toString();
   document.querySelector("#toy2Batteries").innerHTML = batteries[1].toString();

   document.querySelector("#toy3Name").innerHTML = names[2];
   document.querySelector("#toy3Price").innerHTML = prices[2].toFixed(2);
   document.querySelector("#toy3Number").innerHTML = numbers[2].toString();
   document.querySelector("#toy3Batteries").innerHTML = batteries[2].toString();

2. In the Solution Explorer, expand Controllers and double-click HomeController.cs
3. Create a method named ToyPresentation as follows:

   using System.Web.Mvc;

   namespace ToysStore1.Controllers
   {
       public class HomeController : Controller
       {
           public ActionResult Index()
           {
               return View();
           }

           public ActionResult About()
           {
               ViewBag.Message = "Your application description page.";

               return View();
           }

           public ActionResult Contact()
           {
               ViewBag.Message = "Your contact page.";

               return View();
           }

           public ActionResult ToyPresentation() => View();
       }
   }

4. In the class, right-click ToyPresentation() -> Add View...
5. Make sure the View Name displays ToyPresentation.
   Click Add
6. Change the document as follows:

   @{
       ViewBag.Title = "Toys Presentation";
   }

   <h2>Toys Presentation</h2>

   <hr />

   <table style="width: 500px;">
       <tr>
           <td style="border: 1px solid #C0C0C0; width: 80px; font-weight: 600">Product #</td>
           <td style="border: 1px solid #C0C0C0; font-weight: 600">Toy Name/Description</td>
           <td style="border: 1px solid #C0C0C0; width: 60px; font-weight: 600">Price</td>
           <td style="border: 1px solid #C0C0C0; width: 140px; font-weight: 600">Require Batteries</td>
       </tr>
       <tr>
           <td style="border: 1px solid #C0C0C0;" id="toy1Number"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy1Name"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy1Price"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy1Batteries"></td>
       </tr>
       <tr>
           <td style="border: 1px solid #C0C0C0;" id="toy2Number"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy2Name"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy2Price"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy2Batteries"></td>
       </tr>
       <tr>
           <td style="border: 1px solid #C0C0C0;" id="toy3Number"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy3Name"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy3Price"></td>
           <td style="border: 1px solid #C0C0C0;" id="toy3Batteries"></td>
       </tr>
   </table>

   <script src="~/Scripts/ToyExamination.js"></script>

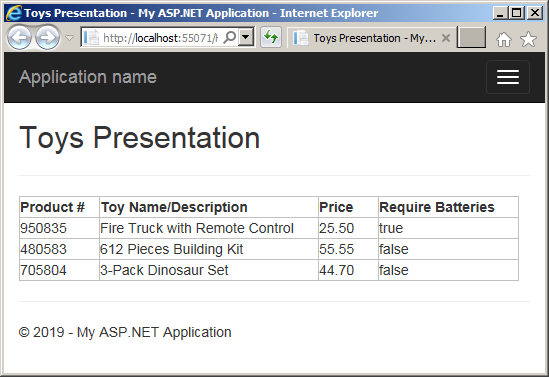

7. To execute the application and see the results, on the main menu, click Debug -> Start Without Debugging:



8. Close the form and return to your programming environment

An Undefined Element

When creating an array, if you don't want to specify an element, you can leave its placeholder empty. Here is an example:

var title = [ "Absence", , "Malice" ];

The element in the empty space is said to be undefined.

Primary Characteristics and Operations on Arrays

The Size of an Array

The size of an array is the number of elements it contains. It is also referred to as the length of the array.

Increasing an Array

In C and C-based languages, an array is a fixed number of elements in a list and by definition, you can neither add new items to it nor delete an item. JavaScript doesn't follow those rules. In JavaScript, at any time, you can add a new element to an array. To do this, type the name of the array and apply the square brackets to it. In the square brackets, enter an index equal to or higher than the length of the array. Then assign a new value. Here is an example:

View: FoodMenu.cshtml

@{
    ViewBag.Title = "Thai Restaurant";
}

<h2>Thai Restaurant: Food Menu</h2>

<ul style="list-style-type: none;">
    <li id="first"></li>
    <li id="second"></li>
    <li id="third"></li>
    <li id="fourth"></li>
    <li id="fifth"></li>
</ul>

<script src="~/Scripts/MenuPresentation.js"></script>

TypeScript File: MenuPresentation.ts

let thaiFood: string[] = ['Yum Neau', 'Curry Puffs', 'Tom Kha Soup', 'Shrimp Bikini'];

thaiFood[4] = "Chicken Cashew";

document.querySelector("#first").innerHTML = thaiFood[0];
document.querySelector("#second").innerHTML = thaiFood[1];
document.querySelector("#third").innerHTML = thaiFood[2];
document.querySelector("#fourth").innerHTML = thaiFood[3];
document.querySelector("#fifth").innerHTML = thaiFood[4];

This would produce:

Updating an Element

Updating an element consists of changing its value. This feature is available in all arrays of the C-based languages, including JavaScript. To update an element, type the name of the array and apply the square brackets to it. In the brackets, enter a positive index lower than the size of the array. Then assign the desired value. Here are examples:

let thaiFood: string[] = ['Yum Neau', 'Curry Puffs',
                          'Tom Kha Soup', 'Shrimp Bikini'];

thaiFood[4] = "Chicken Cashew";

thaiFood[3] = "Kao Pad Nam Prik Pao";
thaiFood[1] = 'Curried Noddles with Chicken';

document.querySelector("#first").innerHTML = thaiFood[0];
document.querySelector("#second").innerHTML = thaiFood[1];
document.querySelector("#third").innerHTML = thaiFood[2];
document.querySelector("#fourth").innerHTML = thaiFood[3];
document.querySelector("#fifth").innerHTML = thaiFood[4];

This would produce:

Arrays and Objects

An Array from the Properties of an Object

We saw that, to create an object in JavaScript, you add the curly brackets to a variable and create a list of the members in the body of the object. We saw that each property is created using the following formula:

element-name : element-value

Here is an example:

let truck = {
    itemNumber: 950835,
    name: "Fire Truck with Remote Control",
    price: 25.5,
    batteriesRequired: true
};

When you have added properties to an object, those properties are treated as elements of an array, and the array is an object. The property is made in two parts separated by a colon. The part on the left of the colon is the name of the property, also considered a key. The part on the right side is the value of the property. The name or key of a property/element can be almost anything. It can be an integer, a symbol, a string, etc. If the key is:

• An integer, provide it as such. In this case, that number would become the index of its value
• A floating-point number, simply provide it
• A Boolean value, provide it as true or false
• An alphabetical letter or a word that follows the rules of names of variables (starts with a letter or an underscore followed by letters, digits, or underscores), type it as such or include it in quotes (single or double)
• A non-alphanumeric symbol, (you must) include it in quotes (single or double)
• A string that doesn't follow the rules of variable names, (you must) include it in quotes (single or double)

Here are examples:

let toy = {
    a: 6,
    ToyName: "City Building Set",
    'Difficulty': "Mild",
    true : true,
    Category: "Building Blocks",
    "#": 137,
    0: 0803845,
    18.75: 18.75
};

To access the members of the object, if the key is:

• A letter or a word that uses the rules of names of variables, you can access it using the period operator applied to the object as we have done so far. If the key was included in quotes, don't use them when accessing the member
• A Boolean value, you can access it using the period operator

To access a member as done for an array, apply the square brackets to the object. Then:

• If the key is a number or a Boolean value, type it
• If the key is a character, a word, or a string, (you must) include it in quotes (single or double)

Here are examples:

TypeScript File: ToyExamination.ts:

let toy = {
    a: 6,
    ToyName: "City Building Set",
    'Difficulty': "Mild",
    true: true,
    Category: "Building Blocks",
    "#": 137,
    0: 803845,
    18.75: 18.75,
    false: "Requires Supervision"
};

document.querySelector("#age").innerHTML = toy.a.toString();
document.querySelector("#toyName").innerHTML = toy.ToyName;
document.querySelector("#category").innerHTML = toy.Category;
document.querySelector("#difficulty").innerHTML = toy.Difficulty;
document.querySelector("#pieces").innerHTML = toy["#"].toString();
document.querySelector("#itemNumber").innerHTML = toy[0].toString();
document.querySelector("#unitPrice").innerHTML = toy[18.75].toFixed(2);
document.querySelector("#availability").innerHTML = toy["true"].toString();
document.querySelector("#supervision").innerHTML = toy.false;

View: ToyPresentation.cshtml

@{
    ViewBag.Title = "Toy Presentation";
}

<h2>Toy Presentation</h2>

<hr />

<table>
    <tr>
        <td style="width:150px; font-weight: 600;">Item #:</td>
        <td><span id="itemNumber"></span></td>
    </tr>
    <tr>
        <td><b>Toy Name:</b></td>
        <td><span id="toyName"></span></td>
    </tr>
    <tr>
        <td><b>Category:</b></td>
        <td><span id="category"></span></td>
    </tr>
    <tr>
        <td><b>Age Range:</b></td>
        <td><span id="age"></span></td>
    </tr>
    <tr>
        <td><b>Unit Price:</b></td>
        <td><span id="unitPrice"></span></td>
    </tr>
    <tr>
        <td><b>Number of Pieces:</b></td>
        <td><span id="pieces"></span></td>
    </tr>
    <tr>
        <td><b>Difficulty Level:</b></td>
        <td><span id="difficulty"></span></td>
    </tr>
    <tr>
        <td><b>Currently Available:</b></td>
        <td><span id="availability"></span></td>
    </tr>
    <tr>
        <td><b>Warning:</b></td>
        <td><span id="supervision"></span></td>
    </tr>
</table>

<script src="~/Scripts/ToyExamination.js"></script>

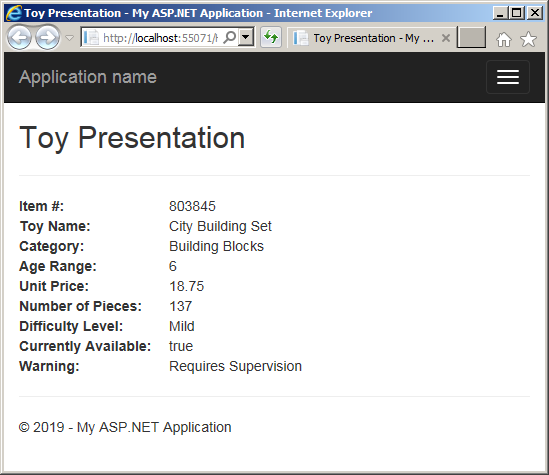

This would produce`

An Array as a Property

A property of an array can be created as an array. to do this, in the body of the object, specify the name of the property, a colon, and square brackets. If the value of the property is empty, leave the square brackets empty. If the array needs only one value, enter it. If the array must use many elements, put them in the square brackets and separate them with commas. Here is an example:

var toy = {
    itemNumber: 538405,
    toyName: "High Speed Train",
    requiresBatteries: true,
    categories: [ "Assembly", "Vehicles", "Reading", "Colors" ],
    unitPrice: 32.50
};

To access a property of the object, use any of the techniques we reviewed. If you want to access the whole array as one object, use the name of the property.

Of course, you can also create the object using the this object and apply the rules and suggestions of that keyword. Here is an example:

let toy = this;

this.itemNumber = 538405;
this.toyName    = "High Speed Train";
this.categories = ["Assembly", "Vehicles", "Reading", "Colors"];
this.unitPrice  = 32.50;

document.querySelector('.itemNumber').innerHTML = toy.itemNumber;
document.querySelector('.toyName').innerHTML = toy.toyName;
document.querySelector('.category').innerHTML = toy.categories;
document.querySelector('.unitPrice').innerHTML = toy.unitPrice.toFixed(2);

An Array of Objects

The element of an array can be an object. You can first create an object and add it to an array. Here is an example:

let cts = {
    itemNumber : 297495,
    toyName: "City Building Set",
    requiresBatteries: true,
    unitPrice: 18.75 };

var toys = [ cts ];

In the same way, you can create various objects, add each to an array, and separate them with commas. Here is an example:

let cts = {
    itemNumber : 297495,
    toyName: "City Building Set",
    requiresBatteries: true,
    unitPrice: 18.75 };

let hst = {
    itemNumber : 538405,
    toyName : "High Speed Train",
    unitPrice : 32.50 };

let wh = {
        itemNumber : 728174,
        toyName: "Wooden House",
        unitPrice: 24.92 };

let pas = {
        itemNumber : 379705,
        toyName: "Paper Animals Set",
        unitPrice: 44.86 };

let toys = [ hst , cts, pas, wh ];

Instead of first defining the objects, you can create them directly in the array. To do this, in the square brackets of the array, start each element with { and end it with }. Separate them with commas. Here is an example is:

let toys = [{
        itemNumber : 538405,
        toyName : "High Speed Train",
        unitPrice : 32.50
}, {
        itemNumber: 297495,
        toyName: "City Building Set",
        unitPrice: 18.75
}, {
        itemNumber: 379705,
        toyName: "Paper Animals Set",
        unitPrice: 44.86
}, {
        itemNumber: 728174,
        toyName: "Wooden House",
        unitPrice: 24.92 }
];

Once again, to access an element of an array, you can use the square brackets.

Practical Learning: Ending the Lesson

• Close your programming environment

Previous	Copyright © 2018-2019, FunctionX	Next
