Microsoft Visual Basic Application:
Musical Instrument Store


Introduction

A musical instrument store is a store that sells different types of items used to play, record, produce, and distribute music. The items to sell also include those used in a studio or computer applications.

This is a file-based application used by a musical instrument store. The items to sell and the customers orders are saved in a regular file. More details are given in our introduction to collections.

Windows Controls:

  • Labels
  • Buttons
  • List View
  • Picture Box
  • Dialog Boxes
  • Open File Dialog


Practical LearningPractical Learning: Starting a Custom Collection Class
  1. Start Microsoft Visual Basic and create a new Windows Forms Application named MusicalInstrumentStore1
  2. To create a dialog box, on the main menu, click Project -> Add Windows Form...
  3. Set the name to CategoryEditor and click Add

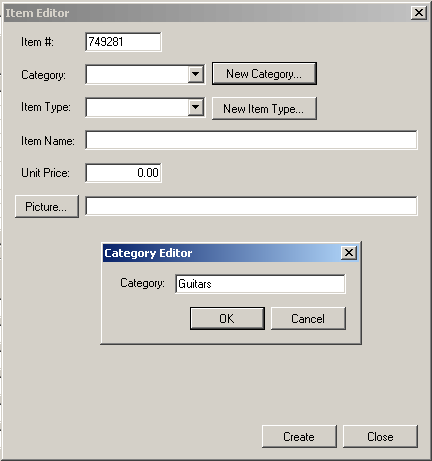

  4. Design the form as follows:

    Category
    Control Text Name Other Properties
    Label &Category:
    TextBox   txtCategory Modifiers: Public
    Button OK btnOK DialogResult: OK
    Button Cancel btnCancel DialogResult: Cancel
    Form Property Value
    FormBorderStyle FixedDialog
    Text Category Editor
    StartPosition CenterScreen
    AcceptButton btnOK
    CancelButton btnCancel
    MaximizeBox False
    MinimizeBox False
    ShowInTaskbar False
  5. To create a dialog box, on the main menu, click Project -> Add Windows Form...
  6. Set the name to TypeEditor and click Add
  7. Design the form as follows:

    Musical Store Item Type
    Control Text Name Other Properties
    Label &Item Type:
    TextBox   txtItemType Modifiers: Public
    Button OK btnOK DialogResult: OK
    Button Cancel btnCancel DialogResult: Cancel
    Form Property Value
    FormBorderStyle FixedDialog
    Text Type Editor
    StartPosition CenterScreen
    AcceptButton btnOK
    CancelButton btnCancel
    MaximizeBox False
    MinimizeBox False
    ShowInTaskbar False
  8. To create a dialog box, in the Solution Explorer, right-click MusicalInstrumentStore2 -> Add -> Windows Form...
  9. Set the name to ItemEditor and click Add

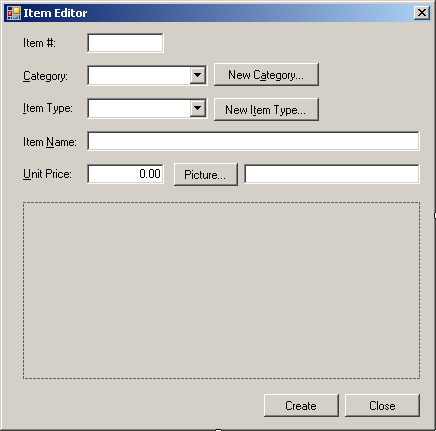

  10. Design the form as follows:

    Musical Store Item

    Control Text Name Other Properties
    Label &Item #:
    TextBox   txtItemNumber
    Label &Category:
    ComboBox   cbxCategories
    Button New C&ategory... btnNewCategory
    Label &Item Type:
    ComboBox   cbxItemTypes
    Button New &Item Type... btnNewItemType
    Label Item &Name:
    TextBox   txtItemName
    Label &Unit Price:
    TextBox 0.00 txtUnitPrice TextAlign: Right
    Button Picture... btnPicture
    TextBox   txtPicturePath
    PictureBox   pbxPicturePath SizeMode: Zoom
    Button Create btnCreate
    Button Close btnClose DialogResult: Cancel
    OpenFileDialog (Name): dlgOpen
    Title: Select Item Picture
    DefaultExt: jpg
    Filter: JPEG Files (*.jpg,*.jpeg)|*.jpg|GIF Files (*.gif)|*.gif|Bitmap Files (*.bmp)|*.bmp|PNG Files (*.png)|*.png
    Form Property Value
    FormBorderStyle FixedDialog
    Text Musical Instrument Store - Item Editor
    StartPosition CenterScreen
    MaximizeBox False
    MinimizeBox False
    ShowInTaskbar False
  11. Double-click the New Category button and implement it as follows:

    Private Sub btnNewCategoryClick(ByVal sender As System.Object,
                                     ByVal e As System.EventArgs)
                                     Handles btnNewCategory.Click
        Dim Editor As CategoryEditor = New CategoryEditor

        If Editor.ShowDialog() = DialogResult.OK Then
            If Editor.txtCategory.Text.Length > 0 Then
                Dim NewCategory As String = Editor.txtCategory.Text

                ' Make sure the category is not yet in the list
                If cbxCategories.Items.Contains(NewCategory) Then
                    MsgBox(NewCategory + " is already in the list")
                Else
                    ' Since this is a new category, add it to the combo box
                    cbxCategories.Items.Add(NewCategory)
                    ' Just in case the user wanted to use this new category
                    ' select it
                    cbxCategories.Text = NewCategory
                End If
            End If
        End If
End Sub
  12. In the Class name combo box, select btnNewItemType
  13. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnNewItemTypeClick(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnNewItemType.Click
        Dim Editor As TypeEditor = New TypeEditor

        If Editor.ShowDialog() = DialogResult.OK Then
            If Editor.txtItemType.Text.Length > 0 Then
                Dim NewType As String = Editor.txtItemType.Text

                ' Make sure the type is not yet in the list
                If cbxTypes.Items.Contains(NewType) Then
                    MsgBox("The list already contains " & NewType)
                Else
                    cbxTypes.Items.Add(NewType)
                    cbxTypes.Text = NewType
                End If
            End If
        End If
End Sub
  14. In the Class name combo box, select btnPicture
  15. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnPictureClick(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnPicture.Click
        If dlgPicture.ShowDialog() = DialogResult.OK Then
            txtPicturePath.Text = dlgPicture.FileName
            pbxStoreItem.Image = Image.FromFile(txtPicturePath.Text)
        End If
End Sub
  16. In the Solution Explorer, right-click Form1.cs and click Rename
  17. Type MusicStore.vb and press Enter twice (to display the form)

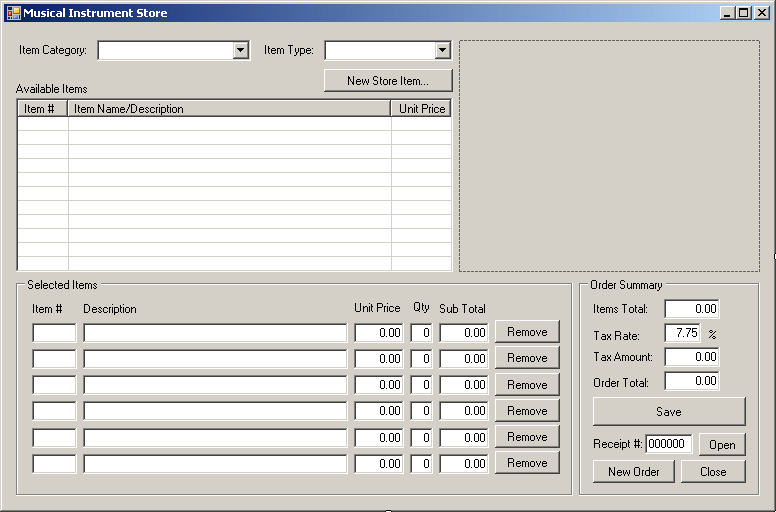

  18. Design the form as follows:

    Musical Instrument Store

    Control Text Name Other Properties
    Label Label Item Category:
    ComboBox ComboBox   cbxCategories
    Label Label Items Type:
    ComboBox ComboBox   cbxTypes
    Label Label Available Items
    Button Button New Store Item... btnNewStoreItem
    ListView ListView   lvwStoreItems View: Details
    FullRowSelect: True
    GridLines: True
    Columns
    (Name) Text TextAlign Width
    colItemNumber Item #
    colItemName Item Name/Description   320
    colUnitPrice Unit Price Right
    PictureBox   pbxStoreItem SizeMode: Zoom
    GroupBox GroupBox Selected Items
    Label Label Item #
    Label Label Description
    Label Label Unit Price
    Label Label Qty
    Label Label Sub Total
    TextBox TextBox   txtItemNumber1
    TextBox TextBox   txtDescription1
    TextBox TextBox 0.00 txtUnitPrice1 TextAlign: Right
    TextBox TextBox 0 txtQuantity1 TextAlign: Right
    TextBox TextBox 0.00 txtSubTotal1 TextAlign: Right
    Button Button Remove btnRemove1
    TextBox TextBox   txtItemNumber2
    TextBox TextBox   txtDescription2
    TextBox TextBox 0.00 txtUnitPrice2 TextAlign: Right
    TextBox TextBox 0 txtQuantity2 TextAlign: Right
    TextBox TextBox 0.00 txtSubTotal2 TextAlign: Right
    Button Button Remove btnRemove2
    TextBox TextBox   txtItemNumber3
    TextBox TextBox   txtDescription3
    TextBox TextBox 0.00 txtUnitPrice3 TextAlign: Right
    TextBox TextBox 0 txtQuantity3 TextAlign: Right
    TextBox TextBox 0.00 txtSubTotal3 TextAlign: Right
    Button Button Remove btnRemove3
    TextBox TextBox   txtItemNumber4
    TextBox TextBox   txtDescription4
    TextBox TextBox 0.00 txtUnitPrice4 TextAlign: Right
    TextBox TextBox 0 txtQuantity4 TextAlign: Right
    TextBox TextBox 0.00 txtSubTotal4 TextAlign: Right
    Button Button Remove btnRemove4
    TextBox TextBox   txtItemNumber5
    TextBox TextBox   txtDescription5
    TextBox TextBox 0.00 txtUnitPrice5 TextAlign: Right
    TextBox TextBox 0 txtQuantity5 TextAlign: Right
    TextBox TextBox 0.00 txtSubTotal5 TextAlign: Right
    Button Button Remove btnRemove5
    TextBox TextBox   txtItemNumber6
    TextBox TextBox   txtDescription6
    TextBox TextBox 0.00 txtUnitPrice6 TextAlign: Right
    TextBox TextBox 0 txtQuantity6 TextAlign: Right
    TextBox TextBox 0.00 txtSubTotal6 TextAlign: Right
    Button Button Remove btnRemove6
    GroupBox GroupBox Order Summary
    Label Label Items Total:
    TextBox TextBox 0.00 txtItemsTotal TextAlign: Right
    Label Label Tax Rate:
    TextBox TextBox 7.75   TextAlign: Right
    Label Label %
    Label Label Tax Amount:
    TextBox TextBox 0.00 txtTaxAmount TextAlign: Right
    Label Label Order Total:
    TextBox TextBox 0.00 txtOrderTotal TextAlign: Right
    Button Button Save btnSave
    Label Label Receipt #:
    TextBox TextBox 0.00 txtReceiptNumber
    Button Button &Open btnOpen
    Button Button New Order btnNewOrder
    Button Button Close btnClose
  19. To create a new class, in the Solution Explorer, right-click MusicalInstrumentStore2 -> Add -> Class...
  20. Set the Name to StoreItem and press Enter
  21. Change the file as follows:

    <Serializable()> Public Class StoreItem
    Private nbr As String
    Private cat As String
    Private tp As String
    Private nm As String
    Private prc As Double

    Public Property ItemNumber() As String
        Get
            Return nbr
        End Get
        Set(ByVal value As String)
            nbr = value
        End Set
    End Property

    Public Property Category() As String
        Get
            Return cat
        End Get
        Set(ByVal value As String)
            cat = value
        End Set
    End Property

    Public Property Type() As String
        Get
            Return tp
        End Get
        Set(ByVal value As String)
            tp = value
        End Set
    End Property

    Public Property ItemName() As String
        Get
            Return nm
        End Get
        Set(ByVal value As String)
            nm = value
        End Set
    End Property

    Public Property UnitPrice() As Double
        Get
            Return prc
        End Get
        Set(ByVal value As Double)
            prc = value
        End Set
    End Property

    Public Overrides Function Equals(ByVal Same As Object) As Boolean
        If (nbr = Same.nbr) And
                (cat = Same.cat) And
                (tp = Same.tp) And
                (nm = Same.nm) And
                (prc = Same.prc) Then
            Return True
        Else
            Return False
        End If
    End Function

    Public Sub New()
        nbr = "000000"
        cat = "Accessories"
        tp = "Accessories"
        nm = "Unknown"
        prc = 0.0
    End Sub

    Public Sub StoreItem(ByVal itmNumber As String)
        nbr = itmNumber
        cat = "Accessories"
        tp = "Accessories"
        nm = "Unknown"
        prc = 0.0
    End Sub

    Public Sub New(ByVal itmNumber As String, ByVal strCategory As String,
                   ByVal strType As String, ByVal strName As String,
                   ByVal dPrice As Double)
        nbr = itmNumber
        cat = strCategory
        tp = strType
        nm = strName
        prc = dPrice
    End Sub
End Class
  22. Save the file
  23. To create a new class, in the Class View, right-click MusicalInstrumentStore2 -> Add -> Class...
  24. Set the Name to StoreItems and press Enter
  25. Click the right side of the Public Class StoreItems line and press Enter
  26. Type Implements IList and press Enter.
    Notice that a complete skeleton code has been generated
  27. Change the file as follows:

    <Serializable()> Public Class StoreItems
    Implements IList

    Private Counter As Integer
    Private Items() As Object = New Object

    Public Sub New()
        Counter = 0
    End Sub

    Public Sub CopyTo(ByVal array As System.Array,
                      ByVal index As Integer)
                      Implements System.Collections.ICollection.CopyTo

    End Sub

    Public ReadOnly Property Count() As Integer
                        Implements System.Collections.ICollection.Count
        Get
            Return Counter
        End Get
    End Property

    Public ReadOnly Property IsSynchronized() As Boolean
                Implements System.Collections.ICollection.IsSynchronized
        Get
            Return False
        End Get
    End Property

    Public ReadOnly Property SyncRoot() As Object
                Implements System.Collections.ICollection.SyncRoot
        Get
            Return Me
        End Get
    End Property

    Public Function GetEnumerator() As System.Collections.IEnumerator
                Implements System.Collections.IEnumerable.GetEnumerator
        Return Nothing
    End Function

    ' This method is used to add a new item to the collection
    Public Function Add(ByVal value As Object) As Integer
                    Implements System.Collections.IList.Add

    End Function

    ' This methods deletes all items from the collection
    Public Sub Clear() Implements System.Collections.IList.Clear

    End Sub

    ' This method is used to find out whether the item
    ' passed as argument exists in the collection
    Public Function Contains(ByVal value As Object) As Boolean
                    Implements System.Collections.IList.Contains

    End Function

    ' This method is used to check whether the item passed as
    ' argument exists in the collection. If so, it returns its index
    Public Function IndexOf(ByVal value As Object) As Integer
                    Implements System.Collections.IList.IndexOf

    End Function

    ' This method can be used to insert an item at
    ' a certain position inside the collection
    Public Sub Insert(ByVal index As Integer, ByVal value As Object)
                Implements System.Collections.IList.Insert

    End Sub

    Public ReadOnly Property IsFixedSize() As Boolean Implements
                             System.Collections.IList.IsFixedSize
        Get

        End Get
    End Property

    Public ReadOnly Property IsReadOnly() As Boolean
                Implements System.Collections.IList.IsReadOnly
        Get

        End Get
    End Property

    Default Public Property Item(ByVal index As Integer) As Object
                    Implements System.Collections.IList.Item
        Get
            Return Nothing
        End Get
        Set(ByVal value As Object)

        End Set
    End Property

    ' This method first checks the existence of the item passed
    '  as argument. If the item exists, the method deletes it
    Public Sub Remove(ByVal value As Object)
                Implements System.Collections.IList.Remove

    End Sub

    ' This method is used to delete the item positioned
    ' at the index passed as argument
    Public Sub RemoveAt(ByVal index As Integer)
                Implements System.Collections.IList.RemoveAt

    End Sub
End Class
  28. Save the file
  29. Change the IsFixedSize() method as follows:

    Public ReadOnly Property IsFixedSize() As Boolean Implements
                             System.Collections.IList.IsFixedSize
        Get
            Return False
        End Get
End Property
  30. Save the file
  31. Change the IsReadOnly method as follows:

    Public ReadOnly Property IsReadOnly() As Boolean
                Implements System.Collections.IList.IsReadOnly
        Get
            Return False
        End Get
End Property
  32. Save the file
  33. Change the code of the StoreItems.Add() method as follows:

    ' This method is used to add a new item to the collection
    Public Function Add(ByVal value As Object) As Integer
                    Implements System.Collections.IList.Add
        ' Find out if the array is getting too small for the next item(s)
        ' If it is, increase its size by 5
        If Count = Items.Length Then
            Array.Resize(Items, Items.Length + 5)
        End If

        If Counter < Items.Length Then
            Items(Counter) = value
            Counter = Counter + 1
            Return Counter - 1
        Else
            Return -1
        End If
End Function
  34. In the Class View, double-click ItemEditor
  35. In the top section of the file, add the following:

    Imports System.IO
Imports System.Runtime.Serialization.Formatters.Binary

Public Class ItemEditor
  36. In the Solution Explorer, right-click ItemEditor.vb and click View Code
  37. In the Class name combo box, select btnCreate
  38. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnCreateClick(ByVal sender As Object,
                                ByVal e As System.EventArgs)
                                Handles btnCreate.Click
        Dim StreamStoreItem As FileStream
        Dim Item As StoreItem = New StoreItem
        Dim items As StoreItems = New StoreItems
        Dim FormatterStoreItem As BinaryFormatter = New BinaryFormatter

        ' If this directory doesn't exist, create it
        Directory.CreateDirectory("C:\Musical Instrument Store")
        ' This is the file that holds the list of items
        Dim Filename As String = "C:\Musical Instrument Store\StoreItems.mis"

        ' Create a random number that will be used to identify the item
        Dim RndNumber As Random = New Random
        txtItemNumber.Text = RndNumber.Next(100000, 999999)

        ' Make sure the user had selected a category
        If cbxCategories.Text.Length = 0 Then
            MsgBox("You must specify the item's category")
            cbxCategories.Focus()
            Exit Sub
        End If

        ' Make sure the user had selected a type
        If cbxTypes.Text.Length = 0 Then
            MsgBox("You must specify the item's type")
            cbxTypes.Focus()
            Exit Sub
        End If

        ' Make sure the user had entered a name/description
        If txtItemName.Text.Length = 0 Then
            MsgBox("You must enter the name (or a " &
                   "short description) for the item")
            txtItemName.Focus()
            Exit Sub
        End If

        ' Make sure the user had typed a price for the item
        If txtUnitPrice.Text.Length = 0 Then
            MsgBox("You must enter the price of the item")
            txtUnitPrice.Focus()
            Exit Sub
        End If

        ' Before saving the new item, find out if there was
        ' already a file that holds the list of items
        ' If that file exists, open it and store its items
        ' in our StoreItems list
        If File.Exists(Filename) Then
            StreamStoreItem = New FileStream(Filename,
                                          FileMode.Open,
                                          FileAccess.Read,
                                          FileShare.Read)

        Try
            ' Retrieve the list of items from file
            items = CType(FormatterStoreItem.Deserialize(StreamStoreItem),
				StoreItems)
        Finally
            StreamStoreItem.Close()
        End Try
    End If

        ' Create the music item
        item.ItemNumber = txtItemNumber.Text
        item.Category = cbxCategories.Text
        item.Type = cbxTypes.Text
        item.ItemName = txtItemName.Text
        item.UnitPrice = cdbl(txtUnitPrice.Text)

        ' Call the Add method of our collection class to add the item
        items.Add(item)

        ' Save the list
        StreamStoreItem = New FileStream(Filename,
                                      FileMode.Create,
                                      FileAccess.Write,
                                      FileShare.Write)

        Try
            FormatterStoreItem.Serialize(StreamStoreItem, items)

            If txtPicturePath.Text.Length <> 0 Then
                Dim flePicture As FileInfo = New FileInfo(txtPicturePath.Text)
                flePicture.CopyTo("C:\Musical Instrument Store\" &
                                  txtItemNumber.Text & flePicture.Extension)
            End If

            ' After saving the item, reset the form
            txtItemNumber.Text = RndNumber.Next(100000, 999999).ToString()
            cbxCategories.Text = ""
            cbxTypes.Text = ""
            txtItemName.Text = ""
            txtUnitPrice.Text = "0.00"
            txtPicturePath.Text = ""
            pbxStoreItem.Image = Nothing
        Finally
            StreamStoreItem.Close()
        End Try
End Sub
  39. Save the file
  40. In the Class View, click StoreItems
  41. In the lower part of the Class View, double-click Item(Integer) As Object
  42. Change the code of the property as follows:

    Default Public Property Item(ByVal index As Integer) As Object
                    Implements System.Collections.IList.Item
        Get
            Return Items(index)
        End Get
        Set(ByVal value As Object)
            Items(index) = value
        End Set
End Property
  43. In the Solution Explorer, right-click ItemEditor.vb and click View Code
  44. In the Class name combo box, select (ItemEditor Events)
  45. In the Method Name combo box, select Load and implement the event as follows:

    Private Sub ItemEditorLoad(ByVal sender As Object,
                                ByVal e As System.EventArgs) Handles Me.Load
        Dim i As Integer
        Dim RndNumber As Random = New Random

        ' Since all values seem ready, prepare to process the item
        Dim Item As StoreItem = New StoreItem
        Dim Items As StoreItems = New StoreItems
        Dim FormatterStoreItem As BinaryFormatter = New BinaryFormatter

        ' This is the file that holds the list of items
        Dim Filename As String = "C:\Musical Instrument Store\StoreItems.mis"

        If File.Exists(Filename) Then
            Dim StreamStoreItem As FileStream = New FileStream(Filename,
                                                     FileMode.Open,
                                                     FileAccess.Read,
                                                     FileShare.Read)

            Try
                ' Retrieve the list of items from file
                Items = CType(FormatterStoreItem.Deserialize(StreamStoreItem),
				StoreItems)

                ' Display the categories in the combo box
                For i = 0 To Items.Count - 1
                    Item = CType(Items(i), StoreItem)

                    If Not cbxCategories.Items.Contains(Item.Category) Then
                        cbxCategories.Items.Add(Item.Category)
                    End If
                Next

                ' Display the items types in the combo box
                For i = 0 To Items.Count - 1
                    Item = CType(Items(i), StoreItem)

                    If Not cbxTypes.Items.Contains(Item.Type) Then
                        cbxTypes.Items.Add(Item.Type)
                    End If
                Next
            Finally
                StreamStoreItem.Close()
            End Try
        Else
            ' Create a random number that will be used
            ' to identify the item

            txtItemNumber.Text = RndNumber.Next(100000, 999999).ToString()

            ' Make sure the user had selected a category
            cbxCategories.Text = ""
            cbxTypes.Text = ""
        End If
End Sub
  46. In the Solution Explorer, right-click MusicStore.vb and click View Code
  47. Make the following changes:

    Imports System.IO
Imports System.Runtime.Serialization.Formatters.Binary

Public Class MusicStore
    Private Items As StoreItems
    Private iFilename As Integer
    Private IsNewCustomerOrder As Boolean

    Private Sub LoadMusicStore()
        ' Since all values seem ready, prepare to process the item
        Dim i As Integer

        items = New StoreItems
        Dim FormatterStoreItem As BinaryFormatter = New BinaryFormatter

        ' This is the file that holds the list of items
        Dim Filename As String = "C:\Musical Instrument Store\StoreItems.mis"

        If File.Exists(Filename) Then
            Dim StreamStoreItem As FileStream = New FileStream(Filename,
                                                           FileMode.Open,
                                                           FileAccess.Read,
                                                           FileShare.Read)

            Try
                ' Retrieve the list of items from file
             Items = CType(FormatterStoreItem.Deserialize(StreamStoreItem),
			      StoreItems)

                ' Display the categories in the combo box
                For i = 0 To items.Count - 1
                    Dim item As StoreItem = CType(items(i), StoreItem)

                    If Not cbxCategories.Items.Contains(item.Category) Then
                        cbxCategories.Items.Add(item.Category)
                    End If
                Next
            Finally
                StreamStoreItem.Close()
            End Try
        End If
    End Sub
End Class
  48. In the Class Name combo box, select btnNewStoreItem
  49. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnNewStoreItemClick(ByVal sender As Object,
                                      ByVal e As System.EventArgs)
                                      Handles btnNewStoreItem.Click
        Dim Editor As ItemEditor = New ItemEditor

        ' Create a random number to get it ready for
        ' the user creating a new store item
        Dim RndNumber As Random = New Random
        Editor.txtItemNumber.Text = RndNumber.Next(100000, 999999)

        If Editor.ShowDialog() = DialogResult.Cancel Then
            LoadMusicStore()
        End If
End Sub
  50. In the Class Name combo box, select cbxCategories
  51. In the Method Name combo box, select SelectedIndexChanged and implement the event as follows:

    Private Sub cbxCategoriesSelectedIndexChanged(ByVal sender As Object,
                                          ByVal e As System.EventArgs)
                              Handles cbxCategories.SelectedIndexChanged
        Dim i As Integer
        cbxTypes.Items.Clear()
        cbxTypes.Text = ""
        lvwStoreItems.Items.Clear()
        pbxStoreItem.Image = Nothing

        ' If the current store inventory is empty, don't do anything
        If Items.Count = 0 Then Exit Sub

        ' Get the item selected in the combo box
        Dim strCategory = CStr(cbxCategories.SelectedItem)

        ' Before doing anything, remove everything from the Types combo box
        ' This eliminates the possibility of adding the same item(s) that
        ' would exist already in the combo box
        cbxTypes.Items.Clear()

        ' Check each item from the store inventory
        For i = 0 To Items.Count - 1
            ' Get the current item from the store inventory
            Dim Item = CType(Items(i), StoreItem)

            ' If that item is the same as the one selected in the combo box...
            If Item.Category = strCategory Then
                ' ... get ready to add its corresponding type
                ' But check first that the type is not
                ' already in the Types combo box
                ' If it's not yet there, then add it
                If Not cbxTypes.Items.Contains(Item.Type) Then
                    cbxTypes.Items.Add(Item.Type)
                End If
            End If
        Next
End Sub
  52. In the Class Name combo box, select cbxTypes
  53. In the Method Name combo box, select SelectedIndexChanged and implement the event as follows:

    Private Sub cbxTypesSelectedIndexChanged(ByVal sender As Object,
                                          ByVal e As System.EventArgs)
                                          Handles cbxTypes.SelectedIndexChanged
        Dim i As Integer
        cbxTypes.Text = ""
        pbxStoreItem.Image = Nothing
        Dim lviStoreItem As ListViewItem

        ' If the current store inventory is empty, don't do anything
        If Items.Count = 0 Then Exit Sub

        ' Get the item selected in the Categories combo box
        Dim strCategory As String = CStr(cbxCategories.SelectedItem)
        ' Get the item selected in theTypes combo box
        Dim strType As String = CStr(cbxTypes.SelectedItem)

        ' Empty the Available Items list view because
        ' we are about to (re)populate it
        lvwStoreItems.Items.Clear()

        ' Check each item from the store inventory
        For i = 0 To Items.Count - 1
            ' Get the current item from the inventory
            Dim Item As StoreItem = CType(Items(i), StoreItem)

            ' If the category of that item is the same as the one
            ' selected in the combo box and the type of that item is
            ' the same as the one selected in the Types combo box...
            If (Item.Category = strCategory) And
                (Item.Type = strType) Then
                ' ... then display it in the Available Items list view
                lviStoreItem = lvwStoreItems.Items.Add(Item.ItemNumber)
                lviStoreItem.SubItems.Add(Item.ItemName)
                lviStoreItem.SubItems.Add(FormatNumber(Item.UnitPrice))
            End If
        Next
End Sub
  54. In the Class Name combo box, select lvwStoreItems
  55. In the Method Name combo box, select SelectedIndexChanged and implement the event as follows:

    Private Sub lvwStoreItemsSelectedIndexChanged(ByVal sender As Object,
                                               ByVal e As System.EventArgs)
                                    Handles lvwStoreItems.SelectedIndexChanged
        Dim i As Integer
        Dim strItemNumber As String
        Dim Item As StoreItem = New StoreItem

        If (lvwStoreItems.SelectedItems.Count = 0) Or
        (lvwStoreItems.SelectedItems.Count > 1) Then
            Exit Sub
        End If

        strItemNumber = lvwStoreItems.SelectedItems(0).SubItems(0).Text

        For i = 0 To Items.Count - 1
            Dim itm As StoreItem = CType(Items(i), StoreItem)
            If itm.ItemNumber = strItemNumber Then
                Item = itm
            End If
        Next

        ' Make a list of the picture files
        Dim strDirectory As String = "C:\Musical Instrument Store"
        Dim dirStoreItems As DirectoryInfo = New DirectoryInfo(strDirectory)
        Dim PictureFiles() As FileInfo = dirStoreItems.GetFiles("*.jpg")

        ' Look for a file that holds the same name as the item number
        For Each fle As FileInfo In PictureFiles
            ' Get the name of the file without its extension
            Dim fwe As String = Path.GetFileNameWithoutExtension(fle.FullName)

            If fwe = strItemNumber Then
                pbxStoreItem.Image = Image.FromFile(strDirectory &
                                     "\" + Item.ItemNumber + ".jpg")
            End If
        Next
End Sub
  56. Under the above End Sub line, create a new procedure as follows;

    ' This function calculates the current total order
' and updates the order
Private Sub CalculateOrder()
        Dim SubTotal1 As Double
        Dim SubTotal2 As Double
        Dim SubTotal3 As Double
        Dim SubTotal4 As Double
        Dim SubTotal5 As Double
        Dim SubTotal6 As Double
        Dim ItemsTotal As Double
        Dim TaxRate As Double
        Dim TaxAmount As Double
        Dim OrderTotal As Double

        ' Retrieve the value of each sub total
        Try
            SubTotal1 = CDbl(txtSubTotal1.Text)
        Catch
            MsgBox("Invalid Value")
        End Try

        Try
            SubTotal2 = CDbl(txtSubTotal2.Text)
        Catch
            MsgBox("Invalid Value")
        End Try

        Try
            SubTotal3 = CDbl(txtSubTotal3.Text)
        Catch
            MsgBox("Invalid Value")
        End Try

        Try
            SubTotal4 = CDbl(txtSubTotal4.Text)
        Catch
            MsgBox("Invalid Value")
        End Try

        Try
            SubTotal5 = CDbl(txtSubTotal5.Text)
        Catch
            MsgBox("Invalid Value")
        End Try

        Try
            SubTotal6 = CDbl(txtSubTotal6.Text)
        Catch
            MsgBox("Invalid Value")
        End Try

        ' Calculate the total value of the sub totals
        ItemsTotal = SubTotal1 + SubTotal2 + SubTotal3 +
                     SubTotal4 + SubTotal5 + SubTotal6

        ' Display the total order in the appropriate text box
        txtItemsTotal.Text = FormatNumber(ItemsTotal)

        Try
            TaxRate = CDbl(txtTaxRate.Text)
        Catch
            MsgBox("Invalid Tax Rate")
            txtTaxRate.Text = "7.75"
            txtTaxRate.Focus()
        End Try

        TaxAmount = ItemsTotal * TaxRate / 100
        OrderTotal = ItemsTotal + TaxAmount

        txtTaxAmount.Text = FormatNumber(TaxAmount)
        txtOrderTotal.Text = FormatNumber(OrderTotal)
End Sub
  57. In the Class Name combo box, select txtItemNumber1
  58. In the Method Name combo box, select Leave and implement the event as follows:

    Private Sub txtItemNumber1Leave(ByVal sender As Object,
                                     ByVal e As System.EventArgs)
                                     Handles txtItemNumber1.Leave
        Dim ItemFound As Boolean = False
        Dim Item As StoreItem = New StoreItem
        Dim strItemNumber As String = txtItemNumber1.Text

        For Each Itm As StoreItem In Items
            If Itm.ItemNumber = strItemNumber Then
                ItemFound = True
                txtDescription1.Text = Itm.ItemName
                txtUnitPrice1.Text = Itm.UnitPrice.ToString("F")
                txtQuantity1.Text = "1"
                txtSubTotal1.Text = Itm.UnitPrice.ToString("F")

                CalculateOrder()
            End If
        Next

        If ItemFound = False Then
            MsgBox("There is no store item with that number")
            txtDescription1.Text = ""
            txtUnitPrice1.Text = "0.00"
            txtQuantity1.Text = "0"
            txtSubTotal1.Text = "0.00"
        End If
End Sub
  59. Under the above End Sub line, define the following event

    Public Sub Item1Leave(ByVal sender As Object,
                          ByVal e As EventArgs)
                          Handles txtUnitPrice1.Leave, txtQuantity1.Leave
        Dim Quantity As Integer
        Dim UnitPrice As Double
        Dim SubTotal As Double

        ' Get the quantity of the current item
        Try
            Quantity = CInt(txtQuantity1.Text)
        Catch
            MsgBox("Invalid quantity value for item 1")
        End Try

        ' Get the unit price of the current item
        Try
            UnitPrice = CDbl(txtUnitPrice1.Text)
        Catch
            MsgBox("Invalid unit price for item 1")
        End Try

        ' Calculate the current sub total
        SubTotal = Quantity * UnitPrice

        ' Display the new sub total in the corresponding text box
        txtSubTotal1.Text = FormatNumber(SubTotal)

        btnRemove1.Enabled = True

        ' Update the order
        CalculateOrder()
End Sub
  60. In the Class Name combo box, select btnRemove1
  61. On the form, double-click the top Remove button and implement the event as follows:

    Private Sub btnRemove1Click(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnRemove1.Click
        txtItemNumber1.Text = ""
        txtDescription1.Text = ""
        txtUnitPrice1.Text = "0.00"
        txtQuantity1.Text = "0"
        txtSubTotal1.Text = "0.00"
        btnRemove1.Enabled = False

        CalculateOrder()
End Sub
  62. Complete the file as follows:

    Public Sub Item2Leave(ByVal sender As Object,
                          ByVal e As EventArgs)
                          Handles txtUnitPrice2.Leave, txtQuantity2.Leave
        Dim Quantity As Integer
        Dim UnitPrice As Double
        Dim SubTotal As Double

        ' Get the quantity of the current item
        Try
            Quantity = CInt(txtQuantity2.Text)
        Catch
            MsgBox("Invalid quantity value for item 2")
        End Try

        ' Get the unit price of the current item
        Try
            UnitPrice = CDbl(txtUnitPrice2.Text)
        Catch
            MsgBox("Invalid unit price for item 2")
        End Try

        ' Calculate the current sub total
        SubTotal = Quantity * UnitPrice

        ' Display the new sub total in the corresponding text box
        txtSubTotal2.Text = SubTotal.ToString()

        btnRemove2.Enabled = True

        ' Update the order
        CalculateOrder()
    End Sub

    Private Sub btnRemove2Click(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnRemove2.Click
        txtItemNumber2.Text = ""
        txtDescription2.Text = ""
        txtUnitPrice2.Text = "0.00"
        txtQuantity2.Text = "0"
        txtSubTotal2.Text = "0.00"
        btnRemove2.Enabled = False

        CalculateOrder()
    End Sub

    Public Sub Item3Leave(ByVal sender As Object,
                          ByVal e As EventArgs)
                          Handles txtUnitPrice3.Leave, txtQuantity3.Leave
        Dim Quantity As Integer
        Dim UnitPrice As Double
        Dim SubTotal As Double

        ' Get the quantity of the current item
        Try
            Quantity = CInt(txtQuantity3.Text)
        Catch
            MsgBox("Invalid quantity value for item 3")
        End Try

        ' Get the unit price of the current item
        Try
            UnitPrice = CDbl(txtUnitPrice3.Text)
        Catch
            MsgBox("Invalid unit price for item 3")
        End Try

        ' Calculate the current sub total
        SubTotal = Quantity * UnitPrice

        ' Display the new sub total in the corresponding text box
        txtSubTotal3.Text = SubTotal.ToString()

        btnRemove3.Enabled = True

        ' Update the order
        CalculateOrder()
    End Sub

    Private Sub btnRemove3Click(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnRemove3.Click
        txtItemNumber3.Text = ""
        txtDescription3.Text = ""
        txtUnitPrice3.Text = "0.00"
        txtQuantity3.Text = "0"
        txtSubTotal3.Text = "0.00"
        btnRemove3.Enabled = False

        CalculateOrder()
    End Sub

    Public Sub Item4Leave(ByVal sender As Object,
                          ByVal e As EventArgs)
                          Handles txtUnitPrice4.Leave, txtQuantity4.Leave
        Dim Quantity As Integer
        Dim UnitPrice As Double
        Dim SubTotal As Double

        ' Get the quantity of the current item
        Try
            Quantity = CInt(txtQuantity4.Text)
        Catch
            MsgBox("Invalid quantity value for item 4")
        End Try

        ' Get the unit price of the current item
        Try
            UnitPrice = CDbl(txtUnitPrice4.Text)
        Catch
            MsgBox("Invalid unit price for item 4")
        End Try

        ' Calculate the current sub total
        SubTotal = Quantity * UnitPrice

        ' Display the new sub total in the corresponding text box
        txtSubTotal4.Text = SubTotal.ToString()

        btnRemove4.Enabled = True

        ' Update the order
        CalculateOrder()
    End Sub

    Private Sub btnRemove4Click(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnRemove4.Click
        txtItemNumber4.Text = ""
        txtDescription4.Text = ""
        txtUnitPrice4.Text = "0.00"
        txtQuantity4.Text = "0"
        txtSubTotal4.Text = "0.00"
        btnRemove4.Enabled = False

        CalculateOrder()
    End Sub

    Public Sub Item5Leave(ByVal sender As Object,
                          ByVal e As EventArgs)
                          Handles txtUnitPrice5.Leave, txtQuantity5.Leave
        Dim Quantity As Integer
        Dim UnitPrice As Double
        Dim SubTotal As Double

        ' Get the quantity of the current item
        Try
            Quantity = CInt(txtQuantity5.Text)
        Catch
            MsgBox("Invalid quantity value for item 5")
        End Try

        ' Get the unit price of the current item
        Try
            UnitPrice = CDbl(txtUnitPrice5.Text)
        Catch
            MsgBox("Invalid unit price for item 5")
        End Try

        ' Calculate the current sub total
        SubTotal = Quantity * UnitPrice

        ' Display the new sub total in the corresponding text box
        txtSubTotal5.Text = SubTotal.ToString()

        btnRemove5.Enabled = True

        ' Update the order
        CalculateOrder()
    End Sub

    Private Sub btnRemove5Click(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnRemove5.Click
        txtItemNumber5.Text = ""
        txtDescription5.Text = ""
        txtUnitPrice5.Text = "0.00"
        txtQuantity5.Text = "0"
        txtSubTotal5.Text = "0.00"
        btnRemove5.Enabled = False

        CalculateOrder()
    End Sub

    Public Sub Item6Leave(ByVal sender As Object,
                          ByVal e As EventArgs)
                          Handles txtUnitPrice6.Leave, txtQuantity6.Leave
        Dim Quantity As Integer
        Dim UnitPrice As Double
        Dim SubTotal As Double

        ' Get the quantity of the current item
        Try
            Quantity = CInt(txtQuantity6.Text)
        Catch
            MsgBox("Invalid quantity value for item 6")
        End Try

        ' Get the unit price of the current item
        Try
            UnitPrice = CDbl(txtUnitPrice6.Text)
        Catch
            MsgBox("Invalid unit price for item 6")
        End Try

        ' Calculate the current sub total
        SubTotal = Quantity * UnitPrice

        ' Display the new sub total in the corresponding text box
        txtSubTotal6.Text = SubTotal.ToString()

        btnRemove6.Enabled = True

        ' Update the order
        CalculateOrder()
    End Sub

    Private Sub btnRemove6Click(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles btnRemove6.Click
        txtItemNumber6.Text = ""
        txtDescription6.Text = ""
        txtUnitPrice6.Text = "0.00"
        txtQuantity6.Text = "0"
        txtSubTotal6.Text = "0.00"
        btnRemove6.Enabled = False

        CalculateOrder()
    End Sub
  63. In the Class Name combo box, select txtTaxRate
  64. In the Method Name combo box, select Leave and implement the event as follows:

    Private Sub txtTaxRateLeave(ByVal sender As Object,
                                 ByVal e As System.EventArgs)
                                 Handles txtTaxRate.Leave
        CalculateOrder()
End Sub
  65. In the Class Name combo box, select btnNewCustomerOrder
  66. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnNewCustomerOrderClick(ByVal sender As Object,
                                          ByVal e As System.EventArgs)
                                          Handles btnNewCustomerOrder.Click
    ' We will store our files in the following folder
    Dim strDirectory As String = "C:\Musical Instrument Store\Receipts"
    Dim dirInfo = Directory.CreateDirectory(strDirectory)

    ' Get the list of files, if any, from our directory
    Dim ListOfFiles = dirInfo.GetFiles()
    Dim Filename As String = ""

    ' If there is no file in the directory,
    ' then we will use 1000 as the first file name
    If ListOfFiles.Length = 0 Then
        iFilename = 1000
    Else ' If there was at least one file in the directory
        ' Get a reference to the last file
        Dim LastFile = ListOfFiles(ListOfFiles.Length - 1)
        ' Get the name of the last file without its extension
        Dim fwe As String =
		Path.GetFileNameWithoutExtension(LastFile.FullName)
        ' Increment the name of the file by 1
        iFilename = CInt(fwe) + 1
    End If

        ' Update our global name of the file
        Filename = strDirectory + "\" + CStr(iFilename) + ".cos"
        txtReceiptNumber.Text = CStr(iFilename)

        cbxCategories.Text = ""
        cbxTypes.Text = ""
        lvwStoreItems.Items.Clear()

        txtItemNumber1.Text = ""
        txtDescription1.Text = ""
        txtUnitPrice1.Text = "0.00"
        txtQuantity1.Text = "0"
        txtSubTotal1.Text = "0.00"

        txtItemNumber2.Text = ""
        txtDescription2.Text = ""
        txtUnitPrice2.Text = "0.00"
        txtQuantity2.Text = "0"
        txtSubTotal2.Text = "0.00"

        txtItemNumber3.Text = ""
        txtDescription3.Text = ""
        txtUnitPrice3.Text = "0.00"
        txtQuantity3.Text = "0"
        txtSubTotal3.Text = "0.00"

        txtItemNumber4.Text = ""
        txtDescription4.Text = ""
        txtUnitPrice4.Text = "0.00"
        txtQuantity4.Text = "0"
        txtSubTotal4.Text = "0.00"

        txtItemNumber5.Text = ""
        txtDescription5.Text = ""
        txtUnitPrice5.Text = "0.00"
        txtQuantity5.Text = "0"
        txtSubTotal5.Text = "0.00"

        txtItemNumber6.Text = ""
        txtDescription6.Text = ""
        txtUnitPrice6.Text = "0.00"
        txtQuantity6.Text = "0"
        txtSubTotal6.Text = "0.00"

        txtItemsTotal.Text = "0.00"
        txtTaxRate.Text = "7.75"
        txtTaxAmount.Text = "0.00"
        txtOrderTotal.Text = "0.00"
End Sub
  67. In the Class Name combo box, select btnSave
  68. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnSaveClick(ByVal sender As Object,
                              ByVal e As System.EventArgs)
                              Handles btnSave.Click
        Dim fwe As String
        Dim Filename As String
        Dim LastFile As FileInfo
        ' We will store our files in the following folder
        Dim strDirectory As String = "C:\Musical Instrument Store\Receipts"
        Dim dirInfo = Directory.CreateDirectory(strDirectory)

        ' Get the list of files, if any, from our directory
        Dim ListOfFiles() As FileInfo = dirInfo.GetFiles()

        ' If this is a new customer order,
        ' get ready to create a name for the file
        If IsNewCustomerOrder = True Then
            ' If there is no file in the directory,
            ' then we will use 1000 as the first file name
            If ListOfFiles.Length = 0 Then
                iFilename = 1000
            Else ' If there was at least one file in the directory
                ' Get a reference to the last file
                LastFile = ListOfFiles(ListOfFiles.Length - 1)
                ' Get the name of the last file without its extension
                fwe = Path.GetFileNameWithoutExtension(LastFile.FullName)
                ' Increment the name of the file by 1
                iFilename = CInt(fwe) + 1
            End If

            ' Update our global name of the file
            Filename = strDirectory + "\" + iFilename.ToString() + ".cos"
            txtReceiptNumber.Text = iFilename.ToString()

            IsNewCustomerOrder = False
            ' If a cleaning order was already opened,
	    ' we will simply update it
        Else
            Filename = "C:\Musical Instrument Store\Receipts\" &
                       txtReceiptNumber.Text & ".cos"
        End If

        Dim wrtCustomerOrder As StreamWriter = New StreamWriter(Filename)

        Try
            wrtCustomerOrder.WriteLine(txtItemNumber1.Text)
            wrtCustomerOrder.WriteLine(txtDescription1.Text)
            wrtCustomerOrder.WriteLine(txtUnitPrice1.Text)
            wrtCustomerOrder.WriteLine(txtQuantity1.Text)

            wrtCustomerOrder.WriteLine(txtItemNumber2.Text)
            wrtCustomerOrder.WriteLine(txtDescription2.Text)
            wrtCustomerOrder.WriteLine(txtUnitPrice2.Text)
            wrtCustomerOrder.WriteLine(txtQuantity2.Text)

            wrtCustomerOrder.WriteLine(txtItemNumber3.Text)
            wrtCustomerOrder.WriteLine(txtDescription3.Text)
            wrtCustomerOrder.WriteLine(txtUnitPrice3.Text)
            wrtCustomerOrder.WriteLine(txtQuantity3.Text)

            wrtCustomerOrder.WriteLine(txtItemNumber4.Text)
            wrtCustomerOrder.WriteLine(txtDescription4.Text)
            wrtCustomerOrder.WriteLine(txtUnitPrice4.Text)
            wrtCustomerOrder.WriteLine(txtQuantity4.Text)

            wrtCustomerOrder.WriteLine(txtItemNumber5.Text)
            wrtCustomerOrder.WriteLine(txtDescription5.Text)
            wrtCustomerOrder.WriteLine(txtUnitPrice5.Text)
            wrtCustomerOrder.WriteLine(txtQuantity5.Text)

            wrtCustomerOrder.WriteLine(txtItemNumber6.Text)
            wrtCustomerOrder.WriteLine(txtDescription6.Text)
            wrtCustomerOrder.WriteLine(txtUnitPrice6.Text)
            wrtCustomerOrder.WriteLine(txtQuantity6.Text)

            wrtCustomerOrder.WriteLine(txtItemsTotal.Text)
            wrtCustomerOrder.WriteLine(txtTaxRate.Text)
        Finally
            wrtCustomerOrder.Close()
        End Try
End Sub
  69. In the Class Name combo box, select
  70. Double-click the Open button and implement its event as follows:

    Private Sub btnOpenClick(ByVal sender As Object,
                              ByVal e As System.EventArgs)
                              Handles btnOpen.Click
    Dim strDirectory = "C:\Musical Instrument Store\Receipts"
    Dim strFilename As String =
	"C:\Musical Instrument Store\Receipts\1000.cos"

    If txtReceiptNumber.Text = "" Then
            Exit Sub
    Else
        Try
            strFilename = strDirectory & "\" &
                                      txtReceiptNumber.Text + ".cos"
            Dim rdrCustomerOrder As StreamReader =
		New StreamReader(strFilename)

            Try
                    txtItemNumber1.Text = rdrCustomerOrder.ReadLine()
                    txtDescription1.Text = rdrCustomerOrder.ReadLine()
                    txtUnitPrice1.Text = rdrCustomerOrder.ReadLine()
                    txtQuantity1.Text = rdrCustomerOrder.ReadLine()
                    Item1Leave(sender, e)

                    txtItemNumber2.Text = rdrCustomerOrder.ReadLine()
                    txtDescription2.Text = rdrCustomerOrder.ReadLine()
                    txtUnitPrice2.Text = rdrCustomerOrder.ReadLine()
                    txtQuantity2.Text = rdrCustomerOrder.ReadLine()
                    Item2Leave(sender, e)

                    txtItemNumber3.Text = rdrCustomerOrder.ReadLine()
                    txtDescription3.Text = rdrCustomerOrder.ReadLine()
                    txtUnitPrice3.Text = rdrCustomerOrder.ReadLine()
                    txtQuantity3.Text = rdrCustomerOrder.ReadLine()
                    Item3Leave(sender, e)

                    txtItemNumber4.Text = rdrCustomerOrder.ReadLine()
                    txtDescription4.Text = rdrCustomerOrder.ReadLine()
                    txtUnitPrice4.Text = rdrCustomerOrder.ReadLine()
                    txtQuantity4.Text = rdrCustomerOrder.ReadLine()
                    Item4Leave(sender, e)

                    txtItemNumber5.Text = rdrCustomerOrder.ReadLine()
                    txtDescription5.Text = rdrCustomerOrder.ReadLine()
                    txtUnitPrice5.Text = rdrCustomerOrder.ReadLine()
                    txtQuantity5.Text = rdrCustomerOrder.ReadLine()
                    Item5Leave(sender, e)

                    txtItemNumber6.Text = rdrCustomerOrder.ReadLine()
                    txtDescription6.Text = rdrCustomerOrder.ReadLine()
                    txtUnitPrice6.Text = rdrCustomerOrder.ReadLine()
                    txtQuantity6.Text = rdrCustomerOrder.ReadLine()
                    Item6Leave(sender, e)

                    txtItemsTotal.Text = rdrCustomerOrder.ReadLine()
                    txtTaxRate.Text = rdrCustomerOrder.ReadLine()

                    CalculateOrder()
                    IsNewCustomerOrder = False
                Finally
                    rdrCustomerOrder.Close()
                End Try
            Catch Exc As FileNotFoundException
                MsgBox("There is no customer order with that receipt number")
            End Try
        End If
End Sub
  71. In the Class Name combo box, select (MusicStore Events)
  72. In the Method Name combo box, select Load and implement the event as follows:

    Private Sub MusicStoreLoad(ByVal sender As Object,
                                ByVal e As System.EventArgs)
                                Handles Me.Load
        btnNewCustomerOrderClick(sender, e)
        LoadMusicStore()
        IsNewCustomerOrder = True
End Sub
  73. In the Class Name combo box, select btnClose
  74. Double-click the Close and implement its Click event as follows:

    Private Sub btnCloseClick(ByVal sender As Object,
                               ByVal e As System.EventArgs)
                               Handles btnClose.Click
    End
End Sub
  75. Execute the application to test it

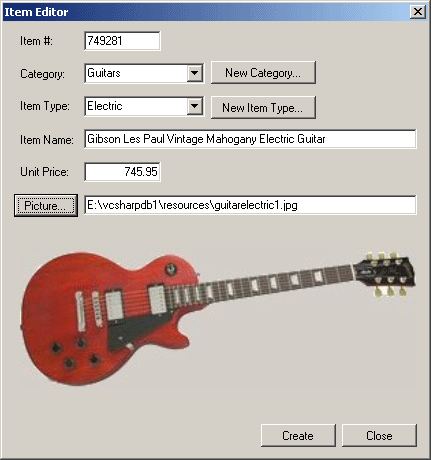

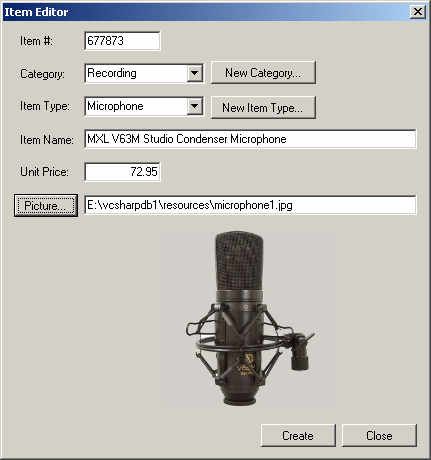

  76. Access the Item Editor dialog box and create a few items as follows (let the computer create the item numbers):

    Category Type Item Name Unit Price Picture
    Guitars Electric Gibson Les Paul Vintage Mahogany Electric Guitar 745.95 Picture
    Bass Electric 4-String Epiphone Thunderbird IV Bass 325.85 Picture
    Keyboards Synthesizers Alesis QS8.2 88 Key Synthesizer 825.50 Picture
    Guitars Acoustic Gretsch Guitars G100 Synchromatic Archtop Acoustic Guitar 595.95 Picture
    Drums Drum Set Pulse Pro 5-Piece Drum Set with Cymbals 395.95 Picture
    Keyboards Pianos Roland RD-700SX Digital Piano 2195.00
    Accessories Cables Mogami Gold AES/EBU Interconnect Cable with Neutrik XLR 45.85
    Guitars Acoustic-Electric Ibanez V Series V70CE Dreadnought Cutaway Acoustic-Electric Guitar 225.50
    Guitars Electric Schecter C-1 Hellraiser Electric Guitar 650.00 Picture
    Keyboards Synthesizers Roland V Synth GT Elastic Audio Synthesizer Keyboard 2895.50 Picture
    Bass Electric 5-String Fender Jazz Bass 24 V 5-String Bass Guitar 825.50 Picture
    Guitars Electric Fender Standard Stratocaster Left-Handed Electric Guitar 425.85 Picture
    Recording Microphone MXL V63M Studio Condenser Microphone 72.95 Picture
    Guitars Acoustic Yamaha FD01S Acoustic Folk Guitar 185.95
    Book/CD/DVD Instructional Hal Leonard Amazing Phrasing - Alto Sax (Book/CD) 18.00
    Guitars Classical & Nylon Alvarez Artist Series AC60S Classical Acoustic Guitar 275.95 Picture
    Guitars Acoustic Washburn D100DL Acoustic Guitar 150.50 Picture
    Drums Electronic Percussion Boss DR-670 Dr. Rhythm Drum Machine 275.85 Picture
    Recording Microphone Shure SM58 Mic 95.95 Picture
    Accessories Cables Live Wire HPE325 Headphone and Extension Cable 10.95 Picture
    Bass Acoustic Fretted Ibanez AEB10E Acoustic-Electric Bass Guitar with Onboard Tuner 350.00 Picture
    Drums World Percussion Latin Percussion Conga 3-Pack with Bongos 595.95 Picture
    Keyboards Synthesizers Roland JUNO-D 61-Key Synthesizer 595.95 Picture
    Drums World Percussion Latin Percussion Aspire Conga Set with Bongos and Stand 425.50 Picture
    Recording Microphone AKG Perception 200 Condenser Microphone 160.00 Picture

    Musical Instrument Store: Item Category

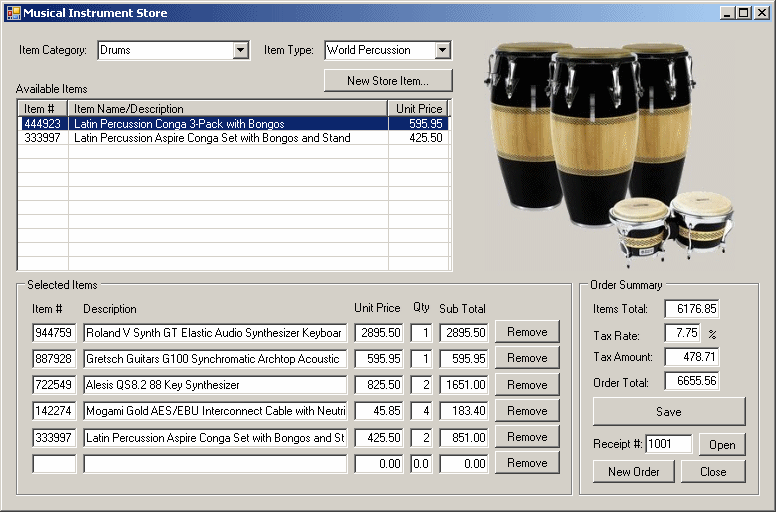

    Music Store

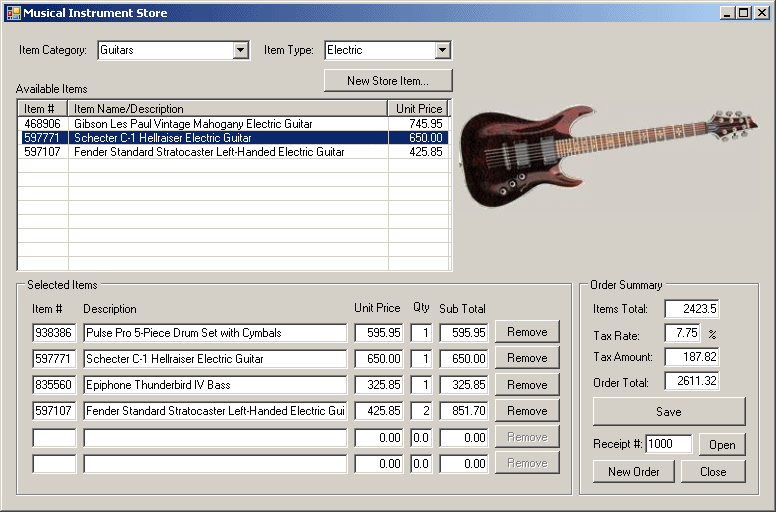

  77. Create a few customers' orders and click Save then New Order each time. Here are examples:

    Musical Instrument Store: Customer Order
    Musical Instrument Store: Customer Order
  78. Close the form and return to your programming environment

Home Copyright © 2008-2016, FunctionX, Inc.
