Windows Control: The Date Picker Control



Introduction to the Date/Time Picker Control



Description



The date/time picker is a control that allows the user to select either a date or a time value. This control provides two objects in one:

Date/Time Picker

Date/Time Picker

Date/Time Picker

One of the advantages of the date/time picker control is that it allows the user to select a time or a date value instead of typing it. This tremendously reduces the likelihood of mistakes.

Creating a Date/Time Picker

To create a date/time picker control, from the Common Controls section of the Toolbox, click DateTimePicker DateTimePicker and click the form or another container. The DateTimePicker control is based on the DateTimePicker class. Therefore, to programmatically, declare a variable of type DateTimePicker and initialize it appropriately. Here is an example:

Imports System.Drawing
Imports System.Windows.Forms

Module Exercise

    Public Class Starter
        Inherits Form

        Private DateOrTime As DateTimePicker

        Dim components As System.ComponentModel.Container

        Public Sub New()
            InitializeComponent()
        End Sub

        Public Sub InitializeComponent()
            DateOrTime = New DateTimePicker

            Controls.Add(DateOrTime)
        End Sub

    End Class

    Function Main() As Integer

        Dim frmStart As Starter = New Starter

        Application.Run(frmStart)

        Return 0
    End Function

End Module

In reality, the DateTimePicker control can be considered as two controls in one: you just have to choose which one of both controls you want to use.

Introduction to the Date Picker

After adding the DateTimePicker control to the form, to allow the user to set the dates and not the times on the control, set its Format property either to Long or to Short. If you are working programmatically, use the DateTimePickerFormat enumeration to select Long or Short and assign it to the Format property of the control. Here is an example:

Imports System.Drawing
Imports System.Windows.Forms

Module Exercise

    Public Class Starter
        Inherits Form

        Private Calendar As DateTimePicker

        Dim components As System.ComponentModel.Container

        Public Sub New()
            InitializeComponent()
        End Sub

        Public Sub InitializeComponent()
            Calendar = New DateTimePicker
            Calendar.Format = DateTimePickerFormat.Long

            Controls.Add(Calendar)
        End Sub

    End Class

    Function Main() As Integer

        Dim frmStart As Starter = New Starter

        Application.Run(frmStart)

        Return 0
    End Function

End Module

Characteristics of the Date Picker



The Spin Button

After adding a date time picker control and setting its Format to either Long (the default) or Short, the control becomes a combo box (the default). If you do not like the combo box, you can display a spin button instead. This characteristic is controlled by the ShowUpDown Boolean property. When its value is set to False (the default), the control appears as a combo box. It you set it to True, it appears as a spin button:

Date Picker


Of course, you can also set it programmatically:

Public Sub InitializeComponent()
            Calendar = New DateTimePicker
            Calendar.Format = DateTimePickerFormat.Long
            Calendar.ShowUpDown = True

            Controls.Add(Calendar)
End Sub

If the control displays a combo box and if the user clicks the arrow on the Date control, a calendar object similar to the month calendar control displays:

Date Picker



The Check Box

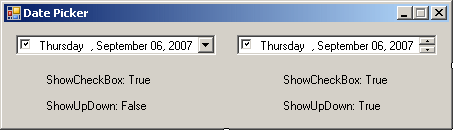

In some cases, you may want to decide when to allow the user to select a date or when to disable it. There are two ways you can do. You can use the Control's Enabled property that all other controls inherit. Another technique you can use is to display a check box on the left side of the text box section of the control. The presence or absence of the check box is controlled by the ShowCheckBox Boolean property whose default value is False. If you set it to True, a check box appears:

Date Picker: ShowCheckBox Effect

When the check box is checked, the user can change the displayed date. When the check box is unchecked, the control is displayed and the user cannot change the date. The user must first put a check mark in the check box in order to be able to change the date.

The state of the check box is controlled by the Boolean Checked property. If the user clicks the check box to put a check mark in it, this property's value becomes true.

Using the Date Picker

As its name indicates, the date picker either displays a date or allows the user to specify a date. The control follows the format of the date values specified in the regional settings of Control Panel. Consequently, the date is made of various sections including the name of the day, the name of the month, the numeric day in the month, and the year.

If the control is equipped with a spin button, to change the month, the user can click the month and then click one of the arrow buttons of the spin control. The user can also use the arrow keys to get the same effect. In the same way, the user can change the values of the day or the year.

If the control appears as a combo box, the user can click the arrow button. This would display a calendar:

Date Picker

When the calendar displays, the control throws a DropDown event. The DropDown event is of type EventArgs. This means that this event does not carry any significant information, other than to let you know that the calendar of the control has been dropped to display.

While the calendar is displaying, the user can change the month, change the year, or click a date to select one. T user can still change the date in the text box side of the control. However it is done, on the text box or on the calendar, when the date of the control has been changed, the control fires a ValueChanged event. The ValueChanged event, which is the default event of the control, is of type EventArgs, meaning it does not give you any detail about the date that was selected or about anything the user did. You would use your own means of finding out what date the user had selected or specified. This can easily be done by getting the Value property of the control.

If the control is displaying a calendar, once the user clicks a date, the calendar disappears and the control becomes a combo box again. When the calendar retracts, the control fires a CloseUp event. The CloseUp event is of type EventArgs, which means it does not carry any particular information other than letting you know that the calendar has been closed.

The Calendar Visual Characteristics

If the date picker control displays like a combo box, as mentioned already, if the user clicks the arrow button, a calendar appears. The calendar shares the same functionality and characteristics like the month calendar control:

  • The background color of the title bar is represented by the CalendarTitleBackColor property
  • The color of the text on the calendar is handled by the CalendarForeColor property
  • The font used on the text throughout the calendar is set by the CalendarFont property
  • The background color of the calendar is set by the BackColor property
  • The background color of the current month of the calendar is set by the CalendarMonthBackground property
  • The font color of the title bar is controlled by the CalendarTitleForeColor property
  • The minimum and the maximum dates are specified using the MinDate and the MaxDate properties
  • The color of the days of the trailing months is held by the CalendarTrailingForeColor property

The Alignment of the Calendar

This calendar displays to the bottom-left or the bottom-right side of the combo box. To control this alignment, change the value of the DropDownAlign property whose default value is Left. The other value is Right.

The displayed calendar object allows the user to select a date using the same techniques we described for the alendar control. The calendar part of the date time picker control displays using the same colors and other properties as we saw with the calendar control. After the user has selected a date, the date value displays in the text box section of the combo box and the calendar disappears.

The Minimum and the Maximum Dates

If you want to control the range of dates the user can select, use the MinDate and the MaxDate properties as we mentioned them from the MonthCalendar control.

The Value of the Calendar

When you add the date time picker control to your form or container, it displays the date of the computer at the time the control was added. If you want the control to display a different date, set the desired value in the Value field of the Properties window. At any time, you can find out what value the Date Picker has by retrieving the value of the Value property.

The Custom Format of the Calendar

If you set the Format property to Long, the date displays using the Long Date formats of Control Panel. If you set the Format to Short, the control uses the Short Date value of Control Panel. If you want to customize the way the date is displayed, set the Format property to Custom. After setting the Format to Custom, use the CustomFormat property to create the desired format. The format is created by combining the following characters:

Format Used For Description
d Days Displays the day as a number from 1 to 31
dd Days Displays the day as a number with a leading 0 if the number is less than 10
ddd Weekdays Displays a weekday name with 3 letters as Mon, Tue, etc
dddd Weekdays Displays the complete name of a week day as Monday, etc
M Months Displays the numeric month from 1 to 12
MM Months Displays the numeric month with a leading 0 if the number is less than 10
MMM Months Displays the short name of the month as Jan, Feb, Mar, etc
MMMM Months Displays the complete name of the month as January, etc
yy Years Displays two digits for the year as 00 for 2000 or 03 for 2003
yyyy Years Displays the numeric year with 4 digits

This means that you should be reluctant to let the users type whatever they want. The less they type, the less checking you need to do.

The Date Time Picker control uses some events that the month calendar control does not have. Whenever the user changes the date or time value of the control, a ValueChanged event fires. You can use this event to take some action such as indicating to the user that the new date is invalid.

If the Format property of the control is set to Date and if the ShowUpDown property is set to False, when the user clicks the arrow of the combo box to display the calendar part of the date time picker control, the DropDown event fires. On the other hand, if the user clicks the arrow to retract the calendar, the CloseUp event fires. Both events are of EventArgs type.

Example Application: Simple Interest
