Regular Data Binding

Data Binding Text Boxes

.

Practical Learning: Binding Text Boxes

1. Start Microsoft Visual Studio or Visual C# if necessary and create a new Windows Application named ExoADO1
2. Design the form as follows:


   Control Name Text Additional Properties Label   Person ID:   TextBox txtPersonID   AlignText: Right Label   First Name:   TextBox txtFirstName     Label   Last Name:   TextBox txtLastName     Label   Gender:   TextBox txtGender   AlignText: Right Button btnFirstRecord | <   Button btnPreviousRecord <<   Button btnNextRecord >>   Button btnLastRecord > |

3. Position the mouse on the Toolbox to display its list of objects and click Data
4. From the Data section, click SqlDataAdapter and click the form
5. Click Next
6. Click the arrow of the combo box. If you see Server.People.dbo, select it. If you don't see it, click New Connection. In the top combo box, select the server that contains the above database. (Either) Click  the Use Windows NT Integrated Security (or click the Use A Specific User Name And Password, in which case you would need to type the username and password). In the Select The Database On The Server combo box, select for the above People database. Click OK. Back in the Data Adapter Configuration Wizard, in the combo box, select People if necessary
7. Click Next
8. Accept the default Use SQL Statements radio button and click Next
9. Click Query Builder...
10. From the Tables property page of the Add Table dialog box, click Persons
11. Click Add and click Close

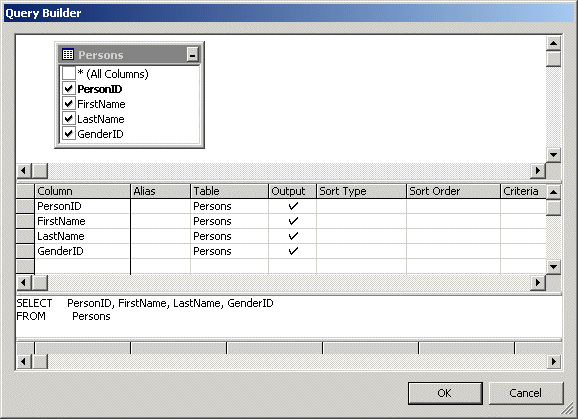

12. In the upper section of the Query Builder window, click the PersonID, FirstName, LastName, and GenderID check boxes


13. Click OK
14. Click Next to see a list of the procedures or statements that will be created and click Finish
15. On the main menu, click Data -> Generate Dataset...
16. Click Next the New radio button if necessary and change the name of the dataset from DataSet1 to dsPersons
17. Click OK
18. On the form, click the text box on the right side of PersonID
19. In the Properties window, click the + button of DataBindings. Then click Text to reveal its combo box. Click arrow of the combo box. In the list, click the + button of dsPersons1 and click the + button of Persons
20. In the list, click PersonID
21. Notice that the field now displays dsPersons1 - Persons.PersonID
22. Configure the other TextBox controls as follows:


    Control	DataBings -> Text
    txtPersonID	dsPersons1 - Persons.PersonID
    txtFirstName	dsPersons1 - Persons.FirstName
    txtLastName	dsPersons1 - Persons.LastName
    txtGenderID	dsPersons1 - Persons.GenderID

23. To display the data when the form comes up, double-click an empty area on the form and implement its Load event as follows:


    private void Form1_Load(object sender, System.EventArgs e) { sqlDataAdapter1.Fill(dsPersons1, "Persons"); }

24. Double-click the | <, the <<, the >>, and the < | buttons then implement their Click events as follows:


    private void btnFirst_Click(object sender, System.EventArgs e) { this.BindingContext[dsPersons1, "Persons"].Position = 0; } private void txtPrevious_Click(object sender, System.EventArgs e) { this.BindingContext[dsPersons1, "Persons"].Position = this.BindingContext[dsPersons1, "Persons"].Position - 1; } private void btnNext_Click(object sender, System.EventArgs e) { this.BindingContext[dsPersons1, "Persons"].Position = this.BindingContext[dsPersons1, "Persons"].Position + 1; } private void btnLast_Click(object sender, System.EventArgs e) { this.BindingContext[dsPersons1, "Persons"].Position = this.BindingContext[dsPersons1, "Persons"].Count - 1; }

25. Press Ctrl + F5 to test the application
