Introduction

A real estate company or agency is a business that presents or sells houses (properties) to prospective customers. This is an application that addresses some of the issues with a real estate company.

Practical Learning: Introducing the Collection Class

Start Microsoft Visual Studio
To create a new application, on the main menu, click File -> New Project...
In the middle list, click Windows Forms Application
Change the Name to AltairRealtors1
Click OK
To create a new class, on the main menu, click Project -> Add Class...
Set the Name to RealEstateProperty
Click Add

Change the file as follows:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace AltairRealtors1
{
    [Serializable]
    public class RealEstateProperty
    {
        public string PropertyNumber { get; set; }
        public string PropertyType { get; set; }
        public string Address { get; set; }
        public string City { get; set; }
        public string State { get; set; }
        public string ZIPCode { get; set; }
        public short Stories { get; set; }
        public int YearBuilt { get; set; }
        public short Bedrooms { get; set; }
        public float Bathrooms { get; set; }
        public string Condition { get; set; }
        public string SaleStatus { get; set; }
        public double MarketValue { get; set; }
        public string PictureFile { get; set; }

        // To determine that two properties are the same,
        // we will test only the property number.
        // We assume that if two properties have the same number,
        // then it is the same property
        public override bool Equals(object obj)
        {
            RealEstateProperty rep = (RealEstateProperty)obj;

            if (rep.PropertyNumber == PropertyNumber)
                return true;
            else
                return false;
        }

	// To avoid a compiler warning
        public override int GetHashCode()
        {
            return base.GetHashCode();
        }
    }
}

In the Solution Explorer, right-click Form1.cs and click Rename
Type AltairRealtors.cs and press Enter twice to display the form
From the Toolbox, add a list view to the form
Right-click that list box on the click Edit Columns...

Create the columns as follows:

(Name)	Text	TextAlign	Width
colPropertyNumber	Property #		65
colCity	City		75
colStories	Stories	Right	45
colYearBuilt	Year	Right	40
colBedrooms	Beds	Right	38
colBathrooms	Baths	Right	40
colCondition	Condition		80
colSaleStatus	Status		70
colMarketValue	Value	Right	75

Click OK

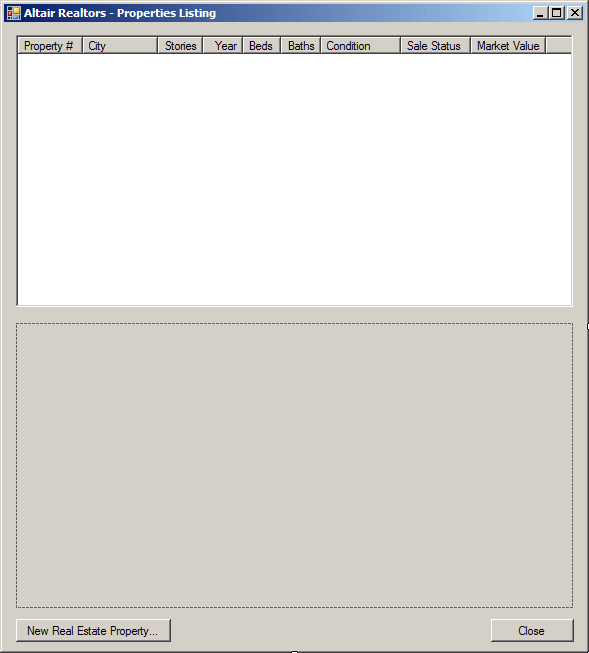

Design the form as follows:

Control	(Name)	Anchor	BorderStyle	SizeMode	Text
ListView	lvwProperties	Top, Bottom, Left, Right
Button	btnNewProperty	Bottom, Left			New Real Estate Property...
PictureBox	pbxPicture	Bottom, Right	FixedSingle	Zoom
Button	btnClose	Bottom, Right			Close

Form

Text:

Altair Realtors - Properties Listing

StartPosition:

CenterScreen

Right-click the form and click Edit Groups...
Create the groups as follows:

Header Name

Condominium lvgCondominium

Townhouse lvgTownhouse

Single Family lvgSingleFamily
Click OK
To create a new form, on the main menu, click Projects -> Add Windows Form...
Set the Name to PropertyEditor
Click Add
In the Dialogs section of the Toolbox, click OpenFileDialog
Click the form
In the Properties window, change its characteristics as follows:
(Name):      dlgPicture
DefaultExt: jpg
Filter:         JPEG Files (*.jpg,*.jpeg)|*.jpg
Title:          Select House Picture

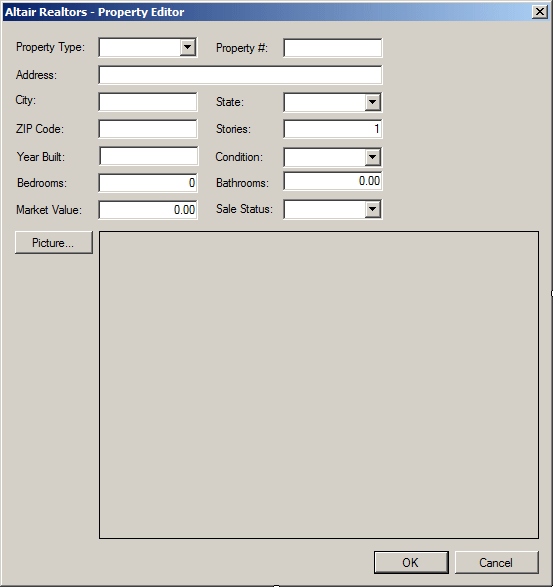

Design the form as follows:

Control	(Name)	DropDownStyle	Text	Items	Modifiers	Other Properties
Label			Property Type:
ComboBox	cbxPropertyTypes	DropDownList		Condominium Townhouse Single Family Unknown	Public
Label			Property #:
TextBox	txtPropertyNumber				Public
Label			Address:
TextBox	txtAddress				Public
Label			City:
TextBox	txtCity				Public
Label			State:
ComboBox	cbxStates	DropDownList		AL, AK, AZ, AR, CA, CO, CT, DE, DC, FL, GA, HI, ID, IL, IN, IA, KS, KY, LA, ME, MD, MA, MI, MN, MS, MO, MT, NE, NV, NH, NJ, NM, NY, NC, ND, OH, OK, OR, PA, RI, SC, SD, TN, TX, UT, VT, VA, WA, WV, WI, WY	Public
Label			ZIP Code:
TextBox	txtZIPCode				Public
Label			Stories:
TextBox	txtStories				Public
Label			Year Built:
TextBox	txtYearBuilt				Public
Label			Condition:
ComboBox	cbxConditions	DropDownList		Excellent Good Shape Needs Fixing	Public
Label			Bedrooms:
TextBox	txtBedrooms		0		Public
Label			Bathrooms:
TextBox	txtBathrooms		0.00		Public
Label			Market Value:
TextBox	txtMarketValue		0.00		Public
Label			Sale Status:
ComboBox	cbxSaleStatus	DropDownList		Unspecified Available Sold	Public
Button	btnPicture		Picture...
PictureBox	pbxProperty					BorderStyle: FixedSingle SizeMode: Zoom
Button	btnOK		OK			DialogResult: OK
Button	btnCancel		Cancel			DialogResult: Cancel

Form

FormBorderStyle:

FixedDialog

Text:

Altair Realtors - Property Editor

StartPosition:

CenterScreen

AcceptButton:

btnOK

CancelButton:

btnCancel

MaximizeBox:

False

MinimizeBox:

False

ShowInTaskBar:

False

Double-click an unoccupied area of the form
Return to the form
Double-click the Picture button

Change the file as follows:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;

namespace AltairRealtors1
{
    public partial class PropertyEditor : Form
    {
        public bool pictureChanged;
        public string pictureFile;

        public PropertyEditor()
        {
            InitializeComponent();
        }

        private void PropertyEditor_Load(object sender, EventArgs e)
        {
            pictureChanged = false;
            pictureFile = "C:\\Altair Realtors1\\000-000.jpg";
        }

        private void btnPicture_Click(object sender, EventArgs e)
        {
            if (dlgPicture.ShowDialog() == DialogResult.OK)
            {
                pbxProperty.Image = Image.FromFile(dlgPicture.FileName);
                pictureFile = dlgPicture.FileName;
                pictureChanged = true;
            }
        }
    }
}

Practical Learning: Starting a Linked List Class

In the Solution Explorer, double-click AltairRealtors.cs
Double-click an unoccupied area of the form

Change the file as follows:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;

namespace AltairRealtors10
{
    public partial class AltairRealtors : Form
    {
        LinkedList<RealEstateProperty> properties;

        public AltairRealtors()
        {
            InitializeComponent();
        }

        private void ShowProperties()
        {
            // Get a reference to the file that holds the records of properties
            string Filename = "C:\\Altair Realtors1\\properties.atr";

            // Make sure the file exists
            if (File.Exists(Filename) == true)
            {
                // if so, create a file stream
                FileStream stmProperties = new FileStream(Filename,
                                                          FileMode.Open,
                                                          FileAccess.Read);
                // Create a binary formatter
                BinaryFormatter bfmProperty = new BinaryFormatter();
                // If some properties were created already,
                // get them and store them in the collection
                properties = (LinkedList<RealEstateProperty>)bfmProperty.Deserialize(stmProperties);

                // First, empty the list view
                lvwProperties.Items.Clear();
                ListViewItem lviProperty = null;

                // Visit each property in the collection and add it to the list view
                foreach (RealEstateProperty house in properties)
                {
                    if (house.PropertyType.Equals("Condominium"))
                        lviProperty = new ListViewItem(house.PropertyNumber, lvwProperties.Groups[0]);
                    else if (house.PropertyType.Equals("Townhouse"))
                        lviProperty = new ListViewItem(house.PropertyNumber, lvwProperties.Groups[1]);
                    else // if (house.PropertyType.Equals("Single Family"))
                        lviProperty = new ListViewItem(house.PropertyNumber, lvwProperties.Groups[2]);

                    lviProperty.SubItems.Add(house.City);
                    lviProperty.SubItems.Add(house.Stories.ToString());
                    lviProperty.SubItems.Add(house.YearBuilt.ToString());
                    lviProperty.SubItems.Add(house.Bedrooms.ToString());
                    lviProperty.SubItems.Add(house.Bathrooms.ToString("F"));
                    lviProperty.SubItems.Add(house.Condition);
                    lviProperty.SubItems.Add(house.SaleStatus);
                    lviProperty.SubItems.Add(house.MarketValue.ToString());
                    lvwProperties.Items.Add(lviProperty);
                }

                // Close the file stream
                stmProperties.Close();
            }
        }

        private void AltairRealtors_Load(object sender, EventArgs e)
        {
            properties = new LinkedList<RealEstateProperty>();
            ShowProperties();
        }
    }
}

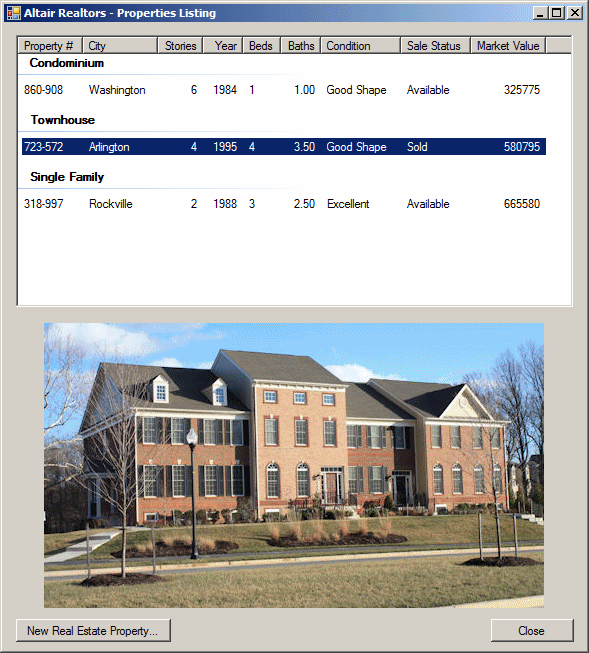

Return to the Altair Realtors - Properties Listing form

Practical Learning: Adding the First Node

On the form, double-click the New Real Estale Property button

Implement its event as follows:

private void btnNewProperty_Click(object sender, EventArgs e)
{
    PropertyEditor editor = new PropertyEditor();

    Random rndNumber = new Random(DateTime.Now.Millisecond);
    int number1 = rndNumber.Next(100, 999);
    int number2 = rndNumber.Next(100, 999);
    string propNumber = number1 + "-" + number2;

    editor.txtPropertyNumber.Text = propNumber;

    // Check that the directory that contains the list of properties exists.
    // If it doesn't exist, create it
    DirectoryInfo dirInfo = Directory.CreateDirectory("C:\\Altair Realtors1");
    // Get a reference to the file that holds the properties
    string Filename = "C:\\Altair Realtors1\\properties.atr";

    // First check if the file was previously created
    if (File.Exists(Filename) == true)
    {
        // If the list of properties exists already,
        // get it and store it in a file stream
        FileStream stmProperties = new FileStream(Filename,
                                                  FileMode.Open,
                                                  FileAccess.Read);
        BinaryFormatter bfmProperty = new BinaryFormatter();
        // Store the list of properties in the collection
        properties = (LinkedList<RealEstateProperty>)bfmProperty.Deserialize(stmProperties);
        // Close the file stream
        stmProperties.Close();
    }

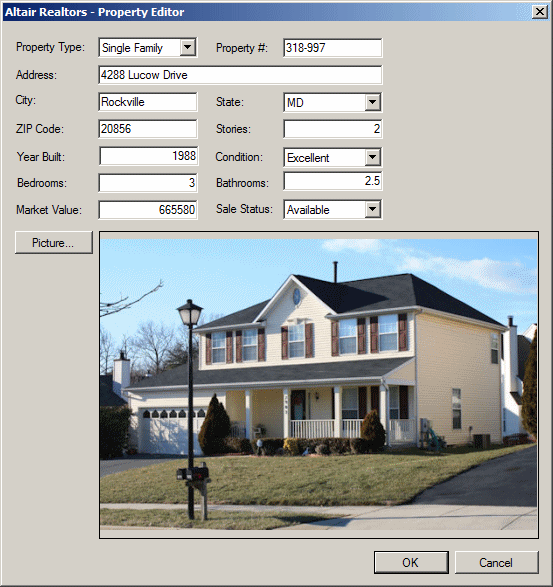

    if (editor.ShowDialog() == DialogResult.OK)
    {
        RealEstateProperty prop = new RealEstateProperty();

        prop.PropertyNumber = editor.txtPropertyNumber.Text;
        prop.PropertyType = editor.cbxPropertyTypes.Text;
        prop.Address = editor.txtAddress.Text;
        prop.City = editor.txtCity.Text;
        prop.State = editor.cbxStates.Text;
        prop.ZIPCode = editor.txtZIPCode.Text;
        prop.Stories = short.Parse(editor.txtStories.Text);
        prop.YearBuilt = int.Parse(editor.txtYearBuilt.Text);
        prop.Bedrooms = short.Parse(editor.txtBedrooms.Text);
        prop.Bathrooms = float.Parse(editor.txtBathrooms.Text);
        prop.Condition = editor.cbxConditions.Text;
        prop.SaleStatus = editor.cbxSaleStatus.Text;
        prop.MarketValue = double.Parse(editor.txtMarketValue.Text);
        if (!editor.pictureFile.Equals(""))
        {
            FileInfo flePicture = new FileInfo(editor.pictureFile);
            flePicture.CopyTo("C:\\Altair Realtors1\\" +
                              editor.txtPropertyNumber.Text +
                              flePicture.Extension);
            prop.PictureFile = "C:\\Altair Realtors1\\" +
                              editor.txtPropertyNumber.Text +
                              flePicture.Extension;
        }
        else
            prop.PictureFile = "C:\\Altair Realtors1\\000-000.jpg";
        // Add the property in the collection
        properties.AddFirst(prop);

        // Get a reference to the properties file
        string strFilename = dirInfo.FullName + "\\properties.atr";
        // Create a file stream to hold the list of properties
        FileStream stmProperties = new FileStream(strFilename,
                                                  FileMode.Create,
                                                  FileAccess.Write);
        BinaryFormatter bfmProperty = new BinaryFormatter();

        // Serialize the list of properties
        bfmProperty.Serialize(stmProperties, properties);
        // Close the file stream
        stmProperties.Close();

        // Show the list of properties
        ShowProperties();
    }
}

Return to the form and click the list view
In the Properties window, click Events and double-click ItemSelectionChanged

Implement the event as follows:

private void lvwProperties_ItemSelectionChanged(object sender,
    ListViewItemSelectionChangedEventArgs e)
{
    RealEstateProperty currentProperty = new RealEstateProperty();

    foreach (RealEstateProperty prop in properties)
    {
        if (prop.PropertyNumber.Equals(e.Item.SubItems[0].Text))
            pbxProperty.Image = Image.FromFile(prop.PictureFile);
    }
}

To execute, press F5
Click the New Real Estate Property button and create a property
Click OK
Copy the following picture and paste (or save it) in the Altair Realtors folder on the C: drive (or the folder that contains the file properties of this project):
Create the following properties
Close the form and return to your programming environment

Practical Learning: Checking a Node

On the form, click the list view
In the Events section of the Properties window, double-click DoubleClick

Implement its event as follows:

private void lvwProperties_DoubleClick(object sender, EventArgs e)
{
    if ((lvwProperties.SelectedItems.Count == 0) ||
        (lvwProperties.SelectedItems.Count > 1))
        return;

    // Get a reference to the file that holds the properties
    string Filename = "C:\\Altair Realtors1\\properties.atr";

    // Open the file that contains the properties
    FileStream stmProperties = new FileStream(Filename,
                                              FileMode.Open,
                                              FileAccess.Read);
    BinaryFormatter bfmProperty = new BinaryFormatter();
    // Store the list of properties in the collection
    properties = (LinkedList<RealEstateProperty>)bfmProperty.Deserialize(stmProperties);
    // Close the file stream
    stmProperties.Close();

    // Get the property that the user double-clicked
    var lviProperty = lvwProperties.SelectedItems[0];
    RealEstateProperty house = new RealEstateProperty();
    foreach( RealEstateProperty prop in properties )
        if( prop.PropertyNumber == lviProperty.Text )
            house = prop;

    // Get a reference to the property editor
    PropertyEditor editor = new PropertyEditor();

    // Prepare to fill the editor with the values of the property the user double-clicked
    editor.txtPropertyNumber.Text = house.PropertyNumber;
    editor.cbxPropertyTypes.Text = house.PropertyType;
    editor.txtAddress.Text = house.Address;
    editor.txtCity.Text = house.City;
    editor.cbxStates.Text = house.State;
    editor.txtZIPCode.Text = house.ZIPCode;
    editor.txtStories.Text = house.Stories.ToString();
    editor.txtYearBuilt.Text = house.YearBuilt.ToString();
    editor.txtBedrooms.Text = house.Bedrooms.ToString();
    editor.txtBathrooms.Text = house.Bathrooms.ToString("F");
    editor.cbxConditions.Text = house.Condition;
    editor.cbxSaleStatus.Text = house.SaleStatus;
    editor.txtMarketValue.Text = house.MarketValue.ToString("F");
    editor.pbxProperty.Image = Image.FromFile(house.PictureFile);

    // Disable the property number just in case the user tries to change it
    editor.txtPropertyNumber.Enabled = false;

    // Show the property editor
    editor.ShowDialog();
}

Press F5 to execute the application
Double-click one of the properties
Close the forms and return to your programming environment

Practical Learning: Updating a Node

Change the DoubleClick event as follows:

private void lvwProperties_DoubleClick(object sender, EventArgs e)
{
    if ((lvwProperties.SelectedItems.Count == 0) ||
        (lvwProperties.SelectedItems.Count > 1))
        return;

    // Get a reference to the file that holds the properties
    string Filename = "C:\\Altair Realtors1\\properties.atr";

    // Open the file that contains the properties
    FileStream stmProperties = new FileStream(Filename,
                                              FileMode.Open,
                                              FileAccess.Read);
    BinaryFormatter bfmProperty = new BinaryFormatter();
    // Store the list of properties in the linked list
    properties = (LinkedList<RealEstateProperty>)bfmProperty.Deserialize(stmProperties);
    // Close the file stream
    stmProperties.Close();

    // Get the property that the user double-clicked
    var lviProperty = lvwProperties.SelectedItems[0];
    RealEstateProperty house = new RealEstateProperty();
    // Get the property number the user double-clicked
    house.PropertyNumber = lviProperty.Text;

    // Find the property in the list
    LinkedListNode<RealEstateProperty> nodProperty = properties.Find(house);

    // Get a reference to the property editor
    PropertyEditor editor = new PropertyEditor();

    // Prepare to fill the editor with the values of the property the user double-clicked
    editor.txtPropertyNumber.Text = nodProperty.Value.PropertyNumber;
    editor.cbxPropertyTypes.Text = nodProperty.Value.PropertyType;
    editor.txtAddress.Text = nodProperty.Value.Address;
    editor.txtCity.Text = nodProperty.Value.City;
    editor.cbxStates.Text = nodProperty.Value.State;
    editor.txtZIPCode.Text = nodProperty.Value.ZIPCode;
    editor.txtStories.Text = nodProperty.Value.Stories.ToString();
    editor.txtYearBuilt.Text = nodProperty.Value.YearBuilt.ToString();
    editor.txtBedrooms.Text = nodProperty.Value.Bedrooms.ToString();
    editor.txtBathrooms.Text = nodProperty.Value.Bathrooms.ToString("F");
    editor.cbxConditions.Text = nodProperty.Value.Condition;
    editor.cbxSaleStatus.Text = nodProperty.Value.SaleStatus;
    editor.txtMarketValue.Text = nodProperty.Value.MarketValue.ToString("F");
    editor.pbxProperty.Image = Image.FromFile(nodProperty.Value.PictureFile);
    editor.pictureFile = nodProperty.Value.PictureFile;

    // Disable the property number so the user cannot change it
    editor.txtPropertyNumber.Enabled = false;

    // Show the property editor
    if (editor.ShowDialog() == System.Windows.Forms.DialogResult.OK)
    {
        // For each value that has changed in the property, update its nnode
        nodProperty.Value.PropertyType = editor.cbxPropertyTypes.Text;
        nodProperty.Value.Address = editor.txtAddress.Text;
        nodProperty.Value.City = editor.txtCity.Text;
        nodProperty.Value.State = editor.cbxStates.Text;
        nodProperty.Value.ZIPCode = editor.txtZIPCode.Text;
        nodProperty.Value.Stories = short.Parse(editor.txtStories.Text);
        nodProperty.Value.YearBuilt = int.Parse(editor.txtYearBuilt.Text);
        nodProperty.Value.Bedrooms = short.Parse(editor.txtBedrooms.Text);
        nodProperty.Value.Bathrooms = float.Parse(editor.txtBathrooms.Text);
        nodProperty.Value.Condition = editor.cbxConditions.Text;
        nodProperty.Value.SaleStatus = editor.cbxSaleStatus.Text;
        nodProperty.Value.MarketValue = double.Parse(editor.txtMarketValue.Text);
        nodProperty.Value.PictureFile = editor.pictureFile;

        // Start saving the linked list
        stmProperties = new FileStream(Filename,
                                       FileMode.OpenOrCreate,
                                       FileAccess.ReadWrite);
        bfmProperty = new BinaryFormatter();

        // Serialize the list of properties
        bfmProperty.Serialize(stmProperties, properties);
        // Close the file stream
        stmProperties.Close();

        // Show the list of properties
        ShowProperties();
    }
}

Press F5 to execute
Double-click the row in the Townhouse section
Change its year built to 2005
Change its market value to 585985 (If possible, also change its picture)
Click OK
Close the form and return to your programming environment

Practical Learning: Navigating Among Nodes

To create a new form, on the main menu, click Projects -> Add Windows Form...
Set the Name to PropertiesReview
Click Add

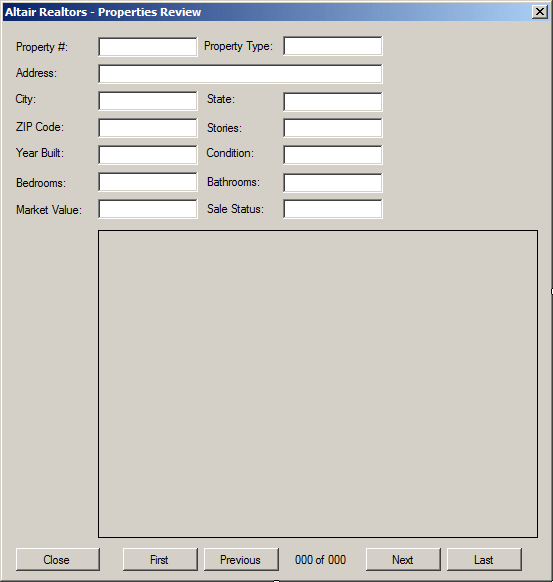

Design the form as follows:

Control	(Name)	DropDownStyle	Text	Other Properties
Label			Property #:
TextBox	txtPropertyNumber
Label			Property Type:
TextBox	txtPropertyType
Label			Address:
TextBox	txtAddress
Label			City:
TextBox	txtCity
Label			State:
TexBox	txtState
Label			ZIP Code:
TextBox	txtZIPCode
Label			Stories:
TextBox	txtStories
Label			Year Built:
TextBox	txtYearBuilt
Label			Condition:
TextBox	txtCondition
Label			Bedrooms:
TextBox	txtBedrooms		0
Label			Bathrooms:
TextBox	txtBathrooms		0.00
Label			Market Value:
TextBox	txtMarketValue		0.00
Label			Sale Status:
TextBox	txtStatus
PictureBox	pbxProperty			BorderStyle: FixedSingle SizeMode: Zoom
Button	btnClose		Close
Button	btnFirst		First
Label	lblRecordNumber		000 of 000
Button	btnPrevious		Previous
Button	btnLast		Last

Double-click an unoccupied area of the form

Change the file as follows:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;

namespace AltairRealtors10
{
    public partial class PropertiesReview : Form
    {
        int index;
        LinkedList<RealEstateProperty> properties;
        LinkedListNode<RealEstateProperty> nodCurrent;

        public PropertiesReview()
        {
            InitializeComponent();
        }

        private void PropertiesReview_Load(object sender, EventArgs e)
        {
            index = 1;
            // Get a reference to the file that holds the records of properties
            string Filename = "C:\\Altair Realtors1\\properties.atr";

            // Make sure the file exists
            if (File.Exists(Filename) == true)
            {
                // if so, create a file stream
                FileStream stmProperties = new FileStream(Filename,
                                                          FileMode.Open,
                                                          FileAccess.Read);
                // Create a binary formatter
                BinaryFormatter bfmProperty = new BinaryFormatter();
                // If some properties were created already,
                // get them and store them in the collection
                properties = (LinkedList<RealEstateProperty>)bfmProperty.Deserialize(stmProperties);

                btnFirst_Click(sender, e);
            }
        }
    }
}

Return to the form and double-click the First button

Implement its event as follows:

private void btnFirst_Click(object sender, EventArgs e)
{
    index = 1;
    nodCurrent = properties.First;

    txtPropertyNumber.Text = nodCurrent.Value.PropertyNumber;
    txtPropertyType.Text = nodCurrent.Value.PropertyType;
    txtAddress.Text = nodCurrent.Value.Address;
    txtCity.Text = nodCurrent.Value.City;
    txtState.Text = nodCurrent.Value.State;
    txtZIPCode.Text = nodCurrent.Value.ZIPCode;
    txtStories.Text = nodCurrent.Value.Stories.ToString();
    txtYearBuilt.Text = nodCurrent.Value.YearBuilt.ToString();
    txtBedrooms.Text = nodCurrent.Value.Bedrooms.ToString();
    txtBathrooms.Text = nodCurrent.Value.Bathrooms.ToString("F");
    txtCondition.Text = nodCurrent.Value.Condition;
    txtSaleStatus.Text = nodCurrent.Value.SaleStatus;
    txtMarketValue.Text = nodCurrent.Value.MarketValue.ToString("F");
    pbxProperty.Image = Image.FromFile(nodCurrent.Value.PictureFile);

    lblRecordNumber.Text = "1 of " + properties.Count.ToString();
}

Return to the form and double-click the Previous button

Implement its event as follows:

private void btnPrevious_Click(object sender, EventArgs e)
{
    index--;

    if (index <= 1)
        btnFirst_Click(sender, e);
    else
    {
        LinkedListNode<RealEstateProperty> current = nodCurrent.Previous;

        txtPropertyNumber.Text = current.Value.PropertyNumber;
        txtPropertyType.Text = current.Value.PropertyType;
        txtAddress.Text = current.Value.Address;
        txtCity.Text = current.Value.City;
        txtState.Text = current.Value.State;
        txtZIPCode.Text = current.Value.ZIPCode;
        txtStories.Text = current.Value.Stories.ToString();
        txtYearBuilt.Text = current.Value.YearBuilt.ToString();
        txtBedrooms.Text = current.Value.Bedrooms.ToString();
        txtBathrooms.Text = current.Value.Bathrooms.ToString("F");
        txtCondition.Text = current.Value.Condition;
        txtSaleStatus.Text = current.Value.SaleStatus;
        txtMarketValue.Text = current.Value.MarketValue.ToString("F");

        lblRecordNumber.Text = index.ToString() +
        		" of " + properties.Count.ToString();
    }
}

Return to the form and double-click the Next button

Implement its event as follows:

private void btnNext_Click(object sender, EventArgs e)
{
    index++;

    if (index >= properties.Count)
        btnLast_Click(sender, e);
    else
    {
        LinkedListNode<RealEstateProperty> current = nodCurrent.Next;

        txtPropertyNumber.Text = current.Value.PropertyNumber;
        txtPropertyType.Text = current.Value.PropertyType;
        txtAddress.Text = current.Value.Address;
        txtCity.Text = current.Value.City;
        txtState.Text = current.Value.State;
        txtZIPCode.Text = current.Value.ZIPCode;
        txtStories.Text = current.Value.Stories.ToString();
        txtYearBuilt.Text = current.Value.YearBuilt.ToString();
        txtBedrooms.Text = current.Value.Bedrooms.ToString();
        txtBathrooms.Text = current.Value.Bathrooms.ToString("F");
        txtCondition.Text = current.Value.Condition;
        txtSaleStatus.Text = current.Value.SaleStatus;
        txtMarketValue.Text = current.Value.MarketValue.ToString("F");
        pbxProperty.Image = Image.FromFile(current.Value.PictureFile);

        lblRecordNumber.Text = index.ToString() +
        			" of " + properties.Count.ToString();
    }
}

Return to the form and double-click the Last button

Implement its event as follows:

private void btnLast_Click(object sender, EventArgs e)
{
    index = properties.Count;
    nodCurrent = properties.Last;

    txtPropertyNumber.Text = nodCurrent.Value.PropertyNumber;
    txtPropertyType.Text = nodCurrent.Value.PropertyType;
    txtAddress.Text = nodCurrent.Value.Address;
    txtCity.Text = nodCurrent.Value.City;
    txtState.Text = nodCurrent.Value.State;
    txtZIPCode.Text = nodCurrent.Value.ZIPCode;
    txtStories.Text = nodCurrent.Value.Stories.ToString();
    txtYearBuilt.Text = nodCurrent.Value.YearBuilt.ToString();
    txtBedrooms.Text = nodCurrent.Value.Bedrooms.ToString();
    txtBathrooms.Text = nodCurrent.Value.Bathrooms.ToString("F");
    txtCondition.Text = nodCurrent.Value.Condition;
    txtSaleStatus.Text = nodCurrent.Value.SaleStatus;
    txtMarketValue.Text = nodCurrent.Value.MarketValue.ToString("F");
    pbxProperty.Image = Image.FromFile(nodCurrent.Value.PictureFile);

    lblRecordNumber.Text = properties.Count.ToString() +
    		 	  " of " + properties.Count.ToString();
}

Return to the form and double-click the Close button
Type Close();
Display the Properties Listing form
On the right side of the New Real Estate Property button, add a new button and set its characteristics as follows:br>(Name): btnReviewProperties
Text: Review Properties...

Double-click the Navigate button and implement its event as follows:

private void btnReviewProperties_Click(object sender, EventArgs e)
{
    PropertiesReview pr = new PropertiesReview();

    pr.ShowDialog();
}

Press F5 to execute
Click the Review Properties button
Close the forms and return to your programming environment

Practical Learning: Inserting Nodes

Display the Properties Listing form
In the Menus & Toolbars section of the Toolbox, click ContextMenuStrip and click the form

Click the menu items as follows:

(Name)	Enabled	Text
mnuNewProperty		New Property...
mnuEditProperty	False	Edit Property...
mnuInsertBefore	False	Insert Property...
mnuInsertAfter	False	Insert After

Under the form, click the context menu strip
In the Properties window, change its name to cmsProperties
On the form, click the list view
In the Properties window, set its ContextMenuStrip to cmsProperties
Under the form, click cmsProperties
Under ContextMenuStrip, double-click New Property...

Implement the event as follows:

private void mnuNewProperty_Click(object sender, EventArgs e)
{
    btnNewProperty_Click(sender, e);
}

Locate the ItemSelectionChanged event and change its implementation as follows:

private void lvwProperties_ItemSelectionChanged(object sender,
    ListViewItemSelectionChangedEventArgs e)
{
    RealEstateProperty currentProperty = new RealEstateProperty();

    if (lvwProperties.SelectedItems.Count == 1)
        lviSelected = lvwProperties.SelectedItems[0];

    foreach (RealEstateProperty prop in properties)
    {
        if (prop.PropertyNumber.Equals(e.Item.SubItems[0].Text))
            pbxProperty.Image = Image.FromFile(prop.PictureFile);
    }

    if( lvwProperties.SelectedItems.Count == 1)
    {
        mnuInsertBefore.Enabled = true;
        mnuEditProperty.Enabled = true;
        mnuInsertAfter.Enabled = true;
    }
    else
    {
        mnuInsertBefore.Enabled = false;
        mnuEditProperty.Enabled = false;
        mnuInsertAfter.Enabled = false;
    }
}

Return to the form and, under the form, click cmsProperties
On the form, double-click Edit properties

Implement its event as follows:

private void mnuEditProperty_Click(object sender, EventArgs e)
{
    lvwProperties_DoubleClick(sender, e);
}

Return to the form and, on the form, double-click Insert Before...

Implement the event as follows:

private void mnuInsertBefore_Click(object sender, EventArgs e)
{
    PropertyEditor editor = new PropertyEditor();
    string Filename = "C:\\Altair Realtors1\\properties.atr";
    DirectoryInfo dirInfo = Directory.CreateDirectory("C:\\Altair Realtors1");

    if (File.Exists(Filename) == true)
    {
        FileStream stmProperties = new FileStream(Filename,
                                                  FileMode.Open,
                                                  FileAccess.Read);
        BinaryFormatter bfmProperties = new BinaryFormatter();

        properties = (LinkedList<RealEstateProperty>)bfmProperties.Deserialize(stmProperties);
        stmProperties.Close();
        stmProperties.Close();
    }

    RealEstateProperty rep = new RealEstateProperty();
    string strPropertyNumber = lvwProperties.SelectedItems[0].Text;
    rep.PropertyNumber = lvwProperties.SelectedItems[0].Text;

    Random rndNumber = new Random(DateTime.Now.Millisecond);
    int number1 = rndNumber.Next(100, 999);
    int number2 = rndNumber.Next(100, 999);
    string propNumber = number1 + "-" + number2;

    editor.txtPropertyNumber.Text = propNumber;
    editor.cbxPropertyTypes.Text = lvwProperties.SelectedItems[0].Group.Header;
    editor.cbxPropertyTypes.Enabled = false;

    LinkedListNode<RealEstateProperty> nodProperty = properties.Find(rep);

    if (nodProperty != null)
    {
        if (editor.ShowDialog() == System.Windows.Forms.DialogResult.OK)
        {
            RealEstateProperty prop = new RealEstateProperty();

            prop.PropertyNumber = editor.txtPropertyNumber.Text;
            prop.PropertyType = editor.cbxPropertyTypes.Text;
            prop.Address = editor.txtAddress.Text;
            prop.City = editor.txtCity.Text;
            prop.State = editor.cbxStates.Text;
            prop.ZIPCode = editor.txtZIPCode.Text;
            prop.Stories = short.Parse(editor.txtStories.Text);
            prop.YearBuilt = int.Parse(editor.txtYearBuilt.Text);
            prop.Bedrooms = short.Parse(editor.txtBedrooms.Text);
            prop.Bathrooms = float.Parse(editor.txtBathrooms.Text);
            prop.Condition = editor.cbxConditions.Text;
            prop.SaleStatus = editor.cbxSaleStatus.Text;
            prop.MarketValue = double.Parse(editor.txtMarketValue.Text);
            if (!editor.pictureFile.Equals(""))
            {
                FileInfo flePicture = new FileInfo(editor.pictureFile);
                flePicture.CopyTo("C:\\Altair Realtors1\\" +
                                  editor.txtPropertyNumber.Text +
                                  flePicture.Extension);
                prop.PictureFile = "C:\\Altair Realtors1\\" +
                                  editor.txtPropertyNumber.Text +
                                  flePicture.Extension;
            }
            else
                prop.PictureFile = "C:\\Altair Realtors1\\000-000.jpg";

            // Insert the property before the currently selected node
            properties.AddBefore(nodProperty, prop);

            // Get a reference to the properties file
            string strFilename = dirInfo.FullName + "\\properties.atr";
            // Create a file stream to hold the list of properties
            FileStream stmProperties = new FileStream(strFilename,
                                                      FileMode.Create,
                                                      FileAccess.Write);
            BinaryFormatter bfmProperty = new BinaryFormatter();

            // Serialize the list of properties
            bfmProperty.Serialize(stmProperties, properties);
            // Close the file stream
            stmProperties.Close();

            // Show the list of properties
            ShowProperties();
        }
    }
}

Return to the form and, on the form, double-click Insert After...

Implement the event as follows:

private void mnuInsertAfter_Click(object sender, EventArgs e)
{
    PropertyEditor editor = new PropertyEditor();
    string Filename = "C:\\Altair Realtors1\\properties.atr";
    DirectoryInfo dirInfo = Directory.CreateDirectory("C:\\Altair Realtors1");

    if (File.Exists(Filename) == true)
    {
        FileStream stmProperties = new FileStream(Filename,
                                                  FileMode.Open,
                                                  FileAccess.Read);
        BinaryFormatter bfmProperties = new BinaryFormatter();

        properties = (LinkedList<RealEstateProperty>)bfmProperties.Deserialize(stmProperties);
        // Close the file stream
        stmProperties.Close();
        stmProperties.Close();
    }

    RealEstateProperty rep = new RealEstateProperty();
    string strPropertyNumber = lvwProperties.SelectedItems[0].Text;
    rep.PropertyNumber = lvwProperties.SelectedItems[0].Text;

    Random rndNumber = new Random(DateTime.Now.Millisecond);
    int number1 = rndNumber.Next(100, 999);
    int number2 = rndNumber.Next(100, 999);
    string propNumber = number1 + "-" + number2;

    editor.txtPropertyNumber.Text = propNumber;
    editor.cbxPropertyTypes.Text = lvwProperties.SelectedItems[0].Group.Header;
    editor.cbxPropertyTypes.Enabled = false;

    LinkedListNode<RealEstateProperty> nodProperty = properties.Find(rep);

    if (nodProperty != null)
    {
        if (editor.ShowDialog() == System.Windows.Forms.DialogResult.OK)
        {
            RealEstateProperty prop = new RealEstateProperty();

            prop.PropertyNumber = editor.txtPropertyNumber.Text;
            prop.PropertyType = editor.cbxPropertyTypes.Text;
            prop.Address = editor.txtAddress.Text;
            prop.City = editor.txtCity.Text;
            prop.State = editor.cbxStates.Text;
            prop.ZIPCode = editor.txtZIPCode.Text;
            prop.Stories = short.Parse(editor.txtStories.Text);
            prop.YearBuilt = int.Parse(editor.txtYearBuilt.Text);
            prop.Bedrooms = short.Parse(editor.txtBedrooms.Text);
            prop.Bathrooms = float.Parse(editor.txtBathrooms.Text);
            prop.Condition = editor.cbxConditions.Text;
            prop.SaleStatus = editor.cbxSaleStatus.Text;
            prop.MarketValue = double.Parse(editor.txtMarketValue.Text);
            if (!editor.pictureFile.Equals(""))
            {
                FileInfo flePicture = new FileInfo(editor.pictureFile);
                flePicture.CopyTo("C:\\Altair Realtors1\\" +
                                  editor.txtPropertyNumber.Text +
                                  flePicture.Extension);
                prop.PictureFile = "C:\\Altair Realtors1\\" +
                                  editor.txtPropertyNumber.Text +
                                  flePicture.Extension;
            }
            else
                prop.PictureFile = "C:\\Altair Realtors1\\000-000.jpg";

            // Insert the property before the currently selected node
            properties.AddAfter(nodProperty, prop);

            // Get a reference to the properties file
            string strFilename = dirInfo.FullName + "\\properties.atr";
            // Create a file stream to hold the list of properties
            FileStream stmProperties = new FileStream(strFilename,
                                                      FileMode.Create,
                                                      FileAccess.Write);
            BinaryFormatter bfmProperty = new BinaryFormatter();

            // Serialize the list of properties
            bfmProperty.Serialize(stmProperties, properties);
            // Close the file stream
            stmProperties.Close();

            // Show the list of properties
            ShowProperties();
        }
    }
}

To execute, press F5
Create the properties (let the application generate the property number) (the new records are in bold):
Close the form and return to your programming environment

Practical Learning: Deleting a Node

Display the Properties Listing form
Under the form, click cmsProperties

Add a new menu item as follows:

(Name)	Enabled	Text
mnuNewProperty		New Property...
mnuEditProperty	False	Edit Property...
mnuInsertBefore	False	Insert Property...
mnuInsertAfter	False	Insert After
mnuDeleteProperty	False	Delete Property

Double-click the Delete Property menu item

In the file, locate the ItemSelectionChanged event and change its implementation as follows:

private void lvwProperties_ItemSelectionChanged(object sender,
    ListViewItemSelectionChangedEventArgs e)
{
    RealEstateProperty currentProperty = new RealEstateProperty();

    if (lvwProperties.SelectedItems.Count == 1)
        lviSelected = lvwProperties.SelectedItems[0];

    foreach (RealEstateProperty prop in properties)
    {
        if (prop.PropertyNumber.Equals(e.Item.SubItems[0].Text))
            pbxProperty.Image = Image.FromFile(prop.PictureFile);
    }

    if( lvwProperties.SelectedItems.Count == 1)
    {
        mnuInsertBefore.Enabled = true;
        mnuEditProperty.Enabled = true;
        mnuInsertAfter.Enabled = true;
        mnuDeleteProperty.Enabled = true;
    }
    else
    {
        mnuInsertBefore.Enabled = false;
        mnuEditProperty.Enabled = false;
        mnuInsertAfter.Enabled = false;
        mnuDeleteProperty.Enabled = false;
    }
}

Scroll down and implement the new event as follows:

private void mnuDeleteProeprty_Click(object sender, EventArgs e)
{
    PropertyEditor editor = new PropertyEditor();
    string Filename = "C:\\Altair Realtors1\\properties.atr";
    DirectoryInfo dirInfo = Directory.CreateDirectory("C:\\Altair Realtors1");

    // Open the file that holds the properties
    if (File.Exists(Filename) == true)
    {
        FileStream stmProperties = new FileStream(Filename,
                                                  FileMode.Open,
                                                  FileAccess.Read);
        BinaryFormatter bfmProperties = new BinaryFormatter();

        properties = (LinkedList<RealEstateProperty>)bfmProperties.Deserialize(stmProperties);
        stmProperties.Close();
        stmProperties.Close();
    }

    // Create a real estate property using the property number that the user double-clicked
    RealEstateProperty rep = new RealEstateProperty();
    string strPropertyNumber = lvwProperties.SelectedItems[0].Text;
    rep.PropertyNumber = lvwProperties.SelectedItems[0].Text;

    // Ask the compiler to locate that property
    LinkedListNode<RealEstateProperty> nodProperty = properties.Find(rep);

    // Just in case, make sure the property was found
    if (nodProperty != null)
    {
        // Present a warning message to the user
        if( MessageBox.Show("Are you sure you want to delete this property?",
                            "Altair Realtors",
                            MessageBoxButtons.YesNoCancel,
                            MessageBoxIcon.Question) == System.Windows.Forms.DialogResult.Yes )
        {
            // If the user clicks yes, delete the property
            properties.Remove(nodProperty);

            // Save the list of properties
            string strFilename = dirInfo.FullName + "\\properties.atr";
            FileStream stmProperties = new FileStream(strFilename,
                                                      FileMode.Create,
                                                      FileAccess.Write);
            BinaryFormatter bfmProperty = new BinaryFormatter();

            bfmProperty.Serialize(stmProperties, properties);
            stmProperties.Close();

            // Show the new list of properties
            ShowProperties();
        }
    }
}

Return to the form and double-click the Close button

Implement it as follows:

private void btnClose_Click(object sender, EventArgs e)
{
    Close();
}

To execute, press F5
Right-click one of the records and click Delete Property
Click No
Right-click another row and click Delete Property
Click Yes
Close the form and return to your programming environment


Home	Copyright © 2010-2016, FunctionX
