Windows Controls: The Checked List Box



Introduction to the Checked List Boxes



Description

A checked list box is a list box whose items are each equipped with a check box. In the following Customize dialog box of Microsoft Office, the control under the Toolbars label is a checked list box:

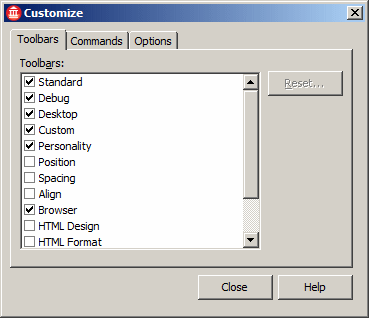

The Customize dialog box


A checked list box combines the functionalities of the list box and the check box controls. As a list box, it displays each of its items on a line. If there are too many items than the control can display, it would be equipped with a vertical scroll bar.

To select an item in the list, the user can click the desired string. The most important and obvious characteristic of the checked list box is that each item displays a check box on its left. This box allows the user to select or deselect each item. To select an item, the user must click its box and not its string, to indicate an explicit selection. This draws a check mark in the box. As described with the check box control, the user can deselect an item by removing the check mark. The check mark indicates that an item is selected and the absence of the check mark indicates the contrary. Like the check box control, you can allow the user to indicate a "half-checked" item. In this case, a check box can appear unchecked, checked, or grayed.



ApplicationApplication: Introducing Checked List Boxes

  1. Start a new Windows Application named AltairRealtors2
  2. On the main menu, click Project ->Add Class...
  3. Set the Name to AvailableProperty and click Add
  4. Change the file as follows:
    using System;

    namespace AltairRealtors2
    {
        public class AvailableProperty
        {
            long propNbr;
            string propType;
            string adrs;
            string ct;
            string  stt;
            int zip;
            short beds;
            float baths;
            double mValue;

            public long PropertyNumber
            {
                get { return propNbr; }
                set { propNbr = value; }
            }

            public string PropertyType
            {
                get { return propType; }
                set { propType = value; }
            }

            public string Address
            {
                get { return adrs; }
                set { adrs = value; }
            }

            public string City
            {
                get { return ct; }
                set { ct = value; }
            }

            public string  State
            {
                get { return stt; }
                set { stt = value; }
            }

            public int ZIPCode
            {
                get { return zip; }
                set { zip = value; }
            }

            public short Bedrooms
            {
                get { return beds; }
                set { beds = value; }
            }

            public float Bathrooms
            {
                get { return baths; }
                set { baths = value; }
            }

            public double MarketValue
            {
                get { return mValue; }
                set { mValue = value; }
            }

            public AvailableProperty()
            {
            }

            public AvailableProperty(long code, string type,
                           string address, string city,
                           string state, int zCode,
                           short bedroom, float bathroom,
                           double value)
            {
                propNbr = code ;
                propType = type ;
                adrs = address ;
                ct = city ;
                stt = state ;
                zip = zCode ;
                beds = bedroom ;
                baths = bathroom ;
                mValue = value;
            }
        }
    }
  5. In the Solution Explorer, right-click Form1.cs and click Rename
  6. Type RealEstate.cs and press Enter twice

Creating a Checked List Box

To support checked list boxes, the .NET Framework provides the CheckedListBox class. At design time, to add a checked list box to your application, from the Common Controls section of the Toolbox, click the CheckedListBox button CheckedListBox and click the form or the container that would host the control. To programmatically create a checked list box, declare a variable of type CheckedListBox, use the new operator to allocate memory for it, and add it to the Controls collection of its parent. Here is an example:

using System;
using System.Drawing;
using System.Windows.Forms;

public class Exercise : System.Windows.Forms.Form
{
    CheckedListBox lbxPersonalRelationships;

    public Exercise()
    {
        InitializeComponent();
    }

    private void InitializeComponent()
    {
        lbxPersonalRelationships = new CheckedListBox();
        lbxPersonalRelationships.Location = new Point(12, 12);

        Controls.Add(lbxPersonalRelationships);
    }
}

public class Program
{
    static int Main()
    {
        System.Windows.Forms.Application.Run(new Exercise());
        return 0;
    }
}

This would produce:

ApplicationApplication: Creating Checked List Boxes

  1. Design the form as follows:

    Altair Realtors

    Control Text Name Other Properties
    Label Label Altair Realtors   BorderStyle: FixedSingle
    Font: Times New Roman, 21.75pt, style=Bold
    Label Label Types to Show
    CheckedListBox   lbxPropertiesTypes
    Button Show btnShow
    Label Label Properties_______   Font: Garamond, 15.75pt, style=Bold
    Label Label Prop #
    Label Label Address
    Label Label City
    Label Label State
    Label Label ZIP Code
    Label Label Beds
    Label Label Baths
    Label Label Market Value
    ListBox ListBox   lbxPropertyNumbers
    ListBox ListBox   lbxAddresses
    ListBox ListBox   lbxCities
    ListBox ListBox   lbxStates
    ListBox ListBox   lbxZIPCodes
    ListBox ListBox   lbxBedrooms
    ListBox ListBox   lbxBathrooms
    ListBox ListBox   lbxMarketValues
    Button Button Close btnClose
  2. Save the form

Characteristics of a Checked List Box



Introduction

The CheckedListBox class is derived from the ListBox class. This means that the checked list box possesses all the public (and protected) characteristics of the list box and its parent the ListControl class. This control also uses the HorizontalScrollbar and the HorizontalExtent properties that behave exactly as we reviewed for the list box. It also uses the SelectionMode property with the same behavior as that of the list box.

Creating the List of Items

As seen for the list box, the primary aspect of a checked list box is its list of items. At design time, to create the list of items of a checked list box, access its Properties window, and click the ellipsis button to open the String Collection Editor. Type each item followed by a carriage return. After creating the list, click OK. To programmatically create the list of items, access the Items property. The list is created from the nested ObjectCollection class that implements the IList, the ICollection, and the IEnumerable interfaces. This means that the CheckedListBox.ObjectCollection class behaves the same as the ListBox.ObjectCollection class. Here is an example:

public class Exercise : System.Windows.Forms.Form
{
    CheckedListBox lbxPersonalRelationships;

    public Exercise()
    {
        InitializeComponent();
    }

    private void InitializeComponent()
    {
        lbxPersonalRelationships = new CheckedListBox();
        lbxPersonalRelationships.Location = new Point(12, 12);

        lbxPersonalRelationships.Items.Add("Family Member");
        lbxPersonalRelationships.Items.Add("Friend");
        lbxPersonalRelationships.Items.Add("Classmate");
        lbxPersonalRelationships.Items.Add("Business Partner");
        lbxPersonalRelationships.Items.Add("Simple Acquaintance");
        lbxPersonalRelationships.Items.Add("Undefined");

        Controls.Add(lbxPersonalRelationships);
    }
}

This would produce:

Remember that you can also add an array of items by calling the AddRange() and you can insert an item using the Insert() method.

ApplicationApplication: Creating a List of Items

  1. On the form, click the checked list box
  2. In the Properties window, click Items and click its ellipsis button
  3. In the String Collection Editor, type Single Families and press Enter
  4. Type Townhouses and press Enter
  5. Type Condominiums and press Enter
  6. Type Trailers and click OK

Checking an Item

As mentioned already, the main difference between a list box and a checked list is the presence of check marks in the former. When using the control, the user can click one or more check boxes. Here is an example:

After the user has clicked a few check boxes, you may want to find out which ones are checked. The checked list box provides two techniques you can use.

As seen for the list box, each item of the control has an index. When one, a few, or all items have been checked (those that display a check mark), the indices of the checked items are stored in a collection represented by the CheckedIndices property. This property is based on the nested CheckedIndexCollection collection class. The CheckedIndexCollection class implements the IList, the ICollection, and the IEnumerable interfaces.

The identifications of the checked items are stored in a collection represented by the CheckedItems property. This property is based on the nested CheckedItemCollection class. The CheckedItemCollection class implements the IList, the ICollection, and the IEnumerable interfaces. This implies that you can use it to get the number of selected items.

When the user has clicked item to put a check mark on it, the control fires the ItemCheck event. Its formula is:

private void lbxPropertiesTypes_ItemCheck(object sender, ItemCheckEventArgs e)
{

}

As you can see, the event is carried by the ItemCheckEventArgs class.

One of the most important operations to perform on a list of selected items is to find out whether a particular item is checked. To get this information, the CheckedItemCollection class provides a method named Contains. Its syntax is:

public bool Contains(object item);

This method takes as argument a value that can identify an item from the checked list box. If the item is found and it is checked, this method returns true. Otherwise, it returns false.

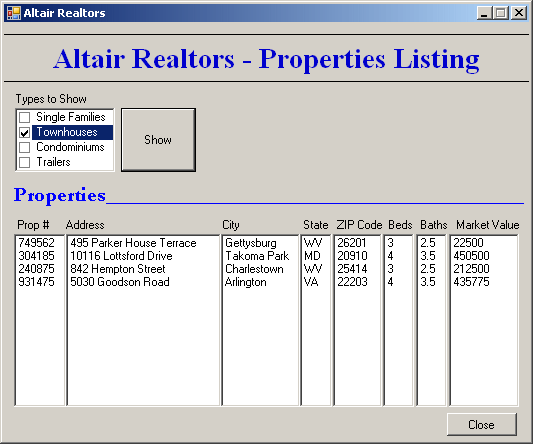

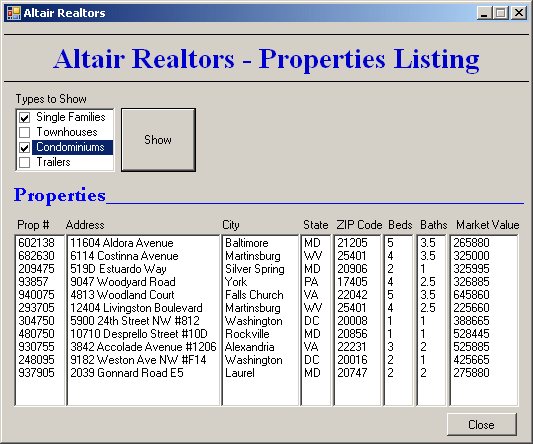

ApplicationApplication: Using the List of Checked Items

  1. Double-click an unoccupied area of the form to generate its Load event
  2. Change the file as follows:
    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Drawing;
    using System.Linq;
    using System.Text;
    using System.Windows.Forms;

    namespace AltairRealtors2
    {
        public partial class RealEstate : Form
        {
            AvailableProperty[] properties = new AvailableProperty[15];

            public RealEstate()
            {
                InitializeComponent();
            }

            private void RealEstate_Load(object sender, EventArgs e)
            {
                properties[0] = new AvailableProperty();
                properties[0].PropertyNumber = 602138;
                properties[0].PropertyType = "Single Family";
                properties[0].Address = "11604 Aldora Avenue";
                properties[0].City = "Baltimore";
                properties[0].State = "MD";
                properties[0].ZIPCode = 21205;
                properties[0].Bedrooms = 5;
                properties[0].Bathrooms = 3.5F;
                properties[0].MarketValue = 265880;

                properties[1] = new AvailableProperty();
                properties[1].PropertyNumber = 749562;
                properties[1].PropertyType = "Townhouse";
                properties[1].Address = "495 Parker House Terrace";
                properties[1].City = "Gettysburg";
                properties[1].State = "WV";
                properties[1].ZIPCode = 26201;
                properties[1].Bedrooms = 3;
                properties[1].Bathrooms = 2.5F;
                properties[1].MarketValue = 225500;

                properties[2] = new AvailableProperty();
                properties[2].PropertyNumber = 304750;
                properties[2].PropertyType = "Condominium";
                properties[2].Address = "5900 24th Street NW #812";
                properties[2].City = "Washington";
                properties[2].State = "DC";
                properties[2].ZIPCode = 20008;
                properties[2].Bedrooms = 1;
                properties[2].Bathrooms = 1.0F;
                properties[2].MarketValue = 388665;

                properties[3] = new AvailableProperty();
                properties[3].PropertyNumber = 682630;
                properties[3].PropertyType = "Single Family";
                properties[3].Address = "6114 Costinna Avenue";
                properties[3].City = "Martinsburg";
                properties[3].State = "WV";
                properties[3].ZIPCode = 25401;
                properties[3].Bedrooms = 4;
                properties[3].Bathrooms = 3.5F;
                properties[3].MarketValue = 325000;

                properties[4] = new AvailableProperty();
                properties[4].PropertyNumber = 480750;
                properties[4].PropertyType = "Condominium";
                properties[4].Address = "10710 Desprello Street #10D";
                properties[4].City = "Rockville";
                properties[4].State = "MD";
                properties[4].ZIPCode = 20856;
                properties[4].Bedrooms = 1;
                properties[4].Bathrooms = 1.0F;
                properties[4].MarketValue = 528445;

                properties[5] = new AvailableProperty();
                properties[5].PropertyNumber = 209475;
                properties[5].PropertyType = "Single Family";
                properties[5].Address = "519D Estuardo Way";
                properties[5].City = "Silver Spring";
                properties[5].State = "MD";
                properties[5].ZIPCode = 20906;
                properties[5].Bedrooms = 2;
                properties[5].Bathrooms = 1.0F;
                properties[5].MarketValue = 325995;

                properties[6] = new AvailableProperty();
                properties[6].PropertyNumber = 304185;
                properties[6].PropertyType = "Townhouse";
                properties[6].Address = "10116 Lottsford Drive";
                properties[6].City = "Takoma Park";
                properties[6].State = "MD";
                properties[6].ZIPCode = 20910;
                properties[6].Bedrooms = 4;
                properties[6].Bathrooms = 3.5F;
                properties[6].MarketValue = 450500;

                properties[7] = new AvailableProperty();
                properties[7].PropertyNumber = 93857;
                properties[7].PropertyType = "Single Family";
                properties[7].Address = "9047 Woodyard Road";
                properties[7].City = "York";
                properties[7].State = "PA";
                properties[7].ZIPCode = 17405;
                properties[7].Bedrooms = 4;
                properties[7].Bathrooms = 2.5F;
                properties[7].MarketValue = 326885;

                properties[8] = new AvailableProperty();
                properties[8].PropertyNumber = 930755;
                properties[8].PropertyType = "Condominium";
                properties[8].Address = "3842 Accolade Avenue #1206";
                properties[8].City = "Alexandria";
                properties[8].State = "VA";
                properties[8].ZIPCode = 22231;
                properties[8].Bedrooms = 3;
                properties[8].Bathrooms = 2.0F;
                properties[8].MarketValue = 525885;

                properties[9] = new AvailableProperty();
                properties[9].PropertyNumber = 240875;
                properties[9].PropertyType = "Townhouse";
                properties[9].Address = "842 Hempton Street";
                properties[9].City = "Charlestown";
                properties[9].State = "WV";
                properties[9].ZIPCode = 25414;
                properties[9].Bedrooms = 3;
                properties[9].Bathrooms = 2.5F;
                properties[9].MarketValue = 212500;

                properties[10] = new AvailableProperty();
                properties[10].PropertyNumber = 940075;
                properties[10].PropertyType = "Single Family";
                properties[10].Address = "4813 Woodland Court";
                properties[10].City = "Falls Church";
                properties[10].State = "VA";
                properties[10].ZIPCode = 22042;
                properties[10].Bedrooms = 5;
                properties[10].Bathrooms = 3.5F;
                properties[10].MarketValue = 645860;

                properties[11] = new AvailableProperty();
                properties[11].PropertyNumber = 931475;
                properties[11].PropertyType = "Townhouse";
                properties[11].Address = "5030 Goodson Road";
                properties[11].City = "Arlington";
                properties[11].State = "VA";
                properties[11].ZIPCode = 22203;
                properties[11].Bedrooms = 4;
                properties[11].Bathrooms = 3.5F;
                properties[11].MarketValue = 435775;

                properties[12] = new AvailableProperty();
                properties[12].PropertyNumber = 248095;
                properties[12].PropertyType = "Condominium";
                properties[12].Address = "9182 Weston Ave NW #F14";
                properties[12].City = "Washington";
                properties[12].State = "DC";
                properties[12].ZIPCode = 20016;
                properties[12].Bedrooms = 2;
                properties[12].Bathrooms = 1.0F;
                properties[12].MarketValue = 425665;

                properties[13] = new AvailableProperty();
                properties[13].PropertyNumber = 293705;
                properties[13].PropertyType = "Single Family";
                properties[13].Address = "12404 Livingston Boulevard";
                properties[13].City = "Martinsburg";
                properties[13].State = "WV";
                properties[13].ZIPCode = 25401;
                properties[13].Bedrooms = 4;
                properties[13].Bathrooms = 2.50F;
                properties[13].MarketValue = 225660;

                properties[14] = new AvailableProperty();
                properties[14].PropertyNumber = 937905;
                properties[14].PropertyType = "Condominium";
                properties[14].Address = "2039 Gonnard Road E5";
                properties[14].City = "Laurel";
                properties[14].State = "MD";
                properties[14].ZIPCode = 20747;
                properties[14].Bedrooms = 2;
                properties[14].Bathrooms = 2;
                properties[14].MarketValue = 275880;
            }
        }
    }
  3. Return to the form
  4. On the form, double-click the Show button and implement its Click event as follows:
    private void btnShow_Click(object sender, EventArgs e)
    {
            lbxPropertyNumbers.Items.Clear();
            lbxAddresses.Items.Clear();
            lbxCities.Items.Clear();
            lbxStates.Items.Clear();
            lbxZIPCodes.Items.Clear();
            lbxBedrooms.Items.Clear();
            lbxBathrooms.Items.Clear();
            lbxMarketValues.Items.Clear();

            if (lbxPropertiesTypes.CheckedItems.Contains("Single Families"))
            {
                    foreach (AvailableProperty prop in properties)
                    {
                        if (prop.PropertyType == "Single Family")
                        {
                            lbxPropertyNumbers.Items.Add(prop.PropertyNumber.ToString());
                            lbxAddresses.Items.Add(prop.Address);
                            lbxCities.Items.Add(prop.City);
                            lbxStates.Items.Add(prop.State);
                            lbxZIPCodes.Items.Add(prop.ZIPCode);
                            lbxBedrooms.Items.Add(prop.Bedrooms);
                            lbxBathrooms.Items.Add(prop.Bathrooms);
                            lbxMarketValues.Items.Add(prop.MarketValue);
                        }
                    }
            }

            if (lbxPropertiesTypes.CheckedItems.Contains("Townhouses"))
            {
                    foreach (AvailableProperty prop in properties)
                    {
                        if (prop.PropertyType == "Townhouse")
                        {
                            lbxPropertyNumbers.Items.Add(prop.PropertyNumber.ToString());
                            lbxAddresses.Items.Add(prop.Address);
                            lbxCities.Items.Add(prop.City);
                            lbxStates.Items.Add(prop.State);
                            lbxZIPCodes.Items.Add(prop.ZIPCode);
                            lbxBedrooms.Items.Add(prop.Bedrooms);
                            lbxBathrooms.Items.Add(prop.Bathrooms);
                            lbxMarketValues.Items.Add(prop.MarketValue);
                        }
                    }
            }

            if (lbxPropertiesTypes.CheckedItems.Contains("Condominiums"))
            {
                    foreach (AvailableProperty prop in properties)
                    {
                        if (prop.PropertyType == "Condominium")
                        {
                            lbxPropertyNumbers.Items.Add(prop.PropertyNumber.ToString());
                            lbxAddresses.Items.Add(prop.Address);
                            lbxCities.Items.Add(prop.City);
                            lbxStates.Items.Add(prop.State);
                            lbxZIPCodes.Items.Add(prop.ZIPCode);
                            lbxBedrooms.Items.Add(prop.Bedrooms);
                            lbxBathrooms.Items.Add(prop.Bathrooms);
                            lbxMarketValues.Items.Add(prop.MarketValue);
                        }
                    }
            }
    }
  5. Return to the form and double-click the Close button
  6. Implement its event as follows:
    private void btnClose_Click(object sender, EventArgs e)
    {
            Close();
    }
  7. Execute the application and test the checked list box

  8. Close the form and return to your programming environment
  9. To make sure that when a user clicks an item in one list box, the corresponding item gets selected in the other list boxes, on the form, click the Prop # list box
  10. Press and hold Shift
  11. Click each of the other list boxes
  12. Release Shift
  13. In the Properties window, click the Events button and double-click SelectedIndexChanged
  14. Implement the event as follows:
    private void lbxPropertyNumbers_SelectedIndexChanged(object sender, EventArgs e)
    {
        lbxMarketValues.SelectedIndex  = lbxBathrooms.SelectedIndex =
            lbxBedrooms.SelectedIndex  = lbxZIPCodes.SelectedIndex =
            lbxStates.SelectedIndex    = lbxCities.SelectedIndex =
            lbxAddresses.SelectedIndex = lbxPropertyNumbers.SelectedIndex;
    }
  15. Return to the form

Automatically Checking an Item When Clicked

From its default implementation, when a checked list box is presented to the user, when an item is clicked, its string gets highlighted but no check mark is put in the box. To put a check mark on the item, the user must click it again. This is not an anomaly. It is purposely so the user would know the difference between an item that is selected and one that is checked.

To support the ability to automatically put a check mark on an item when the user clicks it, the CheckedListBox provides the CheckOnClick Boolean property. Its default value is False. If you want the items to be automatically checked, set this property to true.

On an existing checked list box, to find out if the its items are automatically checked, get the value of the CheckOnClick property.

Application Application: Automatically Checking an Item

  1. On the form, click the checked list box
  2. In the Properties window, double-click CheckOnClick to set its value to True
  3. Save the form

3-D Checked Items

After creating the list, each item appears with a flat check box to its left. If you want a 3-D check box, you can change the Boolean ThreeDCheckBoxes property from its False default to a True value:

ThreeDCheckBoxes
False True
Checked Box



Home Copyright © 2010-2016, FunctionX
