Microsoft Visual C# Application: College Parc Auto-Repair

	Application Application: College Parc Auto-Repair

Introduction

A data grid view is a flexible control that makes it possible to display a collection of values. This application explores some of its features, including the ability the save the values of a data grid view in a regular text-based file.

Application: Creating the Application

Start Microsoft Visual C#
Create a new Windows Application named CollegeParkAutoRepair1
In the Solution Explorer, right-click Form1.cs and click Rename
Type CollegeParkAutoRepair.cs and press Enter
In the Menus & Toolbars section of the Toolbox, click MenuStrip and click the form
Under the form, right-click menuStrip1 and click Insert Standard Items
In the Menus & Toolbars section of the Toolbox, click StatusStrip and click the form

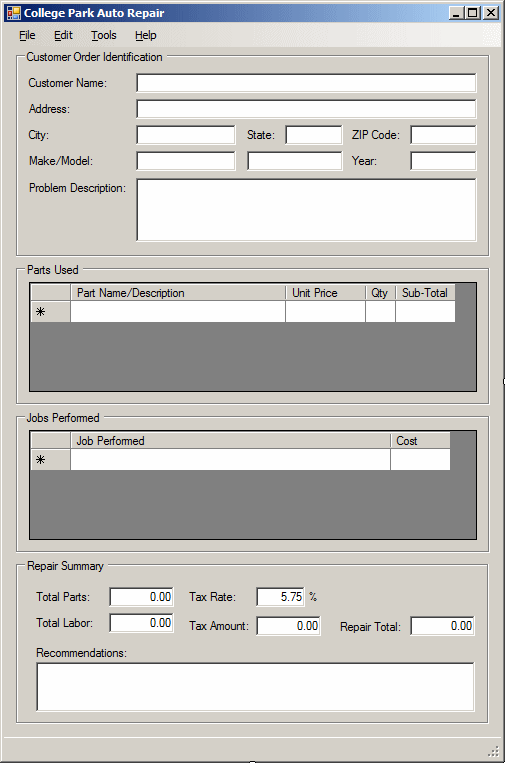

Design the form as follows:

Control

Name

Text

Other Properties

GroupBox

Order Identification

Label

Customer Name:

TextBox

txtCustomerName

Label

Address

TextBox

txtAddress

Label

City:

TextBox

txtCity

Label

State:

TextBox

txtState

Label

ZIP Code:

TextBox

txtZIPCode

TextAlign: Right

Label

Make / Model:

TextBox

txtMake

TextBox

txtModel

Label

Year:

TextBox

txtCarYear

TextAlign: Right

Label

Problem Description:

TextBox

txtProblem

Mutltiline: True

GroupBox

Parts Used

DataGridView

dgvPartsUsed

Columns

Header Text	Name	Width
Part Name/Description	colPartName	215
Unit Price	colUnitPrice	80
Qty	colQuantity	30
Sub-Total	colSubTotal	60

GroupBox

Jobs Performed

DataGridView

dgvJobsPerformed

Columns

Header Text	Name	Width
Job Performed	colJobPerformed	320
Cost	colCost	60

GroupBox

Repair Summary

Label

Total Parts:

TextBox

txtTotalParts

0.00

TextAlign: Right

Label

Tax Rate:

TextBox

txtTaxRate

5.75

TextAlign: Right

Label

Total Labor:

TextBox

txtTotalLabor

0.00

TextAlign: Right

Label

Tax Amount:

TextBox

txtTaxAmount

0.00

TextAlign: Right

Label

RepairTotal:

TextBox

txtRepairTotal

0.00

TextAlign: Right

Label

Recommendations

TextBox

txtRecommendations

Multiline: True

OpenFileDialog

dlgOpen

DefaultExt: rpr
Filter: Repair Orders (*.rpr)|*.rpr|All Files|
Title: Open Existing Repair Order

SaveFileDialog

dlgSave

DefaultExt: rpr
Filter: Repair Orders (*.rpr)|*.rpr|All Files|
Title: Save Current Repair Order

PrintDocument

docPrint

PrintDialog

dlgPrint

Document: docPrint

PageSetupDialog

dlgPageSetup

Document: docPrint

PrintPreviewDialog

dlgPrintPreview

Document: docPrint

On the form, click the data grid view in the Parts Used group
In the properties window, click Events and double-click CellLeave

Implement the event as follows:

void CalculateTotal()
{
    double taxRate = 0d, taxAmount = 0d;
    double totalParts = 0d, totalLabor = 0d, totalPartsAndLabor, repairTotal;

    foreach( DataGridViewRow record in dgvPartsUsed.Rows)
    {
        try
        {
            totalParts += double.Parse(record.Cells[3].EditedFormattedValue.ToString());
            txtTotalParts.Text = totalParts.ToString("F");
        }
        catch (FormatException)
        {
        }
    }

    foreach (DataGridViewRow record in dgvJobsPerformed.Rows)
    {
        try
        {
            totalLabor += double.Parse(record.Cells[1].EditedFormattedValue.ToString());
            txtTotalLabor.Text = totalLabor.ToString("F");
        }
        catch (FormatException)
        {
        }
    }

    try
    {
        taxRate = double.Parse(txtTaxRate.Text);
    }
    catch (FormatException)
    {
        MessageBox.Show("Invalid Tax Rate");
        txtTaxRate.Text = "5.75";
        txtTaxRate.Focus();
    }

    totalPartsAndLabor = totalParts + totalLabor;

    taxAmount = totalPartsAndLabor * taxRate / 100;
    repairTotal = totalPartsAndLabor + taxAmount;

    txtTotalParts.Text = totalParts.ToString("F");
    txtTotalLabor.Text = totalLabor.ToString("F");
    txtTaxAmount.Text = taxAmount.ToString("F");
    txtRepairTotal.Text = repairTotal.ToString("F");
}

private void dgvPartsUsed_CellLeave(object sender, DataGridViewCellEventArgs e)
{
    if (e.ColumnIndex == 2)
    {
        double unitPrice = 0D;
        int quantity = 0;
        double subTotal = 0D;

        DataGridViewCell dgvcUnitPrice = dgvPartsUsed.Rows[e.RowIndex].Cells[1];
        DataGridViewCell dgvcQuantity = dgvPartsUsed.Rows[e.RowIndex].Cells[e.ColumnIndex];

        unitPrice = double.Parse(dgvcUnitPrice.EditedFormattedValue.ToString());
        quantity = int.Parse(dgvcQuantity.EditedFormattedValue.ToString());
        subTotal = unitPrice * quantity;
        dgvPartsUsed.Rows[e.RowIndex].Cells[3].Value = subTotal.ToString("F");

        CalculateTotal();
    }
}

Return to the form
Click the Jobs Performed data grid view
In the Events section of the properties window, double-click CellLeave

Implement the event as follows:

private void dgvJobsPerformed_CellLeave(object sender, DataGridViewCellEventArgs e)
{
    CalculateTotal();
}

Return to the form
On the form, click File and double-click New Repair Order

Implement its Click event as follows:

private void newToolStripMenuItem_Click(object sender, EventArgs e)
{
    txtCustomerName.Text = "";
    txtAddress.Text = "";
    txtCity.Text = "";
    txtState.Text = "";
    txtZIPCode.Text = "";
    txtMake.Text = "";
    txtModel.Text = "";
    txtYear.Text = "";
    txtProblemDescription.Text = "";

    dgvPartsUsed.Rows.Clear();
    dgvJobsPerformed.Rows.Clear();

    txtTotalParts.Text = "0.00";
    txtTotalLabor.Text = "0.00";
    txtTaxRate.Text = "7.75";
    txtTaxAmount.Text = "0.00";
    txtRepairTotal.Text = "0.00";

    txtRecommendations.Text = "";
    txtCustomerName.Focus();
}

In the top section of the file, type the following:

using System;
using System.ComponentModel;
using System.Collections;
using System.Windows.Forms;
using System.Data;
using System.Drawing;
using System.Linq;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;

Return to the form
On the form, click File and double-click Save As...

Implement its Click event as follows:

private void saveAsToolStripMenuItem_Click(object sender, EventArgs e)
{
    // Just in case, calculate the order now
    CalculateTotal();

    // Check the folder that will contain the repair order.
    // If it exists, don't create it.
    // If it doesn't exist, then create it
    string strDirectory = @"C:\College Park Auto Repair";
    DirectoryInfo dirInfo = Directory.CreateDirectory(strDirectory);

    // Prepare to create a repair order
    RepairOrder order = new RepairOrder();


    // Display the Save As dialog box.
    // Select the above directory
    dlgSave.InitialDirectory = strDirectory;
    // Check if the user clicked OK
    if (dlgSave.ShowDialog() == System.Windows.Forms.DialogResult.OK)
    {
        // If the user clicked OK, create a repair order
        order.CustomerName = txtCustomerName.Text;
        order.Address = txtAddress.Text;
        order.City = txtCity.Text;
        order.State = txtState.Text;
        order.ZIPCode = txtZIPCode.Text;
        order.Make = txtMake.Text;
        order.Model = txtModel.Text;
        order.Year = int.Parse(txtYear.Text);
        order.ProblemDescription = txtProblemDescription.Text;

        // Check whether the Parts Used data grid view contains some records.
        // If it does, save them
        if (dgvPartsUsed.Rows.Count > 1)
        {
            List<Part> parts = new List<Part>();

            for (int row = 0; row < dgvPartsUsed.Rows.Count - 1; row++ )
            {
                Part prt = new Part();
                prt.PartName = dgvPartsUsed.Rows[row].Cells[0].EditedFormattedValue.ToString();
                prt.UnitPrice = double.Parse(dgvPartsUsed.Rows[row].Cells[1].EditedFormattedValue.ToString());
                prt.Quantity = int.Parse(dgvPartsUsed.Rows[row].Cells[2].EditedFormattedValue.ToString());
                prt.SubTotal = double.Parse(dgvPartsUsed.Rows[row].Cells[3].EditedFormattedValue.ToString());
                parts.Add(prt);
            }
            order.Parts = parts;
        }
        else // If the data grid view is empty, flag its value as null
            order.Parts = null;

        if (dgvJobsPerformed.Rows.Count > 1)
        {
            List<JobPerformed> work = new List<JobPerformed>();

            for (int row = 0; row < dgvJobsPerformed.Rows.Count - 1; row++)
            {
                JobPerformed done = new JobPerformed();
                done.Job = dgvJobsPerformed.Rows[row].Cells[0].EditedFormattedValue.ToString();
                done.Cost = double.Parse(dgvJobsPerformed.Rows[row].Cells[1].EditedFormattedValue.ToString());
                work.Add(done);
            }

            order.Jobs = work;
        }

        order.TotalParts = double.Parse(txtTotalParts.Text);
        order.TotalLabor = double.Parse(txtTotalLabor.Text);
        order.TaxRate = double.Parse(txtTaxRate.Text);
        order.TaxAmount = double.Parse(txtTaxAmount.Text);
        order.RepairTotal = double.Parse(txtRepairTotal.Text);
        order.Recommendations = txtRecommendations.Text;

        FileStream stmRepair = new FileStream(dlgSave.FileName,
                                                   FileMode.Create);
        BinaryFormatter bfmRepair = new BinaryFormatter();
        bfmRepair.Serialize(stmRepair, order);

        stmRepair.Close();
        newToolStripMenuItem_Click(sender, e);
    }
}

Return to the form
On the form, click File and double-click Open...

Implement the event as follows:

private void openToolStripMenuItem_Click(object sender, EventArgs e)
{
    dlgOpen.InitialDirectory = @"C:\College Park Auto Repair";

    if (dlgOpen.ShowDialog() == DialogResult.OK)
    {
        FileStream stmRepair = new FileStream(dlgOpen.FileName,
                                         FileMode.Open);
        BinaryFormatter bnrRepair = new BinaryFormatter();
        RepairOrder order = (RepairOrder)bnrRepair.Deserialize(stmRepair);

        txtCustomerName.Text = order.CustomerName;
        txtAddress.Text      = order.Address;
        txtCity.Text         = order.City;
        txtState.Text        = order.State;
        txtZIPCode.Text      = order.ZIPCode;
        txtMake.Text         = order.Make;
        txtModel.Text        = order.Model;
        txtYear.Text         = order.Year.ToString();
        txtProblemDescription.Text = order.ProblemDescription;

        int i = 0;
        foreach (Part prt in order.Parts)
        {
            dgvPartsUsed.Rows.Add();

            dgvPartsUsed.Rows[i].Cells[0].Value = prt.PartName;
            dgvPartsUsed.Rows[i].Cells[1].Value = prt.UnitPrice.ToString("F");
            dgvPartsUsed.Rows[i].Cells[2].Value = prt.Quantity.ToString();
            dgvPartsUsed.Rows[i].Cells[3].Value = prt.SubTotal.ToString("F");
            i++;
        }

        i = 0;
        foreach (JobPerformed jp in order.Jobs)
        {
            dgvJobsPerformed.Rows.Add();

            dgvJobsPerformed.Rows[i].Cells[0].Value = jp.Job;
            dgvJobsPerformed.Rows[i].Cells[1].Value = jp.Cost;
            i++;
        }

        txtTotalParts.Text  = order.TotalParts.ToString("F");
        txtTotalLabor.Text  = order.TotalLabor.ToString("F");
        txtTaxRate.Text     = order.TaxRate.ToString("F");
        txtTaxAmount.Text   = order.TaxAmount.ToString("F");
        txtRepairTotal.Text = order.RepairTotal.ToString("F");
        txtRecommendations.Text = order.Recommendations;

        stmRepair.Close();
    }
}

On the form, click one of the multiline text boxes
In the Properties window, click ScrollBars, then click the arrow of its field, and select Vertical
On the form, click the other multiline text boxes
In the Properties window, double-click ScrollBars until it displays Vertical
To execute the application, press F5

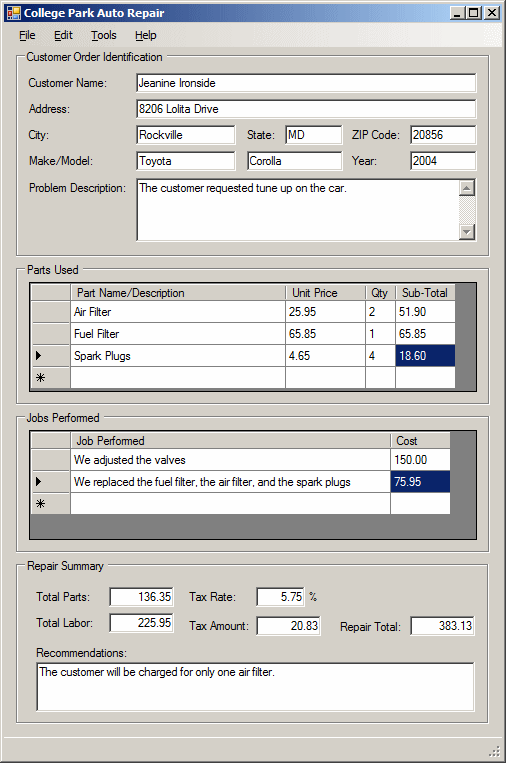

Create a repair order. Here is an example:
On the main menu of the form, click File -> Save As...
Set the name to 100001 and click Save
Create another order, calculate it and save it
Try opening a previously saved order
Close the form and return to your programming environment
