XML-Based Application: Altair Realtors

	XML-Based Application: Altair Realtors

Introduction

This application is used to review such XML characteristics as the attributes of an XML element.

Practical Learning: Introducing XML Attributes

Start Microsoft Visual Studio and create a Windows Application named AltairRealtors1
To create a new form, on the main menu, click Projects -> Add Windows Form...
Set the Name to PropertyEditor and click Add

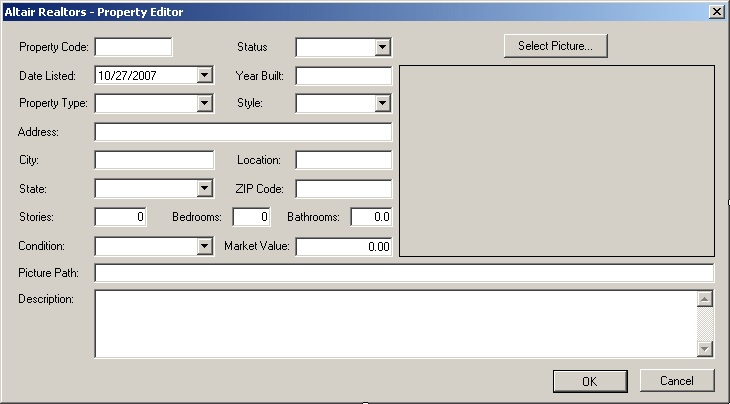

Design the form as follows:

Control	Text	Name	Other Properties
Label	Property Code:
TextBox		txtPropertyCode	Modifiers: Public
Label	Status
ComboBox		cbxStatus	Modifiers: Public Items: Sold Available Needs Repair
Label
DateTimePicker		dtpDateListed	Modifiers: Public Format: Short
Label	Year Built:
TextBox		txtYearBuilt
Label	Property Type:
ComboBox		cbxPropertyTypes	Modifiers: Public Items: Unknown Single Family Townhouse Condominium
Label	Style:
ComboBox		cbxStyles	Modifiers: Public Items: Farm Colonial Victorian Contemporary
Label	Address:
TextBox		txtAddress	Modifiers: Public
Label	City:
TextBox		txtCity	Modifiers: Public
Label	Location:
TextBox		txtLocation	Modifiers: Public
Label	State:
ComboBox		cbxStates	Modifiers: Public Items: DC MD PA VA WV
Label	ZIP Code:
TextBox		txtZIPCode	Modifiers: Public
Label	Stories
TextBox	0	txtStories	Modifiers: Public
Label	Bedrooms:
TextBox	0	txtBedrooms	Modifiers: Public
Label	Bathrooms:
TextBox	0.0	txtBathrooms	Modifiers: Public
Label	Condition:
ComboBox		cbxConditions	Modifiers: Public Items: Good Excellent Needs Repairs
Label	Market Value:
TextBox	0.00	txtMarketValue	Modifiers: Public
Label	Picture Path:
TextBox		txtPicturePath	Modifiers: Public Enabled: False
Button	Select Picture...	btnPicture
PictureBox		pbxProperty	Modifiers: Public SizeMode: Zoom
Button	OK	btnOK	DialogResult: OK
Button	Cancel	btnCancel	DialogResult: Cancel
OpenFileDialog	(Name): dlgPicture Title: Select Property Picture DefaultExt: jpg Filter: JPEG Files (.jpg,.jpeg)\|.jpg\|GIF Files (.gif)\|.gif\|Bitmap Files (.bmp)\|.bmp\|PNG Files (.png)\|*.png

Form

FormBorderStyle:

FixedDialog

Text:

Altair Realtors - Property Editor

StartPosition:

CenterScreen

AcceptButton:

btnOK

CancelButton:

btnCancel

MaximizeBox:

False

MinimizeBox:

False

ShowInTaskBar:

False

Double-click the Select Picture button and implement its event as follows:

private void btnPicture_Click(object sender, EventArgs e)
{
    if (dlgPicture.ShowDialog() == DialogResult.OK)
    {
        txtPicturePath.Text = dlgPicture.FileName;
        pbxProperty.Image = Image.FromFile(txtPicturePath.Text);
    }
}

In the Solution Explorer, right-click Form1.cs and click Rename
Type AltairRealtor.cs and press Enter twice (to display that form)
From the Toolbox, add a ListView to the form

While the new list view is still selected, in the Properties window, click the ellipsis button of the Columns field and create the columns as follows:

(Name)	Text	TextAlign	Width
colIndex	#		40
colPropertyCode	Prop Code	Center	65
colPropertyType	Property Type		80
colPropertyCondition	Condition		65
colLocation	Location		70
colStories	Stories	Right	45
colBedrooms	Bedrooms	Right	62
colBathrooms	Bathrooms	Right	62
colMarketValue	Market Value	Right	75

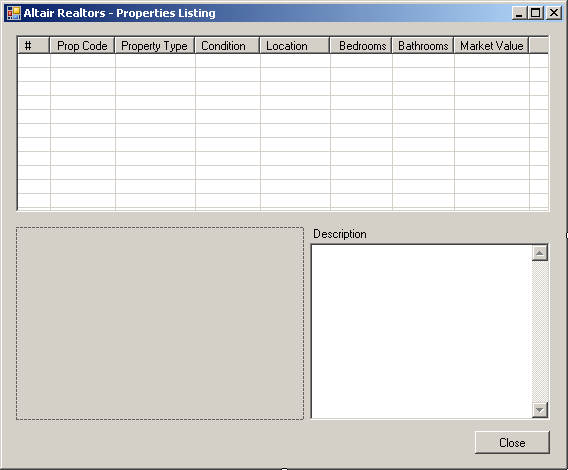

Design the form as follows:

Control	Text	Name	Other Properties
ListView		lvwAllocations	View: Details GridLines: True FullRowSelect: True Anchor: Top, Bottom, Left, Right
PictureBox		pbxProperty	Anchor: Bottom, Left
Label	Description		Anchor: Bottom, Right
TextBox		txtDescription	Multiline: True Anchor: Bottom, Right
Button	New Property...	btnNewProperty	Anchor: Bottom, Right
Button	Close	btnClose	Anchor: Bottom, Right

Based on what we learned in previous lessons, double-click the New Property button and implement its Click event as follows:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.IO;
using System.Xml;

namespace AltairRealtors5a
{
    public partial class AltairRealtor : Form
    {
        public AltairRealtor()
        {
            InitializeComponent();
        }

        private void btnNewProperty_Click(object sender, EventArgs e)
        {
            // Get a reference to the property editor
            PropertyEditor editor = new PropertyEditor();
            string strFilename = "properties.xml";

            if (editor.ShowDialog() == DialogResult.OK)
            {
                string PropertyType, Location;
                int Stories, Bedrooms;
                float Bathrooms;
                double MarketValue;

                // We will need a reference to the XML document
                XmlDocument docProperties = new XmlDocument();

                // Find out if the file exists already
                // If it doesn't, then create it
                if (!File.Exists(strFilename))
                {
            docProperties.LoadXml("<?xml version=\"1.0\" encoding=\"utf-8\"?>" +
                                  "<Listing></Listing>");
                    docProperties.Save(strFilename);
                }

                // Open the XML file
                docProperties.Load(strFilename);

                // Get a reference to the root node
                XmlElement nodRoot = docProperties.DocumentElement;

                PropertyType = editor.cbxPropertyTypes.Text;
                Location = editor.txtLocation.Text;
                Stories = int.Parse(editor.txtStories.Text);
                Bedrooms = int.Parse(editor.txtBedrooms.Text);
                Bathrooms = float.Parse(editor.txtBathrooms.Text);
                MarketValue = double.Parse(editor.txtMarketValue.Text);

                // Get a reference to the root element
                XmlElement elmRoot = docProperties.DocumentElement;
                // Create a node named Property
                XmlElement elmProperty = docProperties.CreateElement("Property");
                // Add it to the root element
                elmRoot.AppendChild(elmProperty);

                // Create a node named PropertyType
                elmProperty = docProperties.CreateElement("PropertyType");
                XmlText txtProperty = docProperties.CreateTextNode(PropertyType);
                elmRoot.LastChild.AppendChild(elmProperty);
                elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                // Create a node named Location
                elmProperty = docProperties.CreateElement("Location");
                txtProperty = docProperties.CreateTextNode(Location);
                elmRoot.LastChild.AppendChild(elmProperty);
                elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                // Create a node named Stories
                elmProperty = docProperties.CreateElement("Stories");
                txtProperty = docProperties.CreateTextNode(Stories.ToString());
                elmRoot.LastChild.AppendChild(elmProperty);
                elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                // Create a node named Bedrooms
                elmProperty = docProperties.CreateElement("Bedrooms");
                txtProperty = docProperties.CreateTextNode(Bedrooms.ToString());
                elmRoot.LastChild.AppendChild(elmProperty);
                elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                // Create a node named Bathrooms
                elmProperty = docProperties.CreateElement("Bathrooms");
            txtProperty = docProperties.CreateTextNode(Bathrooms.ToString("F"));
                elmRoot.LastChild.AppendChild(elmProperty);
                elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                // Create a node named MarketValue
                elmProperty = docProperties.CreateElement("MarketValue");
            txtProperty = docProperties.CreateTextNode(MarketValue.ToString("F"));
                elmRoot.LastChild.AppendChild(elmProperty);
                elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                // Save the XML file
                docProperties.Save(strFilename);
            }
        }
    }
}

Execute the application
Click the New Property button

Enter the following pieces of information:

Property Type	Single Family
Location	White Oak
Stories	2
Bedrooms	3
Bathrooms	2.5
Market Value	365580

Click OK
Close the form and return to your programming environment

From the main menu of Visual Studio, open the properties.xml file from the AltairRealtors5\AltairRealtors\bin\Debug folder:

<?xml version="1.0" encoding="utf-8"?>
<Listing>
  <Property>
    <PropertyType>Single Family</PropertyType>
    <Location>White Oak</Location>
    <Stories>2</Stories>
    <Bedrooms>3</Bedrooms>
    <Bathrooms>2.50</Bathrooms>
    <MarketValue>365580.00</MarketValue>
  </Property>
</Listing>

Display the AltairRealtors.cs file

Practical Learning: Creating an Attribute

To set attributes of a node, change the file as follows:

private void btnNewProperty_Click(object sender, EventArgs e)
{
    // Get a reference to the property editor
    PropertyEditor editor = new PropertyEditor();

    string strFilename = "properties.xml";

    Random rnd = new Random();
    editor.txtPropertyCode.Text = rnd.Next(100, 999).ToString() +
                                  "-" + rnd.Next(100, 999).ToString();

    if (editor.ShowDialog() == DialogResult.OK)
    {
        string PropertyCode, PropertyType, Location, SaleStatus;
        int Stories, Bedrooms;
        float Bathrooms;
        double MarketValue;

        // We will need a reference to the XML document
        XmlDocument docProperties = new XmlDocument();

        // Find out if the file exists already
        // If it doesn't, then create it
        if (!File.Exists(strFilename))
        {
            docProperties.LoadXml("<?xml version=\"1.0\" encoding=\"utf-8\"?>" +
                                  "<Listing></Listing>");
            docProperties.Save(strFilename);
        }

        // Open the XML file
        docProperties.Load(strFilename);

        // Get a reference to the root node
        XmlElement nodRoot = docProperties.DocumentElement;

        PropertyCode = editor.txtPropertyCode.Text;
        SaleStatus = editor.cbxStatus.Text;
        PropertyType = editor.cbxPropertyTypes.Text;
        Location = editor.txtLocation.Text;
        Stories = int.Parse(editor.txtStories.Text);
        Bedrooms = int.Parse(editor.txtBedrooms.Text);
        Bathrooms = float.Parse(editor.txtBathrooms.Text);
        MarketValue = double.Parse(editor.txtMarketValue.Text);

        // Get a reference to the root element
        XmlElement elmRoot = docProperties.DocumentElement;
        // Create a node named Property
        XmlElement elmProperty = docProperties.CreateElement("Property");

        // Create an attribute for the Propety node
        elmProperty.SetAttribute("Code", PropertyCode);

        // Create an attribute for the Propety node
        elmProperty.SetAttribute("Status", SaleStatus);

        // Add it to the root element
        elmRoot.AppendChild(elmProperty);

        // Create a node named PropertyType
        . . . No Change
    }
}

Execute the application
Click the New Property button

Enter the following pieces of information:

Status	Sold
Property Type	Single Family
Location	Arlington Cemetery
Stories	3
Bedrooms	5
Bathrooms	3.5
Market Value	675880

Click OK
Close the form and return to your programming environment

In Visual Studio, access the properties.xml tab to see the file (the value of the Code attribute will be different from yours):

<?xml version="1.0" encoding="utf-8"?>
<Listing>
  <Property>
    <PropertyType>Single Family</PropertyType>
    <Location>White Oak</Location>
    <Stories>2</Stories>
    <Bedrooms>3</Bedrooms>
    <Bathrooms>2.50</Bathrooms>
    <MarketValue>365580.00</MarketValue>
  </Property>
  <Property Code="700-326" Status="Sold">
    <PropertyType>Single Family</PropertyType>
    <Location>Arlington Cemetery</Location>
    <Stories>3</Stories>
    <Bedrooms>5</Bedrooms>
    <Bathrooms>3.50</Bathrooms>
    <MarketValue>675880.00</MarketValue>
  </Property>
</Listing>

Display the AltairRealtors.cs file

Practical Learning: Adding an Attribute to an Element

To add a few attributes, change the file as follows:

private void btnNewProperty_Click(object sender, EventArgs e)
{
    // Get a reference to the property editor
    PropertyEditor editor = new PropertyEditor();
    // If this directory doesn't exist, create it
    Directory.CreateDirectory(@"C:\Altair Realtors");
    // This is the XML file that holds the list of proeprties
    string strFilename = @"C:\Altair Realtors\properties.xml";

    Random rnd = new Random();
    editor.txtPropertyCode.Text = rnd.Next(100, 999).ToString() +
                                  "-" + rnd.Next(100, 999).ToString();

    if (editor.ShowDialog() == DialogResult.OK)
    {
        string PropertyCode, PropertyType, Location,
               SaleStatus, Style, Condition;
        int YearBuilt, Stories, Bedrooms;
        float Bathrooms;
        double MarketValue;

        // We will need a reference to the XML document
        XmlDocument docProperties = new XmlDocument();

        // Find out if the file exists already
        // If it doesn't, then create it
        if (!File.Exists(strFilename))
        {
            docProperties.LoadXml("<?xml version=\"1.0\" encoding=\"utf-8\"?>" +
                                  "<Listing></Listing>");
            docProperties.Save(strFilename);
        }

        // Open the XML file
        docProperties.Load(strFilename);

        // Get a reference to the root node
        XmlElement nodRoot = docProperties.DocumentElement;

        PropertyCode = editor.txtPropertyCode.Text;
        SaleStatus = editor.cbxStatus.Text;
        YearBuilt = int.Parse(editor.txtYearBuilt.Text);
        PropertyType = editor.cbxPropertyTypes.Text;
        Style = editor.cbxStyle.Text;
        Condition = editor.cbxConditions.Text;
        Bedrooms = int.Parse(editor.txtBedrooms.Text);
        Bathrooms = float.Parse(editor.txtBathrooms.Text);
        MarketValue = double.Parse(editor.txtMarketValue.Text);

        // Get a reference to the root element
        XmlElement elmRoot = docProperties.DocumentElement;
        // Create a node named Property
        XmlElement elmProperty = docProperties.CreateElement("Property");

        // Create an attribute for the Propety node
        elmProperty.SetAttribute("Code", PropertyCode);

        // Create an attribute for the Propety node
        elmProperty.SetAttribute("Status", SaleStatus);
        // Add it to the root element
        elmRoot.AppendChild(elmProperty);

        // Create a node named Property
        elmProperty = docProperties.CreateElement("DateListed");
        elmRoot.LastChild.AppendChild(elmProperty);

        // Create an attribute for the DateListed element
        XmlAttribute atrProperty = docProperties.CreateAttribute("YearBuilt");
        atrProperty.Value = YearBuilt.ToString();
        elmProperty.SetAttributeNode(atrProperty);

        // Create a node named PropertyType
        elmProperty = docProperties.CreateElement("PropertyType");
        XmlText txtProperty = docProperties.CreateTextNode(PropertyType);
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Create an attribute for the PropertyType element
        atrProperty = docProperties.CreateAttribute("Style");
        atrProperty.Value = Style;
        elmProperty.SetAttributeNode(atrProperty);

        // Create an attribute for the PropertyType element
        atrProperty = docProperties.CreateAttribute("Condition");
        atrProperty.Value = Condition;
        elmProperty.SetAttributeNode(atrProperty);

        // Create a node named Location
        elmProperty = docProperties.CreateElement("Location");
        txtProperty = docProperties.CreateTextNode(Location);
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        . . . No Change

        // Save the XML file
        docProperties.Save(strFilename);
    }
}

Practical Learning: Adding Attributes

To add a few attributes, change the file as follows:

private void btnNewProperty_Click(object sender, EventArgs e)
{
    // Get a reference to the property editor
    PropertyEditor editor = new PropertyEditor();
    // If this directory doesn't exist, create it
    string strDirectory = @"C:\Altair Realtors";
    Directory.CreateDirectory(strDirectory);
    // This is the XML file that holds the list of proeprties
    string strFilename = @"C:\Altair Realtors\properties.xml";

    Random rnd = new Random();
    editor.txtPropertyCode.Text = rnd.Next(100, 999).ToString() +
                                  "-" + rnd.Next(100, 999).ToString();
    string strPicturePath;

    if (editor.ShowDialog() == DialogResult.OK)
    {
        string PropertyCode, PropertyType, Location,
        SaleStatus, Style, Condition,
        Address, City, State, ZIPCode, Description;
        DateTime DateListed;
        int YearBuilt, Stories, Bedrooms;
        float Bathrooms;
        double MarketValue;

        // We will need a reference to the XML document
        XmlDocument docProperties = new XmlDocument();

        // Find out if the file exists already
        // If it doesn't, then create it
        if (!File.Exists(strFilename))
        {
            docProperties.LoadXml("<?xml version=\"1.0\" encoding=\"utf-8\"?>" +
                                  "<Listing></Listing>");
            docProperties.Save(strFilename);
        }

        // Open the XML file
        docProperties.Load(strFilename);

        // Get a reference to the root node
        XmlElement nodRoot = docProperties.DocumentElement;

        PropertyCode = editor.txtPropertyCode.Text;
        SaleStatus = editor.cbxStatus.Text;
        DateListed = editor.dtpDateListed.Value;
        YearBuilt = int.Parse(editor.txtYearBuilt.Text);
        PropertyType = editor.cbxPropertyTypes.Text;
        Style = editor.cbxStyle.Text;
        Condition = editor.cbxConditions.Text;
        Location = editor.txtLocation.Text;
        Address = editor.txtAddress.Text;
        City = editor.txtCity.Text;
        State = editor.cbxStates.Text;
        ZIPCode = editor.txtZIPCode.Text;
        Stories = int.Parse(editor.txtStories.Text);
        Bedrooms = int.Parse(editor.txtBedrooms.Text);
        Bathrooms = float.Parse(editor.txtBathrooms.Text);
        Description = editor.txtDescription.Text;
        MarketValue = double.Parse(editor.txtMarketValue.Text);
        strPicturePath = editor.txtPicturePath.Text;

        // Get a reference to the root element
        XmlElement elmRoot = docProperties.DocumentElement;
        // Create a node named Property
        XmlElement elmProperty = docProperties.CreateElement("Property");

        // Create an attribute for the Propety node
        elmProperty.SetAttribute("Code", PropertyCode);

        // Create an attribute for the Propety node
        elmProperty.SetAttribute("Status", SaleStatus);
        // Add it to the root element
        elmRoot.AppendChild(elmProperty);

        // Create a node named Property
        elmProperty = docProperties.CreateElement("DateListed");
        XmlText txtProperty = docProperties.CreateTextNode(DateListed.ToString("d"));
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);
        elmRoot.LastChild.AppendChild(elmProperty);

        // Create an attribute for the DateListed element
        XmlAttribute atrProperty = docProperties.CreateAttribute("YearBuilt");
        atrProperty.Value = YearBuilt.ToString();
        elmProperty.SetAttributeNode(atrProperty);

        // Create a node named PropertyType
        elmProperty = docProperties.CreateElement("PropertyType");
        txtProperty = docProperties.CreateTextNode(PropertyType);
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Create an attribute for the PropertyType element
        atrProperty = docProperties.CreateAttribute("Style");
        atrProperty.Value = Style;
        elmProperty.SetAttributeNode(atrProperty);

        // Create an attribute for the PropertyType element
        atrProperty = docProperties.CreateAttribute("Condition");
        atrProperty.Value = Condition;
        elmProperty.SetAttributeNode(atrProperty);

        // Create a node named Location
        elmProperty = docProperties.CreateElement("Location");
        txtProperty = docProperties.CreateTextNode(Location);
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Create some attributes for the Location element
        atrProperty = docProperties.CreateAttribute("Address");
        atrProperty.Value = Address;
        elmProperty.Attributes.Append(atrProperty);

        atrProperty = docProperties.CreateAttribute("City");
        atrProperty.Value = City;
        elmProperty.Attributes.Append(atrProperty);

        atrProperty = docProperties.CreateAttribute("State");
        atrProperty.Value = State;
        elmProperty.Attributes.Append(atrProperty);

        atrProperty = docProperties.CreateAttribute("ZIPCode");
        atrProperty.Value = ZIPCode;
        elmProperty.Attributes.Append(atrProperty);

        // Create a node named Stories
        elmProperty = docProperties.CreateElement("Stories");
        txtProperty = docProperties.CreateTextNode(Stories.ToString());
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Create a node named Bedrooms
        elmProperty = docProperties.CreateElement("Bedrooms");
        txtProperty = docProperties.CreateTextNode(Bedrooms.ToString());
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Create a node named Bathrooms
        elmProperty = docProperties.CreateElement("Bathrooms");
        txtProperty = docProperties.CreateTextNode(Bathrooms.ToString("F"));
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Create a node named MarketValue
        elmProperty = docProperties.CreateElement("MarketValue");
        txtProperty = docProperties.CreateTextNode(MarketValue.ToString("F"));
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Create a node named Description
        elmProperty = docProperties.CreateElement("Description");
        txtProperty = docProperties.CreateTextNode(Description);
        elmRoot.LastChild.AppendChild(elmProperty);
        elmRoot.LastChild.LastChild.AppendChild(txtProperty);

        // Save the XML file
        docProperties.Save(strFilename);

        if (strPicturePath.Length != 0)
        {
            // The following code gets a reference to the picture's name
            FileInfo flePicture = new FileInfo(strPicturePath);
            // Then it copies it to the directory of this business
            // It changes its name to be the same as the property code
            flePicture.CopyTo(@"C:\Altair Realtors\" +
                              PropertyCode +
                              flePicture.Extension);
        }

        ShowListing();

        if( lvwProperties.Items.Count > 0 )
            lvwProperties.Items[0].Selected = true;
    }
}

void ShowListing()
{
}

Execute the application and create a few properties
Close the form and return to your programming environment

Practical Learning: Accessing Some Attributes

Display the AltairRealtors.cs file and double-click an unoccupied area of its body

Implement the event as follows:

void ShowListing()
{
    XmlDocument docProperties = new XmlDocument();
    string strFilename = @"C:\Altair Realtors\properties.xml";

    if (File.Exists(strFilename))
    {
        lvwProperties.Items.Clear();

        docProperties.Load(strFilename);
        XmlElement elmProperty = docProperties.DocumentElement;
        XmlNodeList lstProperties = elmProperty.ChildNodes;

        int i = 1;

        foreach (XmlNode node in lstProperties)
        {
           ListViewItem lviProperty = new ListViewItem(i.ToString());

           lviProperty.SubItems.Add(node.Attributes[0].InnerText);
           lviProperty.SubItems.Add(node.FirstChild.NextSibling.InnerText);
           lviProperty.SubItems.Add(node.FirstChild.NextSibling.Attributes[1].InnerText);
           lviProperty.SubItems.Add(node.FirstChild.NextSibling.NextSibling.InnerText);
           lviProperty.SubItems.Add(node.FirstChild.NextSibling.NextSibling.NextSibling.InnerText);
           lviProperty.SubItems.Add(node.FirstChild.NextSibling.NextSibling.NextSibling.NextSibling.InnerText);
           lviProperty.SubItems.Add(node.FirstChild.NextSibling.NextSibling.NextSibling.NextSibling.NextSibling.InnerText);
           lviProperty.SubItems.Add(node.FirstChild.NextSibling.NextSibling.NextSibling.NextSibling.NextSibling.NextSibling.InnerText);
           lvwProperties.Items.Add(lviProperty);
           i++;
       }

        txtDescription.Text = lstProperties[0]["Description"].InnerText;
    }
}

private void AltairRealtor_Load(object sender, EventArgs e)
{
    ShowListing();

    if( lvwProperties.Items.Count > 0 )
        lvwProperties.Items[0].Selected = true;
}

Return to the form and double-click the list view

Implement the event as follows:

private void lvwProperties_SelectedIndexChanged(object sender, EventArgs e)
{
    if( (lvwProperties.SelectedItems.Count == 0) ||
        (lvwProperties.SelectedItems.Count > 1) )
         return;

    string strPropertyCode = lvwProperties.SelectedItems[0].SubItems[1].Text;

    // Make a list of the picture files
    string strDirectory = @"C:\Altair Realtors";
    DirectoryInfo dirProperties = new DirectoryInfo(strDirectory);
    FileInfo[] PictureFiles = dirProperties.GetFiles();

    // Look for a file that holds the same name as the item number
    foreach (FileInfo fle in PictureFiles)
    {
        // Get the name of the file without its extension
        string fwe = Path.GetFileNameWithoutExtension(fle.FullName);

        if( fwe == strPropertyCode )
            pbxProperty.Image = Image.FromFile(strDirectory +
                  "\\" + strPropertyCode + fle.Extension);
    }

    XmlDocument docProperties = new XmlDocument();
    string strFilename = @"C:\Altair Realtors\properties.xml";

    if( File.Exists(strFilename) )
    {
        docProperties.Load(strFilename);
        XmlElement elmProperty = docProperties.DocumentElement;
        XmlNodeList lstProperties = elmProperty.ChildNodes;

        foreach(XmlNode node in lstProperties)
        {
            if( node.Attributes[0].InnerText == strPropertyCode )
                txtDescription.Text = node["Description"].InnerText;
        }
    }
}

Return to the form and double-click the Close button

Implement the event as follows:

private void btnClose_Click(object sender, EventArgs e)
{
    Close();
}

Execute the application

Practical Learning: Creating Comments

Access the AltairRealtors.cs file and change it as follows:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.IO;
using System.Xml;

namespace AltairRealtors5a
{
    public partial class AltairRealtor : Form
    {
        public AltairRealtor()
        {
            InitializeComponent();
        }

        private void btnNewProperty_Click(object sender, EventArgs e)
        {
            // Get a reference to the property editor
            PropertyEditor editor = new PropertyEditor();
            // If this directory doesn't exist, create it
            string strDirectory = @"C:\Altair Realtors";
            Directory.CreateDirectory(strDirectory);
            // This is the XML file that holds the list of proeprties
            string strFilename = @"C:\Altair Realtors\properties.xml";

            Random rnd = new Random();
            editor.txtPropertyCode.Text = rnd.Next(100, 999).ToString() +
                                          "-" + rnd.Next(100, 999).ToString();
            string strPicturePath;

            if (editor.ShowDialog() == DialogResult.OK)
            {
                string PropertyCode, PropertyType, Location,
                SaleStatus, Style, Condition,
                Address, City, State, ZIPCode, Description;
                DateTime DateListed;
                int YearBuilt, Stories, Bedrooms;
                float Bathrooms;
                double MarketValue;

                // Create the values of the nodes and attributes
                PropertyCode = editor.txtPropertyCode.Text;
                SaleStatus = editor.cbxStatus.Text;
                DateListed = editor.dtpDateListed.Value;
                YearBuilt = int.Parse(editor.txtYearBuilt.Text);
                PropertyType = editor.cbxPropertyTypes.Text;
                Style = editor.cbxStyle.Text;
                Condition = editor.cbxConditions.Text;
                Location = editor.txtLocation.Text;
                Address = editor.txtAddress.Text;
                City = editor.txtCity.Text;
                State = editor.cbxStates.Text;
                ZIPCode = editor.txtZIPCode.Text;
                Stories = int.Parse(editor.txtStories.Text);
                Bedrooms = int.Parse(editor.txtBedrooms.Text);
                Bathrooms = float.Parse(editor.txtBathrooms.Text);
                Description = editor.txtDescription.Text;
                MarketValue = double.Parse(editor.txtMarketValue.Text);
                strPicturePath = editor.txtPicturePath.Text;

                // We will need a reference to the XML document
                XmlDocument docProperties = new XmlDocument();
                XmlElement elmRoot;

                // Find out if the file exists already
                // If it doesn't, then create it
                if (!File.Exists(strFilename))
                {
                    docProperties.LoadXml("<?xml version=\"1.0\" encoding=\"utf-8\"?>" +
                                          "<Listing></Listing>");

                    // Get a reference to the root element
                    elmRoot = docProperties.DocumentElement;

                    // Add a comment to it
                    string strComment = "This is code for a real estate business.\n";
                    XmlComment cmtDescription = docProperties.CreateComment(strComment);
                    docProperties.InsertBefore(cmtDescription, elmRoot);

                    // Get a reference to the root element
                    elmRoot = docProperties.DocumentElement;

                    strComment = "A property is created with the Property element.\n";
                    strComment += "\tFor each property, a random number is created.\n";
                    strComment += "\tThis number is made of two parts that each\n";
                    strComment += "\tranges from 100 to 999.\n";
                    strComment += "\tBoth parts are separated by a dash.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.AppendChild(cmtDescription);

                    strComment = "The sale status, named Status, indicates whether\n";
                    strComment += "\tthe property is currently available or has\n";
                    strComment += "\talready been sold.\n";
                    strComment += "\tThe possible values are Available and Sold.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.AppendChild(cmtDescription);

                    // Create a node named Property
                    XmlElement elmProperty = docProperties.CreateElement("Property");

                    // Create an attribute for the Propety node
                    elmProperty.SetAttribute("Code", PropertyCode);

                    // Create an attribute for the Propety node
                    elmProperty.SetAttribute("Status", SaleStatus);
                    // Add it to the root element
                    elmRoot.AppendChild(elmProperty);

                    strComment = "An element named DateListed specifies when\n";
                    strComment += "\tthe property was added to the listing\n";
                    strComment += "\tor when it entered in the market.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    strComment = "As its name suggests, the YearBuilt attribute\n";
                    strComment += "\tindicates the year the property was built.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named Property
                    elmProperty = docProperties.CreateElement("DateListed");
                    XmlText txtProperty = docProperties.CreateTextNode(DateListed.ToString("d"));
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create an attribute for the DateListed element
                    XmlAttribute atrProperty = docProperties.CreateAttribute("YearBuilt");
                    atrProperty.Value = YearBuilt.ToString();
                    elmProperty.SetAttributeNode(atrProperty);

                    strComment = "The property type must be\n";
                    strComment += "\t* Single Family: For a house that stands by itself\n";
                    strComment += "\t* Townhouse: For a full house but that is attached\n";
                    strComment += "\t\tto at least another house.\n";
                    strComment += "\t* Condominium: For a type of apartment that\n";
                    strComment += "\t\tbelongs to a building.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named PropertyType
                    elmProperty = docProperties.CreateElement("PropertyType");
                    txtProperty = docProperties.CreateTextNode(PropertyType);
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    strComment = "The style of a property indicates a type of ";
                    strComment += "\tarchitecture.\n";
                    strComment += "\tThe possible styles are Contemporary, Colonial,\n";
                    strComment += "\tVictorian, or Farmhouse.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create an attribute for the PropertyType element
                    atrProperty = docProperties.CreateAttribute("Style");
                    atrProperty.Value = Style;
                    elmProperty.SetAttributeNode(atrProperty);

                    strComment = "The Condition attribute specifies whether the\n";
                    strComment += "\tproperty can currently be presented to a customer,\n";
                    strComment += "\tor at least how it appears at the moment.\n";
                    strComment += "\tThe possible conditions are:\n";
                    strComment += "\t* Excellent: This suggests that the property has\n";
                    strComment += "\t\tlittle to no flaw\n";
                    strComment += "\t* Good: This means that the property is mostly\n";
                    strComment += "\t\tacceptable and can be presented to a potential buyer.\n";
                    strComment += "\t\tIn this case, something such as a refrigerator or\n";
                    strComment += "\t\ta dishwasher may be missing; or something such as\n";
                    strComment += "\t\tthe garbage dispenser may need to be fixed, or a\n";
                    strComment += "\t\tpiece of carpet that needs to be cleaned before the\n";
                    strComment += "\t\tproperty is actually ready for sale\n";
                    strComment += "\t* Needs Repair: This means that the property is\n";
                    strComment += "\t\tin a good selling condition.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create an attribute for the PropertyType element
                    atrProperty = docProperties.CreateAttribute("Condition");
                    atrProperty.Value = Condition;
                    elmProperty.SetAttributeNode(atrProperty);

                    strComment = "A property can be located by its address which\n";
                    strComment += "\tin most cases is made of an address, a city,\n";
                    strComment += "\ta state (US, DE, AU, NG, etc) or\n";
                    strComment += "\tprovince (CA, CM, etc), a ZIP Code (US) or\n";
                    strComment += "\tpostal code (CA, GB, BE, etc).";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    strComment = "To make it easy to locally find a property,\n";
                    strComment += "\tthe location may not be an actual\n";
                    strComment += "\tcity and usually people out of town may have a\n";
                    strComment += "\thard time finding it on a map. Nevertheless,\n";
                    strComment += "\tlocal people, the inhabitants, and those\n";
                    strComment += "\tinterested in real estate properties would\n";
                    strComment += "\tbe familiar with the place.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named Location
                    elmProperty = docProperties.CreateElement("Location");
                    txtProperty = docProperties.CreateTextNode(Location);
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create some attributes for the Location element
                    atrProperty = docProperties.CreateAttribute("Address");
                    atrProperty.Value = Address;
                    elmProperty.Attributes.Append(atrProperty);

                    atrProperty = docProperties.CreateAttribute("City");
                    atrProperty.Value = City;
                    elmProperty.Attributes.Append(atrProperty);

                    atrProperty = docProperties.CreateAttribute("State");
                    atrProperty.Value = State;
                    elmProperty.Attributes.Append(atrProperty);

                    atrProperty = docProperties.CreateAttribute("ZIPCode");
                    atrProperty.Value = ZIPCode;
                    elmProperty.Attributes.Append(atrProperty);

                    strComment = "Stories is the number\n";
                    strComment += "\tof levels (in other countries such as AU).\n";
                    strComment += "\tThis includes the basement (if any), the\n";
                    strComment += "\tfloor level, and the upper level(s), if any.\n";
                    strComment += "\tMost new constructions of single families in\n";
                    strComment += "\tUS, CA, DE, GB, and AU have three stories but you\n";
                    strComment += "\tmust check. Most condos have one story but it\n";
                    strComment += "\tis not uncommon for a condo to have 2 stories.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named Stories
                    elmProperty = docProperties.CreateElement("Stories");
                    txtProperty = docProperties.CreateTextNode(Stories.ToString());
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    strComment = "A bedroom is a clearly designated area made for\n";
                    strComment += "\tsleeping. It is easily identifiable in any\n";
                    strComment += "\tconstruction. Still, if the basement of a house\n";
                    strComment += "\tis finished, unless it is clearly made as a\n";
                    strComment += "\tbedroom, it should not be counted as such.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named Bedrooms
                    elmProperty = docProperties.CreateElement("Bedrooms");
                    txtProperty = docProperties.CreateTextNode(Bedrooms.ToString());
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    strComment = "In our real estate listing, there are two\n";
                    strComment += "\ttypes of bathrooms, full and half:\n";
                    strComment += "\t* A bathroom is counted as full if it is\n";
                    strComment += "\t\tequipped with either a shower area, a bath tub,\n";
                    strComment += "\t\tor both. In addition, it should have toilet\n";
                    strComment += "\t\tand a sink\n";
                    strComment += "\t* A bathroom is considered half if it (typically)\n";
                    strComment += "\t\thas neither a shower area nor a bath tub.\n";
                    strComment += "\t\tIn most single family and townhouses, a half bath\n";
                    strComment += "\t\tis constructed on the floor level to\n";
                    strComment += "\t\tconveniently serve the visitors who enter the house.\n";
                    strComment += "\t\tA typical half bathroom has a toilet (to\n";
                    strComment += "\t\tdo the business) and a sink to wash the hands.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named Bathrooms
                    elmProperty = docProperties.CreateElement("Bathrooms");
                    txtProperty = docProperties.CreateTextNode(Bathrooms.ToString("F"));
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    strComment = "The value of the property, also referred to as\n";
                    strComment += "\tthe market value or the listing value, can be\n";
                    strComment += "\tthe asking price for the property.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named MarketValue
                    elmProperty = docProperties.CreateElement("MarketValue");
                    txtProperty = docProperties.CreateTextNode(MarketValue.ToString("F"));
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    strComment = "The description of a property gives an overview\n";
                    strComment += "\tof what the property offers. It is\n";
                    strComment += "\tusually written with positive words that\n";
                    strComment += "\tcan entice, we mean invite :), a pontential\n";
                    strComment += "\tbuyer to feel comfortable with the idea of\n";
                    strComment += "\tacquiring the property.";
                    cmtDescription = docProperties.CreateComment(strComment);
                    elmRoot.LastChild.AppendChild(cmtDescription);

                    // Create a node named Description
                    elmProperty = docProperties.CreateElement("Description");
                    txtProperty = docProperties.CreateTextNode(Description);
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Save the XML file
                    docProperties.Save(strFilename);
                }
                else
                {
                    // Open the XML file
                    docProperties.Load(strFilename);

                    // Get a reference to the root element
                    elmRoot = docProperties.DocumentElement;
                    // Create a node named Property
                    XmlElement elmProperty = docProperties.CreateElement("Property");

                    // Create an attribute for the Propety node
                    elmProperty.SetAttribute("Code", PropertyCode);

                    // Create an attribute for the Propety node
                    elmProperty.SetAttribute("Status", SaleStatus);
                    // Add it to the root element
                    elmRoot.AppendChild(elmProperty);

                    // Create a node named Property
                    elmProperty = docProperties.CreateElement("DateListed");
                    XmlText txtProperty = docProperties.CreateTextNode(DateListed.ToString("d"));
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);
                    elmRoot.LastChild.AppendChild(elmProperty);

                    // Create an attribute for the DateListed element
                    XmlAttribute atrProperty = docProperties.CreateAttribute("YearBuilt");
                    atrProperty.Value = YearBuilt.ToString();
                    elmProperty.SetAttributeNode(atrProperty);

                    // Create a node named PropertyType
                    elmProperty = docProperties.CreateElement("PropertyType");
                    txtProperty = docProperties.CreateTextNode(PropertyType);
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create an attribute for the PropertyType element
                    atrProperty = docProperties.CreateAttribute("Style");
                    atrProperty.Value = Style;
                    elmProperty.SetAttributeNode(atrProperty);

                    // Create an attribute for the PropertyType element
                    atrProperty = docProperties.CreateAttribute("Condition");
                    atrProperty.Value = Condition;
                    elmProperty.SetAttributeNode(atrProperty);

                    // Create a node named Location
                    elmProperty = docProperties.CreateElement("Location");
                    txtProperty = docProperties.CreateTextNode(Location);
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create some attributes for the Location element
                    atrProperty = docProperties.CreateAttribute("Address");
                    atrProperty.Value = Address;
                    elmProperty.Attributes.Append(atrProperty);

                    atrProperty = docProperties.CreateAttribute("City");
                    atrProperty.Value = City;
                    elmProperty.Attributes.Append(atrProperty);

                    atrProperty = docProperties.CreateAttribute("State");
                    atrProperty.Value = State;
                    elmProperty.Attributes.Append(atrProperty);

                    atrProperty = docProperties.CreateAttribute("ZIPCode");
                    atrProperty.Value = ZIPCode;
                    elmProperty.Attributes.Append(atrProperty);

                    // Create a node named Stories
                    elmProperty = docProperties.CreateElement("Stories");
                    txtProperty = docProperties.CreateTextNode(Stories.ToString());
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create a node named Bedrooms
                    elmProperty = docProperties.CreateElement("Bedrooms");
                    txtProperty = docProperties.CreateTextNode(Bedrooms.ToString());
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create a node named Bathrooms
                    elmProperty = docProperties.CreateElement("Bathrooms");
                    txtProperty = docProperties.CreateTextNode(Bathrooms.ToString("F"));
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create a node named MarketValue
                    elmProperty = docProperties.CreateElement("MarketValue");
                    txtProperty = docProperties.CreateTextNode(MarketValue.ToString("F"));
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Create a node named Description
                    elmProperty = docProperties.CreateElement("Description");
                    txtProperty = docProperties.CreateTextNode(Description);
                    elmRoot.LastChild.AppendChild(elmProperty);
                    elmRoot.LastChild.LastChild.AppendChild(txtProperty);

                    // Save the XML file
                    docProperties.Save(strFilename);
                }

                if (strPicturePath.Length != 0)
                {
                    // The following code gets a reference to the picture's name
                    FileInfo flePicture = new FileInfo(strPicturePath);
                    // Then it copies it to the directory of this business
                    // It changes its name to be the same as the property code
                    flePicture.CopyTo(@"C:\Altair Realtors\" +
                                      PropertyCode +
                                      flePicture.Extension);
                }

                ShowListing();

                if (lvwProperties.Items.Count > 0)
                    lvwProperties.Items[0].Selected = true;
            }
        }

        void ShowListing()
        {
            XmlDocument docProperties = new XmlDocument();
            string strFilename = @"C:\Altair Realtors\properties.xml";

            if (File.Exists(strFilename))
            {
                lvwProperties.Items.Clear();

                docProperties.Load(strFilename);
                XmlElement elmProperty = docProperties.DocumentElement;

                XmlNodeList lstProperties = elmProperty.GetElementsByTagName("Property");
                XmlNodeList lstPropertyTypes = elmProperty.GetElementsByTagName("PropertyType");
                XmlNodeList lstLocations = elmProperty.GetElementsByTagName("Location");
                XmlNodeList lstStories = elmProperty.GetElementsByTagName("Stories");
                XmlNodeList lstBedrooms = elmProperty.GetElementsByTagName("Bedrooms");
                XmlNodeList lstBathrooms = elmProperty.GetElementsByTagName("Bathrooms");
                XmlNodeList lstMarketValues = elmProperty.GetElementsByTagName("MarketValue");

                for (int i = 0; i < lstProperties.Count; i++ )
                {
                    ListViewItem lviProperty = new ListViewItem((i + 1).ToString());

                    lviProperty.SubItems.Add(lstProperties[i].Attributes[0].InnerText); // Property Code
                    lviProperty.SubItems.Add(lstPropertyTypes[i].InnerText); // Property Type
                    lviProperty.SubItems.Add(lstPropertyTypes[i].Attributes[1].InnerText); // Property Condition
                    lviProperty.SubItems.Add(lstLocations[i].InnerText);
                    lviProperty.SubItems.Add(lstStories[i].InnerText);
                    lviProperty.SubItems.Add(lstBedrooms[i].InnerText);
                    lviProperty.SubItems.Add(lstBathrooms[i].InnerText);
                    lviProperty.SubItems.Add(lstMarketValues[i].InnerText);

                    lvwProperties.Items.Add(lviProperty);
                }

                txtDescription.Text = lstProperties[0]["Description"].InnerText;
            }
        }

        private void AltairRealtor_Load(object sender, EventArgs e)
        {
            ShowListing();

            if( lvwProperties.Items.Count > 0 )
                lvwProperties.Items[0].Selected = true;
        }

        private void btnClose_Click(object sender, EventArgs e)
        {
            Close();
        }

        private void lvwProperties_SelectedIndexChanged(object sender, EventArgs e)
        {
            if ((lvwProperties.SelectedItems.Count == 0) ||
                (lvwProperties.SelectedItems.Count > 1))
                return;

            string strPropertyCode = lvwProperties.SelectedItems[0].SubItems[1].Text;

            // Make a list of the picture files
            string strDirectory = @"C:\Altair Realtors";
            DirectoryInfo dirProperties = new DirectoryInfo(strDirectory);
            FileInfo[] PictureFiles = dirProperties.GetFiles();

            // Look for a file that holds the same name as the item number
            foreach (FileInfo fle in PictureFiles)
            {
                // Get the name of the file without its extension
                string fwe = Path.GetFileNameWithoutExtension(fle.FullName);

                if (fwe == strPropertyCode)
                    pbxProperty.Image = Image.FromFile(strDirectory +
                "\\" + strPropertyCode + fle.Extension);
            }

            XmlDocument docProperties = new XmlDocument();
            string strFilename = @"C:\Altair Realtors\properties.xml";

            if (File.Exists(strFilename))
            {
                docProperties.Load(strFilename);
                XmlElement elmProperty = docProperties.DocumentElement;
                XmlNodeList lstProperties = elmProperty.GetElementsByTagName("Property");

                for (int i = 0; i < lstProperties.Count; i++ )
                {
                    if (lstProperties[i].Attributes[0].InnerText == strPropertyCode)
                        txtDescription.Text = lstProperties[i]["Description"].InnerText;
                }
            }
        }
    }
}

Exercises

Altair Realtors

Create a Windows Application named AltairRealtors5a following the same steps as this lesson
Create big pictures of the properties (houses) and saved them
Configure the first form so that, if the user double-clicks the picture, another window opens and displays a bigger picture of the house or of the building
Configure the first form so that, if the user double-clicks an item, the property editor opens and displays the corresponding property. Then, if the user modifies a value in the dialog box and clicks OK, update the same property with the changed value(s)

Make the necessary changes to the application to produce an XML with the following additional elements and attributes

<Listing>
    <Property Code"000-000" Status="">
        <DateListed YearBuilt=""></DateListed>
        <PropertyType Style="" Condition=""></PropertyType>
        <Location Address="" City="" State="" ZIPCode=""></Location>
        <Stories></Stories>
        <Bedrooms UpperFloor="4" LowerFloor="0" Basement="1">5</Bedrooms>
        <Bathrooms UpperFloor="2" LowerFloor="0.5" Basement="1">3.5</Bathrooms>
        <IndoorGarage Spaces="2">true</IndoorGarage>
        <FinishedBasement Entrance="Common/Rear" FinishedType="Recreation Room/Apartment">true</FinishedBasement>
        <Description></Description>
    </Property>
</Listing>


Home	Copyright © 2010-2016, FunctionX	Home
