VCL Topics: Dialog Boxes

Introduction

A dialog box is a form with particular properties. Like a form, a dialog box is referred to as a container. It is the primary interface of user interaction with the computer. By itself, a dialog box means nothing. The controls it hosts accomplish the role of dialog between the user and the machine. Here is an example of a dialog box:

A dialog box has the following characteristics:

• It is equipped with the system Close button . As the only system button, this button allows the user to dismiss the dialog and ignore whatever the user would have done on the dialog box
• It cannot be minimized, maximized, or restored. A dialog box does not have any other system button but Close
• It is usually modal, in which case the user is not allowed to continue any other operation on the same application until the dialog box is dismissed
• It provides a way for the user to close or dismiss the dialog. Most dialog boxes have an OK and a Cancel buttons, although this depends on the application developer. When the dialog has the OK and the Cancel buttons, the OK button is configured to behave as if the user had pressed Enter. In that case, whatever the user had done would be acknowledged and transferred to the hosting dialog box, window, or application. Pressing Esc applies the same behavior as if the user had clicked Cancel.

There are two main actions you can perform on a form to qualify it as a dialog box; but normally, these are only suggestions, not rules. Based on the Microsoft Windows design and standards, to create a dialog box:

• You should set a form’s BorderStyle property to bsDialog. Setting this property automatically removes the system Minimize and Maximize buttons and preserves only the system Close button . This fulfills the first suggested design of a dialog box. If you insist on having other system buttons, you can add them using the BorderIcons property.
• The second action you should take is to provide a way for the user to close the dialog box. A dialog box should have at least one button labeled OK. This button allows the user to acknowledge the message of the dialog box and close it by clicking the button. If the user press Enter, the dialog box should also be closed as if the OK button was clicked. To fulfill this second requirement, from the Standard tab of the Component Palette, you can click the button and click the dialog box

Often the user will be presented with various options on a dialog box and may be asked to make a decision on the available controls. Most of the time, if you are creating such a dialog box, besides the OK button, it should also have a Cancel button. The OK button should be the default so that if the user presses Enter, the dialog box would be closed as if the user had clicked OK. Clicking OK or pressing Enter would indicate that, if the user had made changes on the controls of the dialog box, those changes would be acknowledged and kept when the dialog box is closed and usually the changed values of the control would be transferred to another dialog box or form.

The Cancel button is used to allow the user to dismiss whatever changes would have been made on the controls of the dialog box. The dialog box should also be configured so that if the user presses Esc, the dialog box would be closed as if the user had clicked Cancel.

To fulfill these rules for the OK and the Cancel buttons, the Default property of the OK button should be set to true and the Cancel property of the Cancel button should be set to true.

Besides the OK and the Cancel buttons, a dialog box can be created with additional buttons such as Finish or Help, etc. It depends on its role and the decision is made by the application developer.

There are two types of dialog boxes: modal and modeless. A Modal dialog box is one that the user must first close in order to have access to any other framed window or dialog box of the same application.

One of the scenarios in which you use a dialog box is to create an application that is centered around one. In this case, if either there is no other form or dialog box in your application or all the other forms or dialog boxes depend on this central dialog box, it must be created as modal. Such an application is referred to as dialog-based.

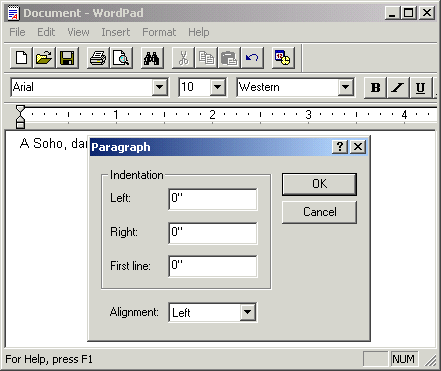

Some applications require various dialog boxes to complete their functionality. When in case, you may need to call one dialog box from another and display it as modal. Here is an example:

After creating a dialog used as an addition to an existing form or an existing dialog box, to call it as modal, use the ShowModal() method.

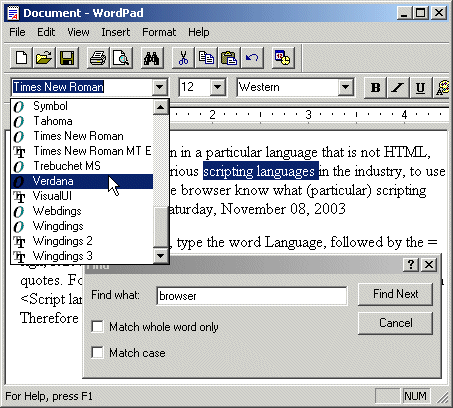

A dialog box is referred to as modeless if the user does not have to close it in order to continue using the application that owns the dialog box:

Since the modeless dialog box does not display its button on the task bar, the user should know that the dialog box is opened. To make the presence of a modeless dialog box obvious to the user, it typically displays on top of its host application until the user closes it.

Just like the Modal dialog box, to create a modeless dialog box, once you have added a form to your application, to call it as a modeless dialog box, simply call the Show() method. The only thing you need to take care of is the fact that the dialog box can disappear behind the form that called it.

The fundamental difference between the ShowModal() and the Show() methods is that the first displays a modal dialog box, which makes sure that the called dialog box cannot go in the background of the main application. By contrast, the Show() method only calls the dialog box every time it is requested. For this reason, it is your responsibility to make sure that the modeless dialog box always remains on top of the application. This is easily taken care of by setting the FormStyle property of the form to fsStayOnTop.

There are two main ways a normal modeless dialog box can be dismissed:

• If the user has finished using it, he can close it and recall it at will
• When the form or application that owns the modeless dialog box is closed, the form or application closes the modeless dialog if it is opened; this means that you do not need to find out whether a modeless dialog box is still opened when the application is being destroyed: either the user or the application itself will take care of cleaning it

To make your development experience a little faster, C++ Builder ships with a lot of dialog boxes ready for use. These dialog boxes are created as modal and are equipped with an OK and a Cancel buttons. These dialogs are available on the Dialogs property page of the New Items dialog box.

To use a C++ Builder dialog template, on the Standard toolbar, you can click the New button . In the New Items dialog box, click the Dialogs tab, select the desired template and click OK. Most dialog boxes are equipped with a bevel for aesthetic purposes and two or three buttons. The OK buttons are configured with the Default property set to true and the ModalResult property set to mrOk. The Cancel buttons have their Cancel property set to true and their ModalResult set to mrCancel. You can reposition the controls and add new ones to the form as you wish. You can add one of the template dialog boxes to your application. Alternatively, if you want to base your application on one of these templates, you can remove the default form from your application.

1. Start a new project with the default form

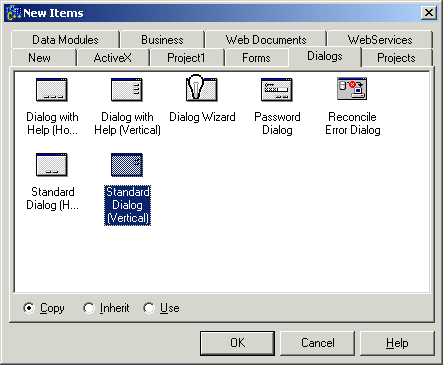

2. On the main menu, click File -> New -> Other…On the New Items dialog box, click the Dialogs tab. Click Standard Dialog (Vertical):


3. Click OK
4. Press F12 to access the Code Editor. Click Unit1.cpp to display its code
5. Once Unit1.cpp is displaying, right-click in the Code Editor and click Close Page. You will be asked whether you want to Save the changes of the Unit1 unit:


6. Click No
7. To test the dialog box, on the main menu, click Run -> Run
8. After using the application, close it and return to Bcb
