Transformation


Introduction

This example is adapted from an example from the MSDN documentation.

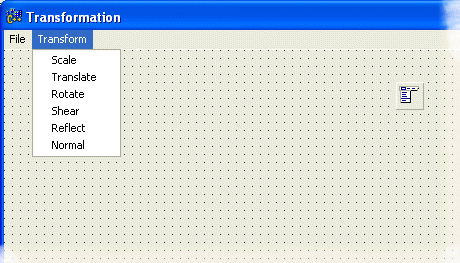

The form and its menu:



The header file:

//---------------------------------------------------------------------------

#ifndef Unit1H
#define Unit1H
//---------------------------------------------------------------------------
#include <Classes.hpp>
#include <Controls.hpp>
#include <StdCtrls.hpp>
#include <Forms.hpp>
#include <Menus.hpp>
//---------------------------------------------------------------------------
class TForm1 : public TForm
{
__published:	// IDE-managed Components
    TMainMenu *MainMenu1;
    TMenuItem *File1;
    TMenuItem *Exit1;
    TMenuItem *Transform1;
    TMenuItem *Scale1;
    TMenuItem *Translate1;
    TMenuItem *Rotate1;
    TMenuItem *Shear1;
    TMenuItem *Reflect1;
    TMenuItem *Normal1;
    void __fastcall Exit1Click(TObject *Sender);
    void __fastcall Scale1Click(TObject *Sender);
    void __fastcall Translate1Click(TObject *Sender);
    void __fastcall Rotate1Click(TObject *Sender);
    void __fastcall Shear1Click(TObject *Sender);
    void __fastcall Reflect1Click(TObject *Sender);
    void __fastcall Normal1Click(TObject *Sender);
private:
    HWND hWnd;	// User declarations
public:		// User declarations
    __fastcall TForm1(TComponent* Owner);
};
//---------------------------------------------------------------------------
extern PACKAGE TForm1 *Form1;
//---------------------------------------------------------------------------
#endif





The source file

//---------------------------------------------------------------------------
#include <vcl.h>
#pragma hdrstop

#include "Unit1.h"
//---------------------------------------------------------------------------
#pragma package(smart_init)
#pragma resource "*.dfm"
TForm1 *Form1;
enum Trans { SCALE = 0, TRANSLATE, ROTATE, SHEAR, REFLECT, NORMAL };
//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
    : TForm(Owner)
{
    hWnd = this->Handle;
}
//---------------------------------------------------------------------------
void TransformAndDraw(int iTransform, HWND hWnd)
{
    HDC hDC;
    XFORM xForm;
    RECT rect;

    // Retrieve a DC handle for the application's window.

    hDC = GetDC(hWnd);

    // Set the mapping mode to LOENGLISH. This moves the
    // client area origin from the upper left corner of the
    // window to the lower left corner (this also reorients
    // the y-axis so that drawing operations occur in a true
    // Cartesian space). It guarantees portability so that
    // the object drawn retains its dimensions on any display.

    SetGraphicsMode(hDC, GM_ADVANCED);
    SetMapMode(hDC, MM_LOENGLISH);

    // Set the appropriate world transformation (based on the
    // user's menu selection).

    switch (iTransform)
    {
        case SCALE:        // Scale to 1/2 of the original size.
            xForm.eM11 = (FLOAT) 0.5;
            xForm.eM12 = (FLOAT) 0.0;
            xForm.eM21 = (FLOAT) 0.0;
            xForm.eM22 = (FLOAT) 0.5;
            xForm.eDx  = (FLOAT) 0.0;
            xForm.eDy  = (FLOAT) 0.0;
            SetWorldTransform(hDC, &xForm);
            break;

        case TRANSLATE:   // Translate right by 3/4 inch.
            xForm.eM11 = (FLOAT) 1.0;
            xForm.eM12 = (FLOAT) 0.0;
            xForm.eM21 = (FLOAT) 0.0;
            xForm.eM22 = (FLOAT) 1.0;
            xForm.eDx  = (FLOAT) 75.0;
            xForm.eDy  = (FLOAT) 0.0;
            SetWorldTransform(hDC, &xForm);
            break;

        case ROTATE:      // Rotate 30 degrees counterclockwise.
            xForm.eM11 = (FLOAT) 0.8660;
            xForm.eM12 = (FLOAT) 0.5000;
            xForm.eM21 = (FLOAT) -0.5000;
            xForm.eM22 = (FLOAT) 0.8660;
            xForm.eDx  = (FLOAT) 0.0;
            xForm.eDy  = (FLOAT) 0.0;
            SetWorldTransform(hDC, &xForm);
            break;

        case SHEAR:       // Shear along the x-axis with a
                          // proportionality constant of 1.0.
            xForm.eM11 = (FLOAT) 1.0;
            xForm.eM12 = (FLOAT) 1.0;
            xForm.eM21 = (FLOAT) 0.0;
            xForm.eM22 = (FLOAT) 1.0;
            xForm.eDx  = (FLOAT) 0.0;
            xForm.eDy  = (FLOAT) 0.0;
            SetWorldTransform(hDC, &xForm);
            break;

        case REFLECT:     // Reflect about a horizontal axis.
            xForm.eM11 = (FLOAT) 1.0;
            xForm.eM12 = (FLOAT) 0.0;
            xForm.eM21 = (FLOAT) 0.0;
            xForm.eM22 = (FLOAT) -1.0;
            xForm.eDx  = (FLOAT) 0.0;
            xForm.eDy  = (FLOAT) 0.0;
            SetWorldTransform(hDC, &xForm);
            break;

        case NORMAL:      // Set the unity transformation.
            xForm.eM11 = (FLOAT) 1.0;
            xForm.eM12 = (FLOAT) 0.0;
            xForm.eM21 = (FLOAT) 0.0;
            xForm.eM22 = (FLOAT) 1.0;
            xForm.eDx  = (FLOAT) 0.0;
            xForm.eDy  = (FLOAT) 0.0;
            SetWorldTransform(hDC, &xForm);
            break;

    }

    // Find the midpoint of the client area.

    GetClientRect(hWnd, (LPRECT) &rect);
    DPtoLP(hDC, (LPPOINT) &rect, 2);

    // Select a hollow brush.

    SelectObject(hDC, GetStockObject(HOLLOW_BRUSH));

    // Draw the exterior circle.

    Ellipse(hDC, (rect.right / 2 - 100), (rect.bottom / 2 + 100),
        (rect.right / 2 + 100), (rect.bottom / 2 - 100));

    // Draw the interior circle.

    Ellipse(hDC, (rect.right / 2 -94), (rect.bottom / 2 + 94),
        (rect.right / 2 + 94), (rect.bottom / 2 - 94));

    // Draw the key.

    Rectangle(hDC, (rect.right / 2 - 13), (rect.bottom / 2 + 113),
        (rect.right / 2 + 13), (rect.bottom / 2 + 50));
    Rectangle(hDC, (rect.right / 2 - 13), (rect.bottom / 2 + 96),
        (rect.right / 2 + 13), (rect.bottom / 2 + 50));

    // Draw the horizontal lines.

    MoveToEx(hDC, (rect.right/2 - 150), (rect.bottom / 2 + 0), NULL);
    LineTo(hDC, (rect.right / 2 - 16), (rect.bottom / 2 + 0));

    MoveToEx(hDC, (rect.right / 2 - 13), (rect.bottom / 2 + 0), NULL);
    LineTo(hDC, (rect.right / 2 + 13), (rect.bottom / 2 + 0));

    MoveToEx(hDC, (rect.right / 2 + 16), (rect.bottom / 2 + 0), NULL);
    LineTo(hDC, (rect.right / 2 + 150), (rect.bottom / 2 + 0));

    // Draw the vertical lines.

    MoveToEx(hDC, (rect.right/2 + 0), (rect.bottom / 2 - 150), NULL);
    LineTo(hDC, (rect.right / 2 + 0), (rect.bottom / 2 - 16));

    MoveToEx(hDC, (rect.right / 2 + 0), (rect.bottom / 2 - 13), NULL);
    LineTo(hDC, (rect.right / 2 + 0), (rect.bottom / 2 + 13));

    MoveToEx(hDC, (rect.right / 2 + 0), (rect.bottom / 2 + 16), NULL);
    LineTo(hDC, (rect.right / 2 + 0), (rect.bottom / 2 + 150));

    ReleaseDC(hWnd, hDC);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::Exit1Click(TObject *Sender)
{
    Close();
}
//---------------------------------------------------------------------------
void __fastcall TForm1::Scale1Click(TObject *Sender)
{
    Canvas->Rectangle(0, 0, Width, Height);
    TransformAndDraw(SCALE, hWnd);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::Translate1Click(TObject *Sender)
{
    Canvas->Rectangle(0, 0, Width, Height);
    TransformAndDraw(TRANSLATE, hWnd);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::Rotate1Click(TObject *Sender)
{
    Canvas->Rectangle(0, 0, Width, Height);
    TransformAndDraw(ROTATE, hWnd);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::Shear1Click(TObject *Sender)
{
    Canvas->Rectangle(0, 0, Width, Height);
    TransformAndDraw(SHEAR, hWnd);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::Reflect1Click(TObject *Sender)
{
    Canvas->Rectangle(0, 0, Width, Height);
    TransformAndDraw(REFLECT, hWnd);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::Normal1Click(TObject *Sender)
{
    Canvas->Rectangle(0, 0, Width, Height);
    TransformAndDraw(NORMAL, hWnd);
}
//---------------------------------------------------------------------------
