Lesson 17: Characteristics of Parent Controls

Alternatively, to get access to the desktop, you can call the GetDesktopWindow() function. Its syntax is:

This function simply returns a handle to the desktop window. This handle can give some information about the desktop such as its size, etc.

Because GetDesktopWindow() is just a function, it only produces a handle to the desktop. If you want to perform other processing on the desktop, you should use the TScreen class members or you can use some of the Win32 library functions such as SystemParametersInfo().

A control is referred to as container if it can host other controls. While the desktop is the biggest container of the computer, to develop your applications, you will use your own controls that can act as parent to other controls. The VCL provides various objects that can play this role. The list includes the form, the frame, the group box, the panel, the scroll box, the control bar, the tab control, the page control, the status bar, the toolbar, the cool bar, the page scroller, the tabbed notebook, etc. The list is impressive and these parent controls are usually used for different purposes. In fact, the only real characteristic they share is their ability to host other controls.

Except for the form (and consequently the dialog box), most, if not all, of the other containers must be hosted by a form. Therefore, after starting a project or once you get a form, you can place a control container on it (the form). Once placed on a form, these parent windows can host their own controls. Therefore, to use a container, you can either position your control on the form, in which case the form would act as the parent, or you can first select one of the containers, place it on a form, and then add other controls to it.

As seen with child controls, except for the desktop window, every visual object either on the screen or in your application must be located. The location of an object depends on its parent and some other considerations.

The main object or frame of an application, which is usually the first form of a project, when it appears on the screen, is located with regards to the screen. Such a form is located on a Cartesian coordinate system whose origin is on the top-left corner of the screen. The horizontal axis moves from the left border to the right. The vertical axis moves from the top border down.

The distance from the left border of the screen to the form is the Left measurement. The distance from the top border of the screen to the top border of the form is its Top measurement.

The above illustration shows a form positioned on a monitor. The desktop acts as the parent window of the form. In the same way, if you place a control on a container, the control is located with regards to its parent, not based on the screen. As seen previously, in such case, the origin of the coordinate system is located on the top-left corner of the parent window. The distance from the left border of the parent window to the left border of the control is the control’s Left property. The distance from the top border of the parent window to the top border of the control is the control’s Top property. Here is an example in which a memo control as the child is positioned inside a panel that acts as its parent:

In the same way, an object positioned on a parent can be seen only if its dimensions are confined to the body of the parent. To manage the display of visible windows, each parent provides a section called the Client Area. For the desktop screen, the client area is the whole screen. For a form, the client area is the body of the form without the title bar. Most other containers provide their whole body as the client area:

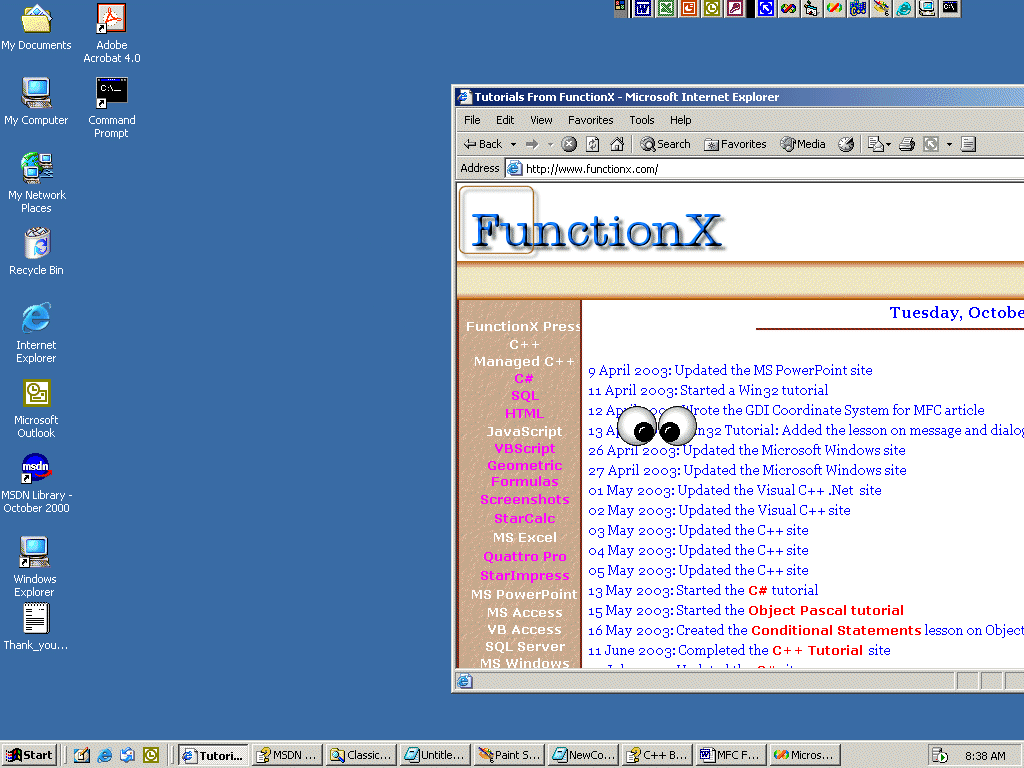

The desktop window provides a rectangular area that it can use to display the computer’s applications. This area is also used to host other objects. Although an object’s borders can span beyond the borders of the desktop, only the area of an object covered by the desktop can be seen. Here is an example of a window whose right side cannot be seen:

The client area is a rectangle primarily used for its location and dimensions. To get the values of the shape that compose the client area, you have various options and considerations. For example, to get the area that represents the desktop, which would let you know how much real estate is available for your application, you can call the TScreen::DesktopRect member variable. Here is an example:

The TScreen class also provides such aspects as the location and width of the desktop in the forms of DesktopLeft, DesktopTop, DesktopWidth, and DesktopHeight.

The DesktopRect and the DesktopHeight provide the height of the desktop including the task bar. If you want to know the actual area that is made available on the desktop, which does not include the taskbar, use the TScreen::WorkAreaRect or the TScreen::WorkAreaHeight respectively. Otherwise, you can also get the left, the top, and width measures using the WorkAreaLeft, the WorkAreaTop, and the WorkAreaWidth respectively. In reality, the WorkArea_ measures can be more useful if your application takes advantage of more than one monitor. In this case the WorkArea_ measures provide information about the desktop of the primary monitor.

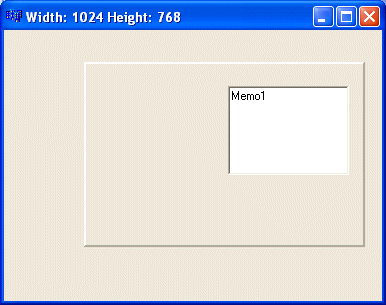

Besides the TScreen class, you can use the GetDesktopWindow() function to get a handle to the desktop and find the dimensions of that window. Here is an example that displays the screen resolution:

It is important to know where the origin of a control is located. During control design, we saw that, when a container is selected and you double-click a visual control on the Component Palette, the new control would be added to the container. On the other hand, if you have a container that is positioned on the form but the container, or any specific container, is not selected, if you double-click a control on the Component Palette, the control would be added to the form even though the new control may be positioned on a container. In this case, the form would become the parent of the new control. Therefore, in order to do anything related to the location and/or dimensions of a control, you must know the coordinate of the origin used as the basis for its location and dimensions.

Because only a parent can host some control, it holds an origin and makes it available to its children. To get the origin of a container, call the TControl::ClientOrigin property.

To get the location and dimensions of any window that serves as parent, you can call the TControl::ClientRect property. A control hosted by a container can be displayed only inside its parent, if the control’s left or top measures are negative, its left or top borders respectively would be hidden under the left or top sides of the parent. If the dimensions of the child control span beyond the dimensions of the parent window, the control’s right or bottom border will be hidden. We will see that some controls cannot allow their child or children to expand the client area and some other control can display scroll bars so the hidden parts can be navigated to.

The ClientRect property mainly provides only the width and the height of a client area since the left and the top measures are set to 0 each as the origin (0, 0) is the base. Alternatively, you can get the width of a control using the TControl::ClientWidth and you can get the height of the control using the TControl::ClientHeight properties.

Besides the Top, Left, and Position properties, you can also control the position of a control in the client area of its container using the Align property. This property and its values have the following effects:

In case of a (regular) form, the Align property controls how the form is positioned with respect to the monitor's screen. When it comes to a form, the Align property should be used only if you have a good reason. For example, to maximize a form at startup, you can set its Align property to alClient, which you can also accomplish using the WindowSate property. The default value of the Align property is alNone, which means the appearance of the form is left to other properties. We will explore the Align property when we get to the controls but remember that it is also available to the form.

The user of your application will have the ability to resize the form when using your application. If the form is not a classic dialog box, by default, the user can resize it to any dimensions allowed by the screen resolution; the minimum is to have the system buttons and just a tiny part of the caption.

You can set the minimum height, the maximum height, the minimum width, and the maximum width allowed on the control if the control gets resized. This property is controlled by the Constraints property. The Constraints property is a TSizeConstraints class, which is inherited from the TPersistent class. Although it is a class, you should never declare it. The control that uses a Constraints property will create and initialize an instance of the class. The MinWidth, MinHeight, MaxWidth, and MaxHeight are integer values you can set using the keyboard. To set the constraints of a control that has this property, click the + button of the Constraints field in the Object Inspector, click the field desired and type an integer value. To programmatically control the constraints of a control, call the TSizeConstraints::Property and type the desired value. In the following example, when the user tries to resize the Form1 form, the minimum and maximum dimensions of the form are already set and would not change:

If you position a (visual) control on a form, if the control is positioned on the top left section of the form, when the user resizes the form, the control’s position would appear static, it would not move. This could be a concern if the control is positioned on the right, the bottom or the lower right section of the form. When the user resizes the form, the control’s position would not be updated. Sometimes you will want the control to have the same location and/or distance with regard to the bottom, the right, and/or the lower right corner of the form. This ability is controlled by the Anchors property.

The anchoring of a control to its parent or host container is controlled using a set property derived from the TAnchors enumerator. By default, when you add a control to a form, it is “glued” to the top left corner of its container. Since this property is a Set, you can set the control’s position with regards to its container’s right and bottom borders. The possible values of the Anchors property are:

Value	The control’s location will not change
akTop	With regards to its parent’s top border
akLeft	With regards to its parent’s left border
akRight	With regards to its parent’s right border
akBottom	With regards to its parent’s bottom border

One of the most useful actions performed on a control consists of involving it in drag and drop operations. Some controls can serve as the source or the destination on such an operation. Drag and drop operations are performed using specific properties of child controls associated with their parents.

The DockSite property uses a Boolean value to indicate that the control can serve as the host for a drag’n’drop operation. The DragKind property specifies how the control participates in the drag’n’drop operation. If the control serves as a docking host, you should set its DragKind property to dkDock. By contrast, if the control will itself be used when dragging, set its DragKind property to dkDrag.

If a control is “draggable”, you can use the DragMode property to specify how the dragging operation on the control would be initiated. If you want the dragging operation to be possible when the user clicks the control, set its DragMode property to dmAutomatic. Otherwise, some controls, depending on the result you are trying to achieve, should be available for dragging only depending on an intermediary action. In such a case, you can write your program so that the dragging operation on a control would be available only after the application or another event or control has called the TControl::BeginDrag() method. In this case, you can set the DragMode property to dmManual.
