All of the functions we have created so far returned 0 or a single value that was one of the data types supported by Transact-SQL. A table-valued function is a function that returns a table. A multi-statement table-valued function is a function that creates a table, optionally fills it up with the desired records, and then returns the table.
To create a function that returns a table, you have various options. In the Object Explorer, expand the database that will own the function, expand the Programmability node, and expand Functions. Right-click Table-Valued Functions and click New Multi-Statement Table-Valued Function... -- ================================================ -- Template generated from Template Explorer using: -- Create Multi-Statement Function (New Menu).SQL -- -- Use the Specify Values for Template Parameters -- command (Ctrl-Shift-M) to fill in the parameter -- values below. -- -- This block of comments will not be included in -- the definition of the function. -- ================================================ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO -- ============================================= -- Author: <Author,,Name> -- Create date: <Create Date,,> -- Description: <Description,,> -- ============================================= CREATE FUNCTION <Table_Function_Name, sysname, FunctionName> ( -- Add the parameters for the function here <@param1, sysname, @p1> <data_type_for_param1, , int>, <@param2, sysname, @p2> <data_type_for_param2, , char> ) RETURNS <@Table_Variable_Name, sysname, @Table_Var> TABLE ( -- Add the column definitions for the TABLE variable here <Column_1, sysname, c1> <Data_Type_For_Column1, , int>, <Column_2, sysname, c2> <Data_Type_For_Column2, , int> ) AS BEGIN -- Fill the table variable with the rows for your result set RETURN END GO As an alternative, open a new Query window. In the Templates explorer, expand Function, drag Create Multi-Statement Function (New Menu): -- ================================================ -- Template generated from Template Explorer using: -- Create Multi-Statement Function (New Menu).SQL -- -- Use the Specify Values for Template Parameters -- command (Ctrl-Shift-M) to fill in the parameter -- values below. -- -- This block of comments will not be included in -- the definition of the function. -- ================================================ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO -- ============================================= -- Author: <Author,,Name> -- Create date: <Create Date,,> -- Description: <Description,,> -- ============================================= CREATE FUNCTION <Table_Function_Name, sysname, FunctionName> ( -- Add the parameters for the function here <@param1, sysname, @p1> <data_type_for_param1, , int>, <@param2, sysname, @p2> <data_type_for_param2, , char> ) RETURNS <@Table_Variable_Name, sysname, @Table_Var> TABLE ( -- Add the column definitions for the TABLE variable here <Column_1, sysname, c1> <Data_Type_For_Column1, , int>, <Column_2, sysname, c2> <Data_Type_For_Column2, , int> ) AS BEGIN -- Fill the table variable with the rows for your result set RETURN END GO The primary formula to create a multi-statement table-valued function is: CREATE FUNCTION FunctionName() RETURNS @TableName TABLE (Table's Columns) AS BEGIN RETURN; END; You start with the CREATE FUNCTION expression followed by a name for the function and its parentheses. As seen already, after the parentheses, type the RETURNS keyword. Since you are actually creating a table, follow the RETURNS keyword with the @ operator, followed by the desired name of the table, followed by the TABLE keyword, and its parentheses. Create the columns of the table in the parentheses. Each column is created using the formula: ColumnName DataType Options Each column follows the necessary options: name, data type, optional primary key, optional nullity, optional unique, optional check, and/or optional expression. After the parentheses that contain the columns, type AS, BEGIN, RETURN and END, preferably on different lines for better readability. Here is an example that creates a function that internally creates a table: USE Exercise; GO CREATE FUNCTION GetStates() RETURNS @States TABLE ( ShortName nchar(2), LongName nvarchar(50) ) AS BEGIN RETURN; END; GO
When creating the function, if you want to add records to the table, before the RETURN keyword, use the INSERT or INSERT INTO statement(s) as necessary. Here is an example: USE Exercise; GO CREATE FUNCTION GetStates() RETURNS @States TABLE ( ShortName nchar(2), LongName nvarchar(50) ) AS BEGIN INSERT INTO @States VALUES(N'DC', N'District of Columbia'), (N'MD', N'Maryland'), (N'PA', N'Pennsylvania'), (N'VA', N'Virginia'), (N'WV', N'West Virginia'); RETURN; END; GO

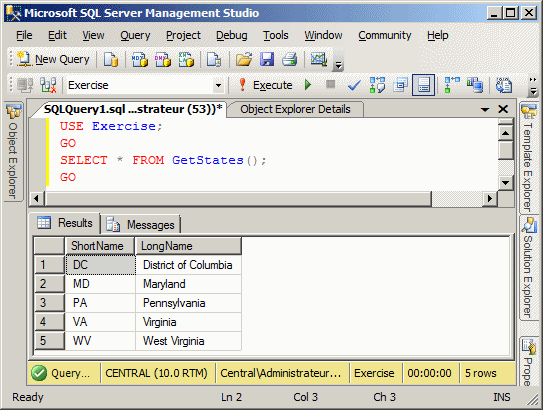

After creating a multi-statement table-valued function, it is represented in the Table-Valued Functions node of the Object Explorer. To call the function, use a SELECT statement. To indicate that you want all records of the table, you can use the * operator. Here is an example: USE Exercise; GO SELECT * FROM GetStates(); GO This would produce:

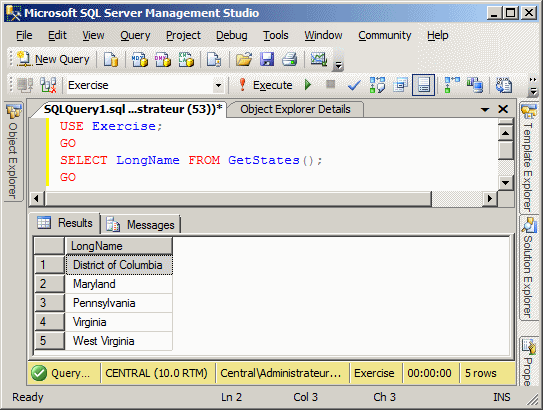

A multi-statement table-valued function is a type of table. It simply makes it easy to access the records of a table with one call. Because it is a table-type, you can access one, some, or all of its fields. To specify the fields you want to get, create a SELECT statement that holds the list of columns. Here is an example: USE Exercise; GO SELECT LongName FROM GetStates(); GO This would produce:
Of course you can also set conditions that the SELECT statement must follow. In the same way, you can include any of the statements we have already seen, or that we will see in other lessons, in the creation or call of an inline table-valued function.
In its formula, we saw that a table-valued function had parentheses. In the parentheses, you can specify one or more arguments. Each argument is in the form of @, followed by a name, and a data type. Here is an example: USE Exercise;
GO
CREATE FUNCTION GetStates(@IdentifyRegion nvarchar(40))
RETURNS @States TABLE
(
RegionName nvarchar(40),
ShortName nchar(2),
LongName nvarchar(50)
)
AS
BEGIN
INSERT INTO @States VALUES(N'New England', N'CT', N'Connecticut'),
(N'New England', N'ME', N'Maine'),
(N'South Atlantic', N'DC', N'District of Columbia'),
(N'South Atlantic', N'MD', N'Maryland'),
(N'South Atlantic', N'PA', N'Pennsylvania'),
(N'South Atlantic', N'VA', N'Virginia'),
(N'South Atlantic', N'WV', N'West Virginia');
RETURN;
END;
GO
When calling the function, you must provide a value for the argument(s). Here is an example: USE Exercise; GO DECLARE @Region nvarchar(40); SET @Region = N'South Atlantic'; SELECT ShortName, LongName, RegionName FROM GetStates(@Region) WHERE RegionName = @Region; GO The argument of the function is created using any rule you know about parameters. For example, it can be created with a default value. Here is an example: USE Exercise; GO CREATE FUNCTION GetStates(@IdentifyRegion nvarchar(40) = N'All') RETURNS @States TABLE ( RegionName nvarchar(40), ShortName nchar(2), LongName nvarchar(50) ) AS BEGIN INSERT INTO @States VALUES (N'New England', N'CT', N'Connecticut'), (N'New England', N'ME', N'Maine'), (N'New England', N'MA', N'Massachusetts'), (N'New England', N'NH', N'New Hampshire'), (N'New England', N'RI', N'Rhode Island'), (N'New England', N'VT', N'Vermont'), (N'Mid-Atlantic', N'NJ', N'New Jersey'), (N'Mid-Atlantic', N'NY', N'New York'), (N'Mid-Atlantic', N'PA', N'Pennsylvania'), (N'South Atlantic', N'DE', N'Delaware'), (N'South Atlantic', N'DC', N'District of Columbia'), (N'South Atlantic', N'FL', N'Florida'), (N'South Atlantic', N'GA', N'Georgia'), (N'South Atlantic', N'MD', N'Maryland'), (N'South Atlantic', N'PA', N'Pennsylvania'), (N'South Atlantic', N'VA', N'Virginia'), (N'South Atlantic', N'WV', N'West Virginia'), (N'All', N'AL', N'Alabama'), (N'All', N'AK', N'Alaska'), (N'All', N'AZ', N'Arizona'), (N'All', N'AR', N'Arkansas'), (N'All', N'CA', N'California'), (N'All', N'CO', N'Colorado'), (N'All', N'CT', N'Connecticut'), (N'All', N'DE', N'Delaware'), (N'All', N'DC', N'District of Columbia'), (N'All', N'FL', N'Florida'), (N'All', N'GA', N'Georgia'), (N'All', N'HI', N'Hawaii'), (N'All', N'ID', N'Idaho'), (N'All', N'IL', N'Illinois'), (N'All', N'IN', N'Indiana'), (N'All', N'IA', N'Iowa'), (N'All', N'KS', N'Kansas'), (N'All', N'KY', N'Kentucky'), (N'All', N'LA', N'Louisiana'), (N'All', N'ME', N'Maine'), (N'All', N'MD', N'Maryland'), (N'All', N'MA', N'Massachusetts'), (N'All', N'MI', N'Michigan'), (N'All', N'MN', N'Minnesota'), (N'All', N'MS', N'Mississippi'), (N'All', N'MO', N'Missouri'), (N'All', N'MT', N'Montana'), (N'All', N'NE', N'Nebraska'), (N'All', N'NV', N'Nevada'), (N'All', N'NH', N'New Hampshire'), (N'All', N'NJ', N'New Jersey'), (N'All', N'NM', N'New Mexico'), (N'All', N'NY', N'New York'), (N'All', N'NC', N'North Carolina'), (N'All', N'ND', N'North Dakota'), (N'All', N'OH', N'Ohio'), (N'All', N'OK', N'Oklahoma'), (N'All', N'OR', N'Oregon'), (N'All', N'PA', N'Pennsylvania'), (N'All', N'RI', N'Rhode Island'), (N'All', N'SC', N'South Carolina'), (N'All', N'SD', N'South Dakota'), (N'All', N'TN', N'Tennessee'), (N'All', N'TX', N'Texas'), (N'All', N'UT', N'Utah'), (N'All', N'VT', N'Vermont'), (N'All', N'VA', N'Virginia'), (N'All', N'WA', N'Washington'), (N'All', N'WV', N'West Virginia'), (N'All', N'WI', N'Wisconsin'), (N'All', N'WY', N'Wyoming'); RETURN; END; GO When calling the function, you can omit the value of the argument and type DEFAULT in its place holder: USE Exercise; GO SELECT RegionName, ShortName, LongName FROM GetStates(DEFAULT); GO Otherwise, you can call the function and pass a value of your choice.

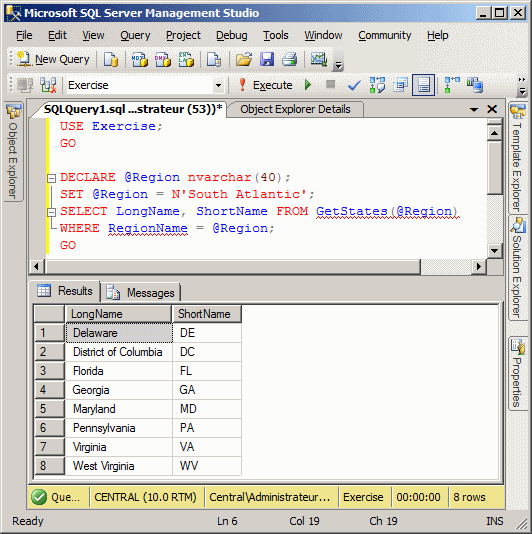

When calling a multi-statement table-valued function, you can use a condition to restrict the list of records it produces. For example, you can use a WHERE condition to control the result. Here is an example: USE Exercise; GO DECLARE @Region nvarchar(40); SET @Region = N'South Atlantic'; SELECT LongName, ShortName FROM GetStates(@Region) WHERE RegionName = @Region; GO This would produce:
In the same way, you can use CASE, LIKE, BETWEEN, etc to refine the result.
Consider the following Employees table and its records: USE Exercise; Go CREATE TABLE Employees ( EmployeeNumber nchar(10), EmployeeName nvarchar(50), DateHired date, HourlySalary money ); GO INSERT INTO Employees VALUES(N'593705', N'Frank Somah', N'20061004', 26.15), (N'720947', N'Paul Handsome', N'20000802', 36.05) GO INSERT INTO Employees(EmployeeNumber, EmployeeName, HourlySalary) VALUES(N'247903', N'Gina Palau', 18.85); GO INSERT INTO Employees VALUES(N'595002', N'John Meah', N'20000212', 32.25); GO INSERT INTO Employees(EmployeeName, EmployeeNumber, DateHired) VALUES(N'Clarice Simms', N'971403', N'20011112'); GO INSERT INTO Employees VALUES(N'928375', N'Chuck Stansil', N'20080628', 20.18), (N'792764', N'Orlando Perez', N'20000616', 12.95); GO When you want to retrieve the records held by that table, you can write a SELECT statement made of too many sections. Imagine you plan to get the records many times, over and over. Instead of creating a new SELECT statement every time, you can create a function that gives you access to the records. An inline table-valued function is a function that produces the records from a function using a SELECT statement. As opposed to an inline table-valued function, you cannot (directly) include a SELECT statement in a multi-statement table-valued function. The solution is to create the function as inline.
To create an inline table-valued function, you have various options. To have code generated for you:
Once the skeleton code has been generated for you, you can edit and customize it. The basic formula to create an inline function is: CREATE FUNCTION FunctionName(Argument(s)) RETURNS TABLE AS RETURN SELECT 0 You start with the CREATE FUNCTION expression followed by a name for the function and its arguments. If the function takes one or more arguments, enter it(them) in the parentheses. If there is no argument, leave the parentheses empty, The closing parenthesis is followed by the RETURNS TABLE expression. The TABLE keyword indicates that the function will return a list of columns and their records. This is followed by the AS and the RETURN keywords. After the RETURN keyword, if necessary, declare some variable(s) and do what you want in the body of the function. Before the end of the function, you must create a SELECT statement that returns a table-type. Here is an example: USE Exercise; GO CREATE FUNCTION GetEmployees() RETURNS TABLE AS RETURN SELECT * FROM Employees; GO
After creating an inline table-valued function, you can access its records. To call such a function, you use a SELECT statement. For example, to indicate that you want all records of the table, you can use the * operator. Here is an example: USE Exercise; GO SELECT * FROM GetEmployees(); GO This would produce:
Because an inline table-valued function is a type of table, you can access one, some, or all of its fields using a SELECT statement. Here is an example: SELECT EmployeeName, HourlySalary FROM GetEmployees(); Of course, you can also set a condition that the SELECT statement must follow. Here is an example: SELECT EmployeeNumber, EmployeeName FROM GetEmployees()
WHERE HourlySalary >= 20.00;
In the same way, you can include any of the statements we have already seen, or that we will see in other lessons, in the creation or call of an inline table-valued function.
|
|
|||||||||||||||||||||||||||||||
|
