Microsoft SQL Server - Lesson 30: Transactions

	Transactions

Transactions Fundamentals

Introduction

A transaction is an operation or a series of operations that must be performed as a group with the idea of accountability, which is to find out whether the operation(s) was(were) carried. If so, or if not so, what to do. Because of this involvement of accountability, there are rules that must be respected, and suggestions that should be followed to effectively implement the idea of a transaction.

The rules to follow are grouped under the acronym ACID:

Atomicity: If the transaction includes many operations, all of them must be carried. If at least one operation in the group fails, the whole series is dismissed
Consistency: The series of operations must be consistent
Isolation: When the operations are being performed, they must be isolated from any other operation on the same server or on the same database so it (they) would not be confused or mixed with other operations going on in the same machine or the same database
Durability: While the operations are going on, the computer keeps track of the evolution. If something makes the series of operations stop and if the computer restarts, it would remember where the operations stopped and resume. When/if the operations have been performed, they must be saved and judged complete so they can be used with no concern as to whether they completed the previous time

Practical Learning: Introducing Transactions

Use a file utility such as Windows Explorer to create a folder named Fun Department Store1 on the C:\ drive
Start the computer and log in
Launch Microsoft SQL Server and click Connect
To open a Query window, on the Standard toolbar, click the New Query button

Beginning a Transaction

Before creating a transaction, you must define the operations that will be performed. To specify the beginning of the transaction, before the first operation, type BEGIN TRAN or BEGIN TRANSACTION with the following formula:

BEGIN { TRAN | TRANSACTION }
    [ { transaction_name | @tran_name_variable }
      [ WITH MARK [ 'description' ] ]
    ]
[ ; ]

Start with either BEGIN TRAN or BEGIN TRANSACTION. After this, a transaction_name is optional. If you had previously declared a text-based variable (char, nchar, varchar, or nvarchar), and assigned the transaction name to it, you can omit the transaction_name and use the name of that variable instead. If you want the transaction to be described in a log file, type WITH MARK and provide a description that will be written to the file.

The code between the BEGIN TRAN or BEGIN TRANSACTION line is part of the transaction.

Ending a Transaction

Committing a Transaction

After defining the operations that are part of the transaction, the database engine would execute them in the sequence they are written. You must indicate where this series of transactions ends. To do this, type the COMMIT TRAN or COMMIT TRANSACTION expression:

BEGIN TRAN Name or BEGIN TRANSACTION Name
    Operations
COMMIT TRAN Name or COMMIT TRANSACTION Name

Consider the following example:

USE Exercise;
Go

CREATE TABLE Employees
(
    EmployeeNumber nchar(10),
    EmployeeName nvarchar(50),
    DateHired date,
    HourlySalary money
);
GO

INSERT INTO Employees
VALUES(N'593705', N'Frank Somah', N'20061004', 26.15),
      (N'720947', N'Paul Handsome', N'20000802', 36.05);
GO

INSERT INTO Employees(EmployeeName, EmployeeNumber, DateHired)
VALUES(N'Clarice Simms', N'971403', N'20011112');
GO

BEGIN TRANSACTION AddEmployees

INSERT INTO Employees
VALUES(N'595002', N'John Meah', N'20000212', 32.25),
      (N'928375', N'Chuck Stansil', N'20080628'),
      (N'792764', N'Orlando Perez', N'20000616', 12.95);

COMMIT TRANSACTION AddEmployees;
GO

INSERT INTO Employees(EmployeeName, EmployeeNumber,
            HourlySalary, DateHired)
VALUES(N'Gina Palau', N'247903', 18.85, N'20080612');
GO

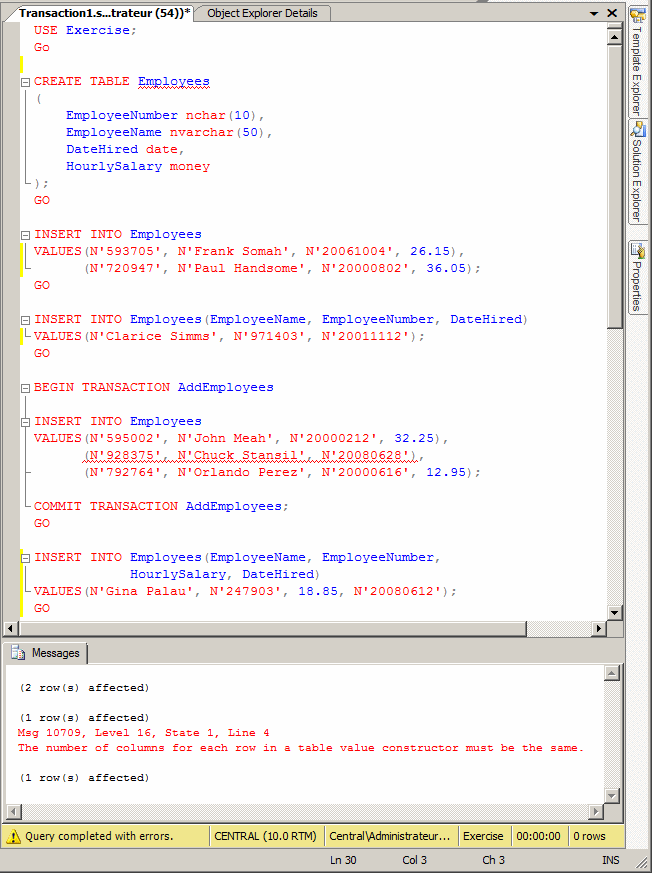

This code asks the database engine to create a table named Employees in the Exercise database. After creating the table, it must first one, followed by two records. Then it must process a transaction that consists of creating three records. After that transaction, data entry continues with the addition of a record. For illustration purposes, we included an error in the code for the transaction. The above code would produce:

Transaction

The resulting table is:

Transaction

Notice that the code where the transaction was held did not complete and its records were not created.

Practical Learning: Creating Transactions

Open the DepartmentStore1 file
Copy and paste its code in the Query window
Press F5 to execute

Rolling Back a Transaction

Consider the following code:

USE Exercise;
Go

CREATE TABLE Employees
(
    EmployeeNumber nchar(10),
    EmployeeName nvarchar(50),
    DateHired date,
    HourlySalary money
);
GO

BEGIN TRANSACTION AddEmployees

INSERT INTO Employees
VALUES(N'593705', N'Frank Somah', N'20061004', 26.15),
      (N'720947', N'Paul Handsome', N'20000802', 36.05),
      (N'595002', N'John Meah', N'20000212', 32.25);
GO
INSERT INTO Employees(EmployeeName, EmployeeNumber, DateHired)
VALUES(N'Clarice Simms', N'971403', N'20011112');
GO
INSERT INTO Employees
VALUES(N'928375', N'Chuck Stansil', N'20080628');
GO
INSERT INTO Employees
VALUES(N'792764', N'Orlando Perez', N'20000616', 12.95);
GO
INSERT INTO Employees(EmployeeName, EmployeeNumber,
            HourlySalary, DateHired)
VALUES(N'Gina Palau', N'247903', 18.85, N'20080612');
GO

COMMIT TRANSACTION AddEmployees;
GO

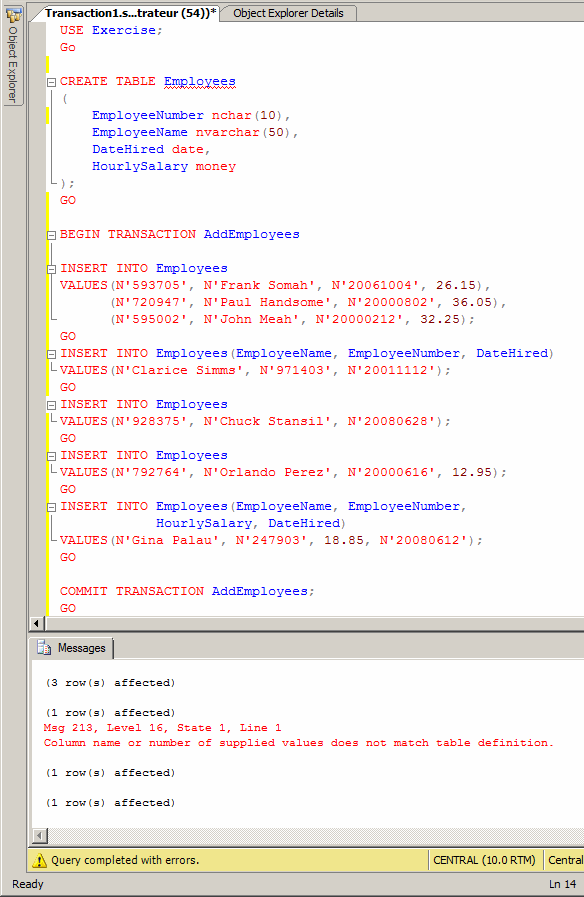

When executed, the Query window would produce:

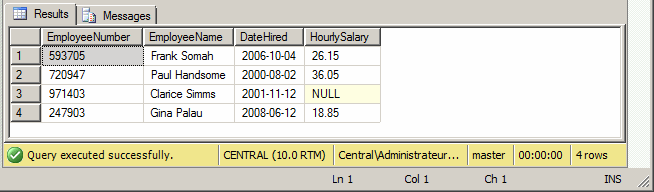

Notice that there is an error in the transaction code. The created records are:

Transaction

Notice that, despite the error, the transaction was performed and the section with error was ignored.

In some cases, to apply the rules or atomicity, you may want to dismiss the whole transaction if a section in it fails. In other words, you would want either the whole transaction to be successful or nothing. To ask the database engine to either validate the whole transaction or to dismiss it, you would ask it to roll back the (whole) transaction. To support this, instead of committing, you would use the ROLLBACK TRANSACTION expression. Its formula is:

ROLLBACK { TRAN | TRANSACTION }
     [ transaction_name | @tran_name_variable
     | savepoint_name | @savepoint_variable ]
[ ; ]

You start with a ROLLBACK TRAN or ROLLBACK TRANSACTION. If the transaction has a name, type it or the variable that holds its name. If you plan to save this operation, use the savepoint_name or the @savepoint_variable factor.

Here is an example of indicating that the transaction should be rolled back if it is not wholly successful:

USE Exercise;
Go

CREATE TABLE Employees
(
    EmployeeNumber nchar(10),
    EmployeeName nvarchar(50),
    DateHired date,
    HourlySalary money
);
GO

BEGIN TRANSACTION AddEmployees

INSERT INTO Employees
VALUES(N'593705', N'Frank Somah', N'20061004', 26.15),
      (N'720947', N'Paul Handsome', N'20000802', 36.05),
      (N'595002', N'John Meah', N'20000212', 32.25);
GO
INSERT INTO Employees(EmployeeName, EmployeeNumber, DateHired)
VALUES(N'Clarice Simms', N'971403', N'20011112');
GO
INSERT INTO Employees
VALUES(N'928375', N'Chuck Stansil', N'20080628');
GO
INSERT INTO Employees
VALUES(N'792764', N'Orlando Perez', N'20000616', 12.95);
GO
INSERT INTO Employees(EmployeeName, EmployeeNumber,
            HourlySalary, DateHired)
VALUES(N'Gina Palau', N'247903', 18.85, N'20080612');
GO

ROLLBACK TRANSACTION AddEmployees;
GO

This code starts by creating a table named Employees. After creating the table, the database engine is asked to add some records to it. The creation of records is included in a transaction with the roll back option.

Notice that there is an error inside the transaction. When the above code is executed, the table has been created because it is outside the transaction; but the resulting table is empty:

Notice that, because of an (one) error inside the transaction, the whole transaction was dismissed.

Controlling a Transaction's Isolation Level

In a database, a record is referred to as dirty if it has changed (modified) since the last time its table (or view) was opened. When creating a transaction, you can give instructions to the database engine about how to commit, or whether to dismiss, a transaction with regards to a dirty record. To support this, you start with the following formula:

SET TRANSACTION ISOLATION LEVEL
    { READ UNCOMMITTED
    | READ COMMITTED
    | REPEATABLE READ
    | SNAPSHOT
    | SERIALIZABLE
    }
[ ; ]

You start with the SET TRANSACTION ISOLATION LEVEL expression and follow it with a value:

READ UNCOMMITTED: This value asks that the database engine read the records that are dirty but were not yet committed
READ COMMITTED: This value indicates that the dirty records should not be read
REPEATABLE READ: This value indicates that the current transaction should ignore dirty records from other transactions and the other transaction don't have access to the records of this transaction
SNAPSHOT
SERIALIZABLE

Practical Learning: Ending the Lesson

Click inside the Query window and press Ctrl + A
Type the following code:
```
USE master;
GO
DROP DATABASE FunDS1;
GO
```
To execute, on the main menu, click Query -> Execute
Close the Query window
When asked whether you want to save, click No
Close Microsoft SQL Server

Exercises

Lesson Summary Questions

Which of the following is a keyword in Transact-SQL?
1. CHECKED
2. TRAN
3. LET
4. PARAMS
5. VIRTUAL
Which of the following is a keyword in Transact-SQL?
1. USING
2. LOCK
3. CARE
4. TRANSACTION
5. READONLY
Which of the following is a keyword in Transact-SQL?
1. COMMIT
2. SUBMIT
3. EXTERN
4. SIZEOF
5. UNCHECKED
Which of the following is a keyword in Transact-SQL?
1. REVERSE
2. INTERNAL
3. ROLLBACK
4. TODAY
5. UNSAFE

Answers

Answers
1. Wrong Answer
2. Right Answer
3. Wrong Answer
4. Wrong Answer
5. Wrong Answer
Answers
1. Wrong Answer
2. Wrong Answer
3. Wrong Answer
4. Right Answer
5. Wrong Answer
Answers
1. Right Answer
2. Wrong Answer
3. Wrong Answer
4. Wrong Answer
5. Wrong Answer
Answers
1. Wrong Answer
2. Wrong Answer
3. Right Answer
4. Wrong Answer
5. Wrong Answer
