In traditional Win32 programming, the spin button does not have a means of displaying its value. This means that you usually have to accompany it with another control such as a text box. You also have to decide whether to place the text box to the left or the right side of the spin button control. Although the .NET Framework's up-down controls don't have this limitation, you still have to decide whether to position the arrow buttons on the left or the right side of the text box part. This property is controlled by the UpDownAlign Boolean property whose default value is Right, which places the arrow buttons on the right side. If you want the buttons to be positioned on the left, set this property to Left. The values of this property are managed through the LeftRightAlignment enumeration of the UpDownBase parent class. Here is an example of aligning the buttons to the left:

void InitializeComponent()
{
    nudCounter = gcnew NumericUpDown;
    nudCounter->Location = Point(12, 12);
    nudCounter->UpDownAlign = LeftRightAlignment::Left;

    Controls->Add(nudCounter);
}

This would produce:

When a spin button control comes up, to use it, the user can click one of the up or down-pointing buttons, which causes the value to change. The user can also press the up or down arrow keys to change the value. The ability to use the keyboard is controlled by the InterceptArrowKeys Boolean property, whose default value is True, which means the user is allowed to use the keyboard to change the value of the control. If for some (strange) reason you want to prevent the user from changing the value using the keyboard, set this property to False. If this property is set to True, remember that the user can use the keyboard only after giving focus to the control, which is usually done by pressing Tab a few times until the control receives focus. Another way the user can change the value of the control is to manually edit the value of the text box part of the control.

When the value of an spin button has been changed, the control fires a ValueChanged() event. This event simply uses an EventArgs class as argument. If the user decides to manually edit the value of the control by typing a number in the text box part of the control, the spin button fires a TextChanged() event.

After adding the up-down control to a container such as a form, you change its characteristics using the Properties window. Probably the most important piece of information you would need from a spin button is the value it is holding at a particular time. As mentioned already, the spin button navigates from a minimum to a maximum value. The values of the control can be natural or decimal numbers. They are actually defined as System.Decimal types. These numbers range from a minimum controlled by the Minimum property to a maximum value controlled by the Maximum property. By default, a freshly added numeric up-down control on a form has its Minimum value set to 0 and its Maximum value set to 100. You can change the values at design time in the Properties window or programmatically as follows:

void InitializeComponent()
{
    nudCounter = gcnew NumericUpDown;
    nudCounter->Location = Point(12, 12);
    nudCounter->Minimum = static_cast<Decimal>(42.58);
    nudCounter->Maximum = static_cast<Decimal>(3822046.62);

    Controls->Add(nudCounter);
}

If you use large numbers in the thousands, they may become difficult to read:

When, or while, a spin button is being used, its text box displays a value: this is the Value property. You can use this property to specify what value the control would use at startup. It can be an integer or a decimal number but it must be between the Minimum and the Maximum values.

By default, the numeric up-down displays natural numbers. Alternatively, you can make the spin button display hexadecimal numbers. The type of numbers displayed is controlled by the Boolean Hexadecimal property whose default value is False, which means that it is primarily meant to display natural numbers. If you prefer the control to display hexadecimal numbers, set this property to True. Here is an example:

void InitializeComponent()
{
    nudCounter = gcnew NumericUpDown;
    nudCounter->Location = Point(12, 12);
    nudCounter->Minimum = static_cast<Decimal>(42.58);
    nudCounter->Maximum = static_cast<Decimal>(3822046.62);
    nudCounter->Hexadecimal = true;

    Controls->Add(nudCounter);
}

This would produce:

By default, the numeric up-down control is made to display only natural numbers. If you want it to display decimal numbers, use the DecimalPlaces property to specify the number of decimal places on the right side of the decimal separator which, in US English, is the period.

If you want to make the control's numeric values easier to read, you can display a symbol to separate the thousands. This characteristic can be set using the Boolean ThousandsSeparator property whose default value is False. If you want to display a symbol between thousands, set this property to True. Here is an example:

void InitializeComponent()
{
    nudCounter = gcnew NumericUpDown;
    nudCounter->Location = Point(12, 12);
    nudCounter->Minimum = static_cast<Decimal>(42.58);
    nudCounter->Maximum = static_cast<Decimal>(3822046.62);
    nudCounter->ThousandsSeparator = true;

    Controls->Add(nudCounter);
}

This causes the control to check the value used as the thousands separator in the Control Panel of the computer that is using the application. The thousands separator for US English is the comma ",". Here is an example:

When using the spin button, the user clicks one of the arrows of the control to increase or decrease the value. By default, the value increases or decreases by 1. If you want the value to augment by more than 1, set the desired value using the Increment property. The value of this property can be a natural or a decimal value (it is defined as System.Decimal). To set the Increment value programmatically, you can use code as follows:

void InitializeComponent()
{
    nudCounter = gcnew NumericUpDown;
    nudCounter->Location = Point(12, 12);
    nudCounter->Minimum = static_cast<Decimal>(42.58);
    nudCounter->Maximum = static_cast<Decimal>(3822046.62);
    nudCounter->Increment = 125;
    nudCounter->ThousandsSeparator = true;

    Controls->Add(nudCounter);
}

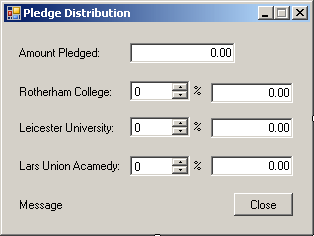

1. On the form, click the top numeric up-down control
2. In the Properties, click Value, type 50 and press Enter

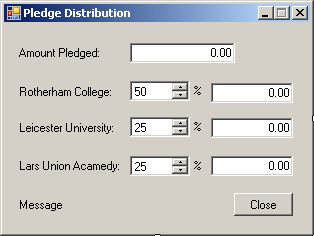

3. In the same way, change the following properties for the controls:


   Control Name Additional Properties NumericUpDown updAmount1 Value: 50 NumericUpDown updAmount2 Value: 25 NumericUpDown updAmount3 Value: 25

4. Double-click the top up-down control and implement its event as follows:


   System::Void updAmount1_ValueChanged(System::Object^  sender, System::EventArgs^  e)
   {
       double AmountPledged = 0.00;
       double RateAmount1, RateAmount2, RateAmount3,
              Amount1, Amount2, Amount3, Rest;

       // Get the current value of the amount pledged
       try
       {
           AmountPledged = double::Parse(txtAmountPledged->Text);
       }
       catch(FormatException ^)
       {
           MessageBox::Show("The amount you entered to pledge is not valid",
                       "Pledge Distribution",
                       MessageBoxButtons::OK,
                       MessageBoxIcon::Information);
       }

       // Get the percentage that is displaying in the UpDown controls other
       // than this one
       RateAmount2 = static_cast<double>(updAmount2->Value);
       RateAmount3 = static_cast<double>(updAmount3->Value);
       // To make sure that the total percentage applied on all three UpDown
       // controls is = 100, get the difference left from subtracting
       // the values of the other UpDown controls from 100
       // Use that difference as the Maximum value applied on the current
       // UpDown control
       updAmount1->Maximum = static_cast<Decimal>(100 - RateAmount2 - RateAmount3);
       // Now that we have an appropriate percentage value on the current
       // UpDown control, retrieve it
       RateAmount1 = static_cast<double>(updAmount1->Value);

       // Now we can calculate the amount to apply to each institution
       Amount1 = AmountPledged * RateAmount1 / 100;
       Amount2 = AmountPledged * RateAmount2 / 100;
       Amount3 = AmountPledged * RateAmount3 / 100;
       // We need the difference, if any, left after calculating the amount
       // pledged to each institution
       Rest = AmountPledged - Amount1 - Amount2 - Amount3;

       // Display the value allocated to each institution
       txtAmount1->Text = Amount1.ToString("C");
       txtAmount2->Text = Amount2.ToString("C");
       txtAmount3->Text = Amount3.ToString("C");

       // If there is still money left, let the user know
       if( Rest > 0)
           lblMessage->Text = Rest.ToString("C") + " still to be used";
       else
           lblMessage->Text = "";
   }

5. Return to the form
6. Double-click the middle up-down control and implement its event as follows:


   System::Void updAmount2_ValueChanged(System::Object^  sender, System::EventArgs^  e)
   {
       double AmountPledged = 0.00;
       double RateAmount1, RateAmount2, RateAmount3,
              Amount1, Amount2, Amount3, Rest;

       try
       {
           AmountPledged = double::Parse(txtAmountPledged->Text);
       }
       catch(FormatException ^)
       {
           MessageBox::Show("The amount you entered to pledge is not valid",
                       "Pledge Distribution",
                       MessageBoxButtons::OK,
                       MessageBoxIcon::Information);
       }

       RateAmount1 = static_cast<double>(updAmount1->Value);
       RateAmount3 = static_cast<double>(updAmount3->Value);
       updAmount2->Maximum = static_cast<Decimal>(100 - RateAmount1 - RateAmount3);
       RateAmount2 = static_cast<double>(updAmount2->Value);

       Amount1 = AmountPledged * RateAmount1 / 100;
       Amount2 = AmountPledged * RateAmount2 / 100;
       Amount3 = AmountPledged * RateAmount3 / 100;
       Rest = AmountPledged - Amount1 - Amount2 - Amount3;

       txtAmount1->Text = Amount1.ToString("C");
       txtAmount2->Text = Amount2.ToString("C");
       txtAmount3->Text = Amount3.ToString("C");

       if( Rest > 0)
           lblMessage->Text = Rest.ToString("C") + " still to be used";
       else
           lblMessage->Text = "";
   }

7. Return to the form
8. Double-click the bottom up-down control and implement its event as follows:


   System::Void updAmount3_ValueChanged(System::Object^  sender, System::EventArgs^  e)
   {
       double AmountPledged = 0.00;
       double RateAmount1, RateAmount2, RateAmount3,
              Amount1, Amount2, Amount3, Rest;

       try
       {
           AmountPledged = double::Parse(txtAmountPledged->Text);
       }
       catch(FormatException ^)
       {
           MessageBox::Show("The amount you entered to pledge is not valid",
                       "Pledge Distribution",
                       MessageBoxButtons::OK,
                       MessageBoxIcon::Information);
       }

       RateAmount1 = static_cast<double>(updAmount1->Value);
       RateAmount2 = static_cast<double>(updAmount2->Value);
       updAmount3->Maximum = static_cast<Decimal>(100 - RateAmount1 - RateAmount2);
       RateAmount3 = static_cast<double>(updAmount3->Value);

       Amount1 = AmountPledged * RateAmount1 / 100;
       Amount2 = AmountPledged * RateAmount2 / 100;
       Amount3 = AmountPledged * RateAmount3 / 100;
       Rest = AmountPledged - Amount1 - Amount2 - Amount3;

       txtAmount1->Text = Amount1.ToString("C");
       txtAmount2->Text = Amount2.ToString("C");
       txtAmount3->Text = Amount3.ToString("C");

       if( Rest > 0)
           lblMessage->Text = Rest.ToString("C") + " still to be used";
       else
           lblMessage->Text = "";
   }

9. Return to the form and click (once) the Amount Pledged text box
10. In the Properties window, click the Events button
11. Double-click the Leave field to generate its event and implement it as follows:


    System::Void txtAmountPledged_Leave(System::Object^  sender, System::EventArgs^  e)
    {
    	// Make sure the amount pledged text box has a number
        // If it doesn't, then display the UpDown controls
        // so the user cannot use them and cause bad events
        if( txtAmountPledged->Text == "" )
        {
            updAmount1->Enabled = false;
            updAmount2->Enabled = false;
            updAmount3->Enabled = false;
        }
        else
        {
            updAmount1->Enabled = true;
            updAmount2->Enabled = true;
            updAmount3->Enabled = true;
        }
    }

12. Return to the form
13. Double-click the Close button and implement its Click event its event as follows:


    System::Void btnClose_Click(Object ^ sender, System.EventArgs ^ e)
    {
        Close();
    }

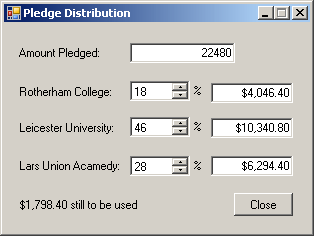

14. Test the application


15. Close the form and return to your programming environment
