	Record Navigation

Overview of Data Navigation

Introduction

From the user's point of view, data navigation consists of moving from one piece of information of a database to another. This could be done from one control to another or from one record to another. To support the various scenarios of data navigation, there are three main categories of data display the user will face. Put it another way, there are three types of scenarios you as the database developer will present to the user.

Scenarios of Data Navigation

There are three main ways you display data to the user:

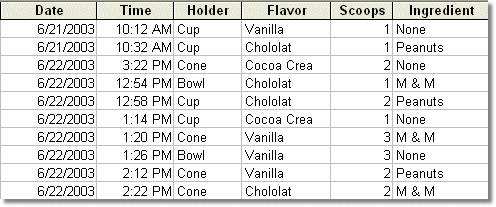

Datasheet Display: A datasheet displays its information in series of columns and rows, the intersections of which are called cells. A datasheet is meant to display as many records as possible all at once in the same view:

To navigate among cells of a datasheet, the user can click a value and click another as desired. Alternatively, the user can press Tab continuously to move from one cell to another. Some datasheet controls also allow pressing Enter to move from one cell to another. In some cases, some cells can be made to display controls such as check or combo boxes.

Windows Controls Display: While a datasheet displays its information in cells, you may prefer to use more elaborate controls to display data. This means that you can use edit boxes, list-based controls, button-based controls (such as radio buttons or check boxes), etc. Here is an example:

To navigate from one control to another, the user can click continuously. In most cases, the user can also press Tab to move among records.

An alternative to this scenario is to add a datasheet portion to the form, combined with other controls, in what is referred to as master/detail.

Record Navigation: A datasheet is meant to display all of its records or as many records as possible. The above display of various controls is used display one record at a time. When the user has finished using the record, such as during data entry, you must provide the user with a way to restart. An alternative is to allow the user to move from one record to another. Of course, this is taken care of by the datasheet. If there are many fields for each record, a datasheet may not be suitable. Therefore, you can display one record at a time in one view but allow the user to navigate to the next or the previous record. This can be done by creating appropriate menu items or by adding navigation buttons on the form. You can position such buttons in the bottom section of the form as follows:

In this case, to navigate among records, the user can click the appropriate button.

To implement any other these scenarios, you must appropriately bind the database fields and records to the desired control(s).

Datasheet Binding

Introduction

Although you will create your databases as SQL files, to provide a friendlier environment, you create forms and other graphical accessories that allow the users to access and view information. In Visual Studio, you would create a Windows application.

ADO.NET provides various ways to connect to a database, the simplest consists of using a SqlDataAdapter variable because this gives you direct access to the SQL Server database. With other techniques, or as traditionally done, you would have to create an ODBC Data Source. The Microsoft Visual Studio .NET programming environment is so close to SQL Server that you can create and manage a database as if you were using a single application to take care of this.

Practical Learning: Creating a Data Source

Start Microsoft Visual Studio .Net
From the Server Explorer window, expand the Servers node. Expand the server that has your SQL Server installation or the database you want to use. Then expand the SQL Servers node
Expand the name of the server and expand the CIC1 database that was created in the previous lesson
Right-click the Tables node and click New Table

Fill the table with the following fields:

Column Name	Data Type	Length	All Nulls
EmployeeID	int
EmployeeNo	char	6	Cleared
DateHired	smalldatetime
FirstName	varchar	20
LastName	varchar	20	Cleared
Salary	smallmoney
IsMarried	bit

Right-click EmployeeID and click Set Primary Key
While EmployeeID still has focus, in the lower part of the table, set its Identity to Yes
Save the table as Employees and close it
From Server Explorer, under the Tables node of CIC1, double-click Employees

Fill it up with the following fields:

EmployeeNo	DateHired	FirstName	LastName	Salary	IsMarried
43-957	02/14/02	Albert	Samson	16.58	1
68-205	02/14/02	Leslie	Ellison	16.24	0
14-528	02/25/02	Elias	Hawkins	14.26	0
92-253	03/02/02	Anselme	Wagner	22.05	1
68-828	05/18/02	James	Haught	24.32	1

Close the table
Start a new Windows Application named CIC2
Change the Text of the form to Clarksville Ice Cream
Set its StartPosition to CenterScreen
On the main menu, click File -> New -> File...
In the New File dialog box, click Icon File (.ico) and click Open
Design the icon as follows:
Right-click an empty area in the design section, position the mouse on Current Icon Image Types, and click 16x16, 16 colors
Design the 16x16 version of the icon as follows:
To save the icon, on the main menu, click File -> Save Icon1 As...
Set the name to cic and note where (the folder) you are saving the icon
Close the icon tab
While the form is selected, in the Properties window, click the Icon field and click its ellipsis button. Then select the above cic.ico and click Open
To add another form to the project, on the main menu, click Project -> Add Windows Form
In the Name text box, replace the string with Employees and click Open
Change its Icon to the above cic.ico and change its Text to Clarksville Ice Cream
Set its ShowInTaskbar property to False and its StartPosition to CenterScreen
From the Server Explorer, under the Tables node of CIC1, drag the Employees table and drop it on the Employees form

Introduction to Data Sets

The information stored in an object such as a database table is called a set, which is simply the group of its records. Because information is in fact referred to as data, the group of records in a table is also called a data set. To identify and manage the set of records, or data set, of a table, the Microsoft .NET Framework provides a class called DataSet.

After getting a connection to a database, you are ready to process it. You can use the data directly or, to better manage it, you can pass it to DataSet variable.

Practical Learning: Creating a Data Set

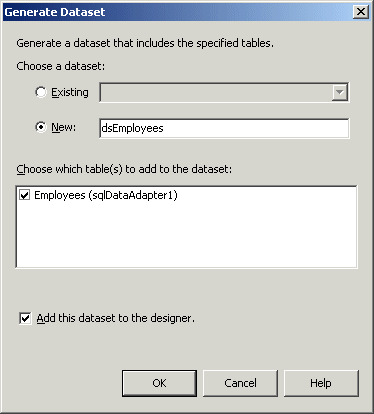

On the main menu, click Data -> Generate Dataset...
Click the text box to the right of the New radio button and change it to dsCIC
Click OK

The DataGrid Control

Data of a table is represented as a series of columns and rows. The columns are horizontal and hold the categories of information. A row contains entries various columns. The intersection of a column and a row is called a cell. The group of values stored in cells of a particular row is called a record.

To display information of a table, in the Server Explorer, you can just double-click it.

Instead of using a table to display data in cells, the Microsoft .NET Framework provides a control called DataGrid. This object also organizes its information in series of columns and rows whose intersections, called cells, hold the data of a table. To use a DataGrid, click it in the Toolbox and click the form. After doing this, you can specify that the information that displays in the cells will come from a DataSet. To do this, you can set the DataSource property of the DataGrid to the DataSet you have created. To actually display data in the DataGrid, you can call the Fill() method of the data adapter you are using.

Practical Learning: Displaying Data in a Data Grid

On the Windows Forms section of the Toolbox, click DataGrid and click the form
Position the DataGrid to the top-left corner and enlarge it

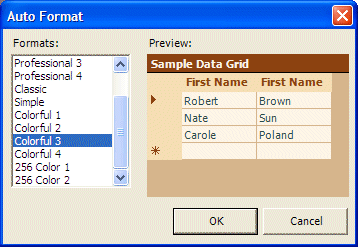

Right-click the DataGrid and click Auto Format
In the Formats list, click Colorful 3
Click OK

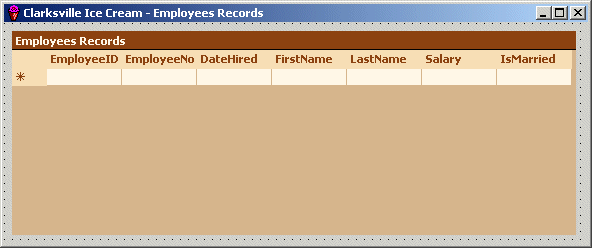

On the form, click the DataGrid to make sure it is selected. In the Properties windows, change the following properties:
CaptionText: Employees Records
DataSource: dsCompAssets1.Employees
Anchor: Top, Bottom, Left, Right
Double-click an unoccupied area of the form to generate its Load event

Implement it as follows:

private void Employees_Load(object sender, System.EventArgs e)
{
	 this.sqlDataAdapter1.Fill(this.dsEmployees1);
}

Display the first form, Form1.cs [Design]
On the Toolbox, click Button and click the top-left section of the form
Change the new button's Text to Employees and change its Name to btnEmployees

Double-click the new Employees button and implement its Click event as follows:

private void btnEmployees_Click(object sender, System.EventArgs e)
{
	Employees frmEmployees = new Employees();
	frmEmployees.ShowDialog();
}

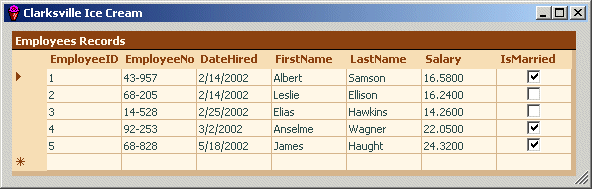

Press Ctrl + F5 to execute the application
On the first form, click the Employees button
After viewing the form, close it and close the main form

Data Navigation With Windows Controls

Introduction

Although the records of a database are stored in tables, data sheets sometimes provide unfriendly environment for data entry. Of course, to avoid using database tables that can appear boring, you can use the DataGrid control. One of the characteristics of data grids is that they display all of their record set, or at least as much as their width and height can allow. If some fields require much room, a data grid as good looking as it can be, would not be suitable. Imagine that one of the columns contains fields of text of various paragraphs. In this case, the records should be displayed one at a time.

If you want to display one record at a time on a form, you can use Windows controls and provide a means for the user to navigate back and forth in the records.

Practical Learning: Display Data in Windows Controls

To add a new form, on the main menu, click Project -> Add Windows Form...
Replace the Name of the form with Flavors and press Enter
Change its Icon to the above cic.ico and change its Text to
Clarksville Ice Cream - Flavors
Set its ShowInTaskbar property to False and its StartPosition to CenterScreen
From the Server Explorer, under the Tables node of CIC1, drag the Flavors table and drop it on the form

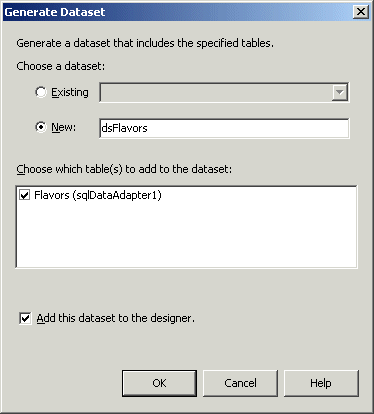

On the main menu, click Data -> Generate Dataset...
Click the New radio button and change the string to dsFlavors
Click OK

Click the Toolbox tab, click Windows Forms, and select the controls to design the form as follows:

Control	Name	DataBindings -> Text dsFlavors1 - Flavors.	Text	Other Properties
Form
Label			Flavor ID:
TextBox	txtFlavorID	FlavorID		ReadOnly: True TextAlign: Right
Label			Flavor:
TextBox	txtFlavor	Flavor
Label			Composition:
TextBox	txtComposition	Composition		Multiline: True ScrollBars: Vertical
Button	btnClose		Close
Button	btnFirst		\| <
Button	btnPrevious		<
Button	btnNext		>
Button	btnLast		> \|

Double-click an empty area on the form to access its Load event and implement it as follows:

private void Flavors_Load(object sender, System.EventArgs  e)
{
	 this.sqlDataAdapter1.Fill(this.dsFlavors1);
}

Double-click each of the buttons and implement them as follows:

private void btnClose_Click(object sender, System.EventArgs e)
{
	Close();
}

private void btnFirst_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsFlavors1, "Flavors"].Position = 0;
}

private void btnPrevious_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsFlavors1, "Flavors"].Position =
		this.BindingContext[this.dsFlavors1, "Flavors"].Position - 1;
}

private void btnNext_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsFlavors1, "Flavors"].Position =
		this.BindingContext[this.dsFlavors1, "Flavors"].Position + 1;
}

private void btnLast_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsFlavors1, "Flavors"].Position =
		this.BindingContext[this.dsFlavors1, "Flavors"].Count - 1;
}

Display the first form, Form1.cs [Design]
On the Toolbox, click Button and click under the existing Employees button of the form
Change the new button's Text to Flavors and change its Name to btnFlavors

Double-click the new Flavors button and implement its Click event as follows:

private void btnFlavors_Click(object sender, System.EventArgs e)
{
	Flavors frmFlavors = new Flavors();

	frmFlavors.ShowDialog();
}

Execute the application
On the form, click the Flavors button
Close the forms and return to your programming environment

Data Display with List-Based Controls

Besides the DataGrid, the .NET Framework provides many other controls that are list-based. These include the combo boxes, list boxes, three views, list views, etc. These controls are ready for data display so much that they is little or not code involved but they must be appropriately configured. The list-based controls are usually meant to display data from another table. For this reason, they may use a foreign key that represents a child table. This means that, as done for the master/detail scenario, you should first have a parent, then a child table and the child table must have a foreign key that represents the table of the records that would be displayed on the list-based control.

Practical Learning: Binding Data With a Combo Box

In Server Explorer, under the Tables node of CIC1, right-click Orders and click Design Table
To add a new column, right-click OrderDate and click Insert Column
Change the properties of the new column as follows:
Column Name: EmployeeID
Data Type: int
Allow Nulls: cleared
Default Value: 1
Right-click anywhere in the table and click Relationships...
In the Property Pages, click New
In the Primary Key Table combo box, select Employees
In the first combo box under it, select EmployeeID
In the combo box under Orders, select EmployeeID
Click Close and close the table
When asked whether you want to save, click Yes twice
To add a new form, on the main menu, click Project -> Add Windows Form...
Set the Name to OrderProcessing and press Enter
Change its Icon to the above App.ico and change its Text to
Clarksville Ice Cream - Order Processing
Set its StartPosition to CenterScreen

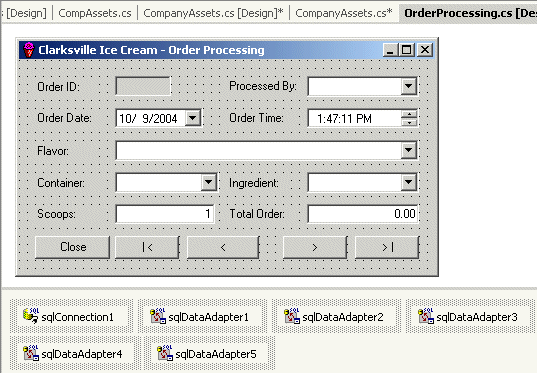

Design the form as follows:

Control	Name	Text	Additional Properties
Label		Order ID:
TextBox	txtOrderID		ReadOnly: True
Label		Processed By:
ComboBox	cboProcessedBy		DropDownStyle: DropDownList
Label		Order Date:
DateTimePicker	dtpOrderDate		Format: Short
Label		Order Time:
DateTimePicker	dtpOrderTime		Format: Time: ShowUpDown: True
Label		Flavor:
ComboBox	cboFlavor		DropDownStyle: DropDownList
Label		Container:
ComboBox	cboContainer		DropDownStyle: DropDownList
Label		Ingredient:
ComboBox	cboIngredient		DropDownStyle: DropDownList
Label		Scoops:
TextBox	txtScoops	1	TextAlign: Right
Label		Total Order:
TextBox	txtTotalOrder	0.00	TextAlign: Right
Button	btnClose	Close
Button	btnFirst	\| <
Button	btnPrevious	<
Button	btnNext	>
Button	btnLast	> \|

In Server Explorer, under the Table node, click Containers
Press and hold Ctrl
Click Employees, Flavors, Ingredients, and Orders
Release Ctrl
Click and drag the selection and drop it on the form

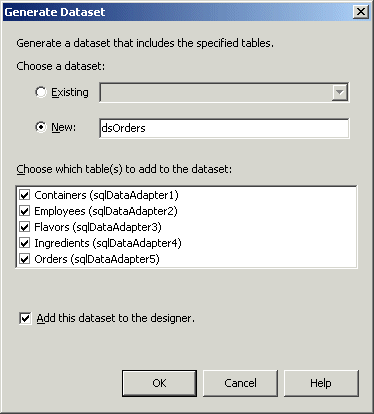

On the main menu, click Data -> Generate Dataset...
Click the New radio button and change the name to dsOrders
Click OK

On the form, click each control and, in the Properties window, bind it as follows

Control	DataBindings-> Text-> dsOrders1	DataSource	DisplayMember	ValueMember	DataBindings-> SelectedValue-> dsOrders1
txtOrderID	Orders.OrderID
cboProcessedBy		dsOrders1.Employees	LastName	EmployeeID	Orders.EmployeeID
dtpOrderDate	Orders.OrderDate
dtpOrderTime	Orders.OrderTime
cboFlavor		dsOrders1.Flavors	Flavor	FlavorID	Orders.FlavorID
cboContainer		dsOrders1.Containers	Container	ContainerID	Orders.ContainerID
cboIngredient		dsOrders1.Ingredients	Ingredient	IngredientID	Orders.IngredientID
txtScoops	Orders.Scoops

Double-click an empty area of the form and change the Load event as follows:

private void OrderProcessing_Load(object sender, System.EventArgs e)
		{
			this.sqlDataAdapter5.Fill(this.dsOrders1);
			this.sqlDataAdapter4.Fill(this.dsOrders1);
			this.sqlDataAdapter3.Fill(this.dsOrders1);
			this.sqlDataAdapter2.Fill(this.dsOrders1);
			this.sqlDataAdapter1.Fill(this.dsOrders1);
		}

Double-click the buttons and implement their events as follows:

private void btnClose_Click(object sender, System.EventArgs e)
{
	Close();
}

private void btnFirst_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsOrders1, "Orders"].Position = 0;
}

private void btnPrevious_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsOrders1, "Orders"].Position =
		this.BindingContext[this.dsOrders1, "Orders"].Position - 1;
}

private void btnNext_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsOrders1, "Orders"].Position =
		this.BindingContext[this.dsOrders1, "Orders"].Position + 1;
}

private void btnLast_Click(object sender, System.EventArgs e)
{
	this.BindingContext[this.dsOrders1, "Orders"].Position =
		this.BindingContext[this.dsOrders1, "Orders"].Count - 1;
}

Display the first form, Form1.cs [Design]
On the Toolbox, click Button and click the form
Change the new button's Text to Order Processing and change its Name to btnOrders
Add another button to the form. Change its Text to Close and its Name to btnClose
Reposition the buttons as follows:
Double-click the Order Processing and the Close buttons

Implement their Click events as follows:

private void btnOrders_Click(object sender, System.EventArgs e)
{
	OrderProcessing frmOrders = new OrderProcessing();

	frmOrders.Show();
}

private void btnClose_Click(object sender, System.EventArgs e)
{
	Close();
}

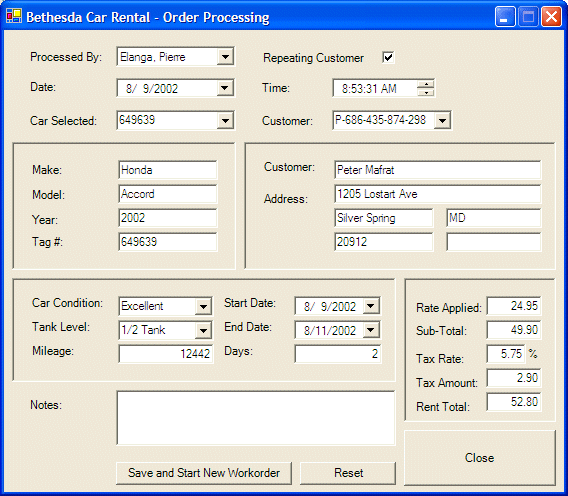

Execute the application and click the different buttons
Close the forms


Previous	Copyright © 2004-2010 FunctionX, Inc.	Next
